| Motherboard |
| Motherboard | Super X12DPT-PT6 |
| Processor (per Node) |
| CPU | Dual Socket P+ (LGA 4189) |
| 3rd Gen Intel® Xeon® Scalable processors |
| Support CPU TDP 185W * |
| Cores | Up to 32C/64T; Up to 48MB Cache |
| Note | *Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors. |
| System Memory (per Node) |
| Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices (per Node) |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X710-AT2 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| Others | M.2 2 NVME M.2 (up to 22x80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only. |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| SSM |
| SPM |
| Supermicro Out of Band (OOB) Software License Key (Included per Node) |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| ACPI/APM Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 5 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-809H-R1K05P3 |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.25" (438mm) |
| Depth | 28.25" (718mm) |
| Package | 8" (H) x 29.6" (W) x 38.4" (D) |
| Weight | Net Weight: 33.5 lbs (15.2 kg) |
| Gross Weight: 48.1 lbs (21.9 kg) |
| Available Color | Black front & sliver body |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Power status LED |
| System information (overheat/UID) LED |
| Network activity LED |
| Drive Bays / Storage (per Node) |
| Hot-swap | 4x 2.5" hot-swap SATA/SAS drive bays |
| System Cooling |
| Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Power Supply |
| Dimension (W x H x L) | 38 x 40 x 360 mm |
| AC Input | 800W: 100-127Vac / 50-60Hz |
| 1000W: 200-240Vac / 50-60Hz |
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) |
| Max: 83A / Min: 0A (200Vac-240Vac) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |

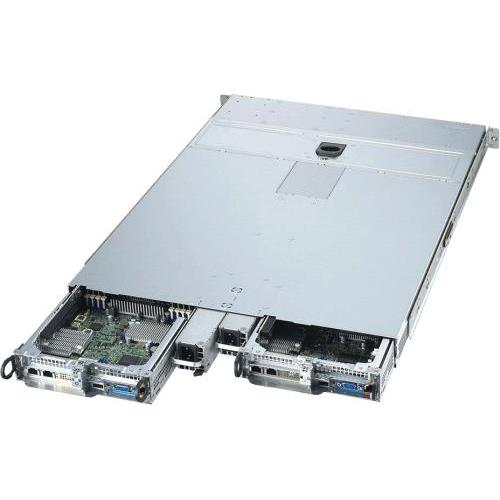

| Product SKUs | SYS-120TP-DC8TR |
| Expansion Slots (per Node) |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) |
