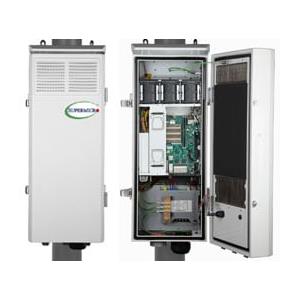

Supermicro SYS-E403-9D-16C-IPD2 Outdoor Edge System Pole-Mounted IP65 Server Embedded Intel Xeon D-2183IT Processor
• 5G Radio Access Network (RAN)
• Multi-Access Edge Computing (MEC)
• Edge AI Inferencing
• Vehicle to Everything (C-V2X/V2X)
• Virtualized Functions and Services
Barebone Pole-Mounted IP65 Server, Embedded Intel Xeon D-2183IT Processor, 2.20GHz 16-Core/32 Thread. Up to 512GB in 4 DIMM slots, L/RDIMM, System on Chip (SoC), On-Board: SATA3 (6Gbps) ports via SoC controller, 4x Internal 2.5in drive bays, 4x 10G SFP+ LAN ports, 9x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port 600W Power Supply - (SYS-E403-9D-16C-IPD2 + X11SDW-16C-TP13F+)
1. IP65 enclosure for harsh outdoor environments
2. GR-3108-CORE / GR-487-CORE compliant
3. Operating Temperature -40°C ~ 46°C + Solar load (-40°F ~ 114.8°F + Solar load)
4. High-efficiency heat exchanger and 300W heater
5. Cabinet intrusion detection and self-diagnosis
6. Intel® Xeon® D-2183IT processor, 16 cores, 32 threads, 2.2 GHz, CPU TDP support 100W
7. Fan redundancy: 3x 80x80mm PWM fans
8. Supports dual power input
Extra Specifications for Supermicro SYS-E403-9D-16C-IPD2 Outdoor Edge System Pole-Mounted IP65 Server Embedded Intel Xeon D-2183IT Processor
| Motherboard | ||
| Motherboard | Super X11SDW-16C-TP13F+ | |
| Processor | ||
| CPU | Intel® Xeon® processor D-2183IT , CPU TDP support 100W | |
| Cores / Cache | 16 cores, 32 threads | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| Up to 256GB DDR4 ECC RDIMM | ||
| 4 DIMM slots | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM | |
| Operating speed up to 2400MHz | ||
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | 4x 10G SFP+ LAN via SoC | |
| 8x RJ45 Gigabit Ethernet LAN with Intel® Ethernet Controller I350-AM4 | ||
| 1x RJ45 Gigabit Ethernet with Intel I210 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | VGA via Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports, SSD only; RAID 0, 1, 5, 10 | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 9 RJ45 Gigabit Ethernet LAN ports | ||
| 4 10G SFP+ LAN ports | ||
| USB | 2 USB 3.0 ports (front) | |
| 2 USB 2.0 ports (front) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM via RJ45 | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Chassis | ||
| Form Factor | IP65 Enclosure | |
| Model | CSE-B403-IP65 | |
| Dimensions and Weight | ||
| Height | 32.31" (821mm) | |
| Width | 12.56" (319mm) | |
| Depth | 10.16" (258mm) | |
| Weight | Gross Weight: 157 lbs (71.21 kg) | |
| Net Weight: 101.5 lbs (46.04 kg) | ||
| Available Colors | White | |
| Front Panel | ||
| LEDs | Thermal Sensor LED | |
| Server Power LED | ||
| Heater Power LED | ||
| Main Power LED | ||
| Fan LED | ||
| Cabinet Intrusion LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (FH3/4L) slots or 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots | |
| M.2 | 1 M.2 M-Key , 2280/22110 | |
| 1 M.2 E-Key , 2230 | ||
| 1 M.2 B-Key , 3042 | ||
| Drive Bays | ||
| Internal | 4 Internal 2.5" drive bays | |
| System Cooling | ||
| Fans | 3x 80x80mm PWM redundant fans | |
| Power | ||
| Total Power | 900W -44 Vdc to -59 Vdc, support dual power input | |
| Server Power | 600W Short depth DC48V input Redundant Power Supplies | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: -40°C ~ 46°C + Solar load (-40°F ~ 114.8°F + Solar load) | ||
| Product SKUs | ||
| Product SKUs | SuperServer E403-9D-16C-IPD2 (White) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDW-16C-TP13F+ | 1 | Super X11SDW-16C-TP13F+ Motherboard | |
| Motherboard / Chassis | CSE-B403-IP65 | 1 | Weather resistance IP65 enclosure optimized for E403iF | |
| Add-on Card / Module | AOM-SDW-B16X2-P | 1 | AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS | |
| Cable 1 | CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS | |
| Cable 2 | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable 3 | CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Cable 4 | CBL-SAST-0641 | 4 | 45cm SATA Cable S-RA 30AWG,RoHS/REACH | |
| Cooling Fan | FAN-0201L4 | 3 | 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan | |
| Cooling Fan Accessory | MCP-320-40301-0N | 1 | Fan bracket with extension cable for 3x 8080 hot-swap,E403 | |
| Parts | MCP-260-00144-0B | 1 | 1U I/O Shield for X11SDW with EMI Gasket, Black | |
| Air Shroud | MCP-310-40302-0B | 1 | Mylar air shroud for X11SDW in CSE-E403iF, RoHS,Black | |
| Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
| Power Distributor | PDB-PT403-8824 | 1 | PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
