- Supermicro CSE-417BE2C-R1K28LPB Server Chassis 4U Rackmount

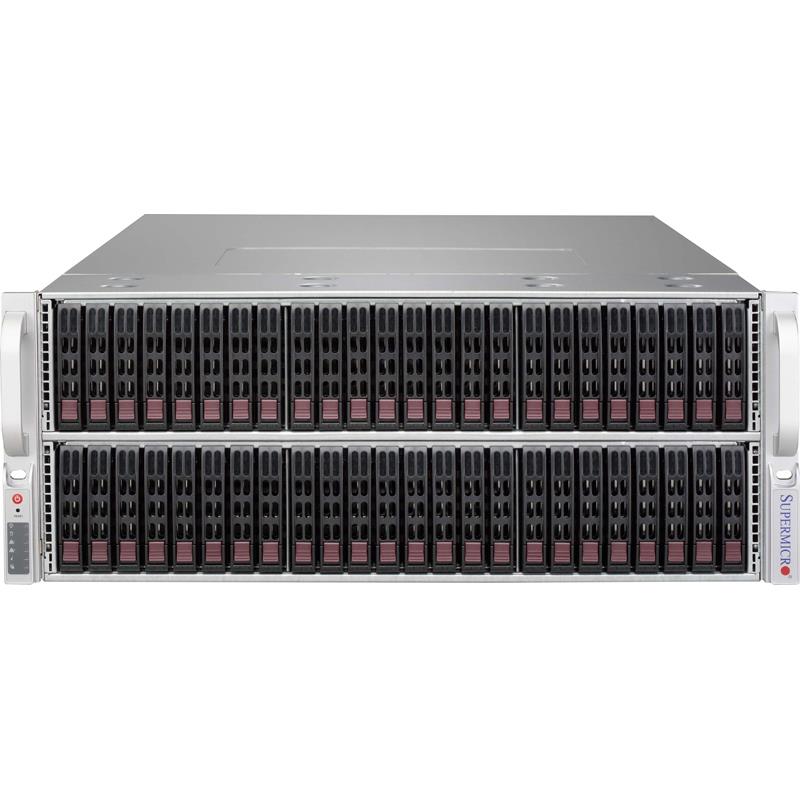

Supermicro CSE-417BE2C-R1K28LPB Server Chassis 4U Rackmount
Rackmount 4U for up to 72x 2.5in SAS / SATA Hard Drives - Supports motherboard up to 13.68in x 13in maximum size - Includes 1280W Redundant 80 Plus Platinum Ceritified Power Supplies (2x PWS-1K28P-SQ), Rails Kit (MCP-290-00057-0N), 7 low-profile expansion slot(s), 3x Backplane (3x BPN-SAS3-216EL2) - SC417BE2C-R1K28LPB 4U Chassis (Black)
1. Extremely high-density 4U storage server chassis (saves 2U space)
2. Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
3. Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring
4. E2C: SAS3 (12Gbps) dual expander backplanes
5. 1280W Platinum Level (1+1) redundant power supplies with PMBus
6. Optimized thermal solution with 100% redundant cooling design
Extra Specifications for Supermicro CSE-417BE2C-R1K28LPB Server Chassis 4U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| Unit Identification (UID) button | ||
| System Reset Button | ||
| LEDs | Power Status LED | |
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 60°C (-40°F - 140°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus | |
| Power Efficiency | 95% | |
| Total Output Power and Input | 1000W with Input 100 - 140Vac | |
| 1280W with Input 180 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 83A / Min: 0.5A (100Vac - 140Vac) | |
| Max: 106.7A / Min: 0.5A (180Vac - 240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | O/P: 12V/135 | |
| +5V Max: 100 | ||
| +3.3V Max: 30 | ||
| -12V Max: 0.6 | ||
| PDB-PT416-8824 | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 7" (178 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 27.5" (699 mm) | |
| Gross Weight | 80 lbs (36.29 kg) | |
| Packaging (W x H x L) | 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| Optional 2 x 2.5" hot-swap drive bay | ||
| 72 x 2.5" hot-swap SAS/SATA drive bay | ||
| Backplane | ||
| Backplane | 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 4 x 2.5" internal fixed drive bay | |
| Systems Cooling | ||
| Fans | 7 x 8cm hot-swap redundant PWM cooling fan(s) | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HDD Kit | MCP-220-82609-0N | $ 65.50 | 0 | Optional rear 2.5" HDD kit for 826BA/E16/E26 only | ||
| Drive Trays | MCP-220-84701-0N | $ 26.50 | 0 | Internal drive bay for one 3.5" HDD or two 2.5" HDD | ||
| Front Bezel | MCP-210-84601-0B | $ 65.00 | 0 | Front Bezel Cover, Black with Key Lock | ||
| Rail | MCP-290-00061-0N | $ 21.50 | 0 | Non-threaded rail adapter optional for round thread rack | ||
| HDD Kit | MCP-220-82616-0N | $ 89.00 | 0 | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
