| Front Panel |
| Buttons | Power On/Off button |
| Unit Identification (UID) button |
| System Reset Button |
| LEDs | Power Status LED |
| 2 Network Activity LEDs |
| HDD activity LED |
| Fan Fail/System Over Heat LED |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40°C - 60°C (-40°F - 140°F) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply |
| Certification | Platinum Certified |
| Power Supply | 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus |
| Power Efficiency | 95% |
| Total Output Power and Input | 1000W with Input 100 - 140Vac |
| 1280W with Input 180 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| -12V | Max: NAA |
| +12V | Max: 83A / Min: 0.5A (100Vac - 140Vac) |
| Max: 106.7A / Min: 0.5A (180Vac - 240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| +12Vsb | Max: NAA |
| Power Distributor | O/P: 12V/135 |
| +5V Max: 100 |
| +3.3V Max: 30 |
| -12V Max: 0.6 |
| PDB-PT416-8824 |
| Product SKUs |
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply |
| Form Factor |

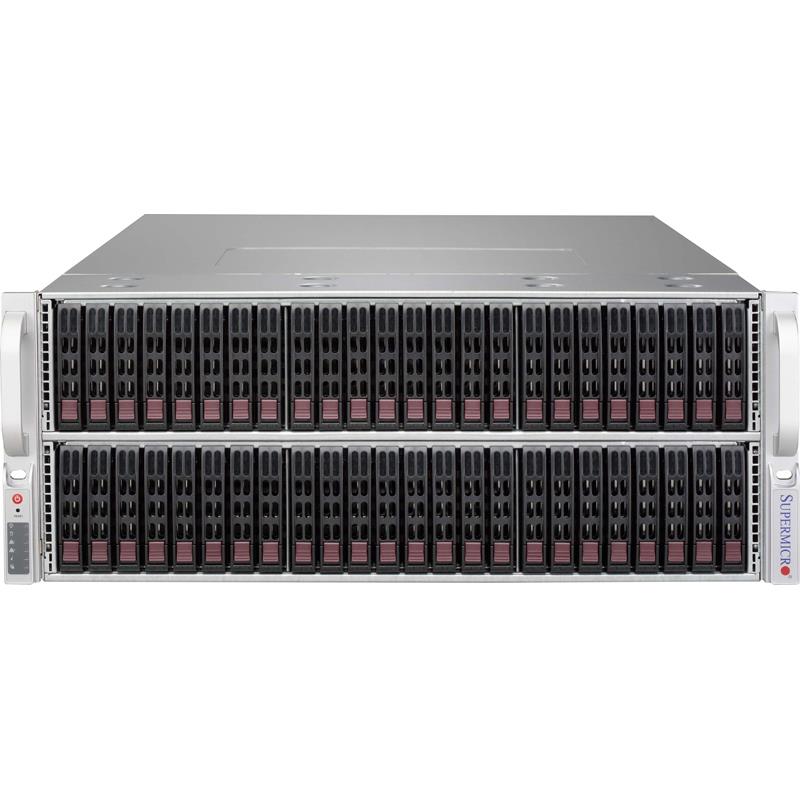

| Form Factor | 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX |
| Processor Support |
| Processor Support | Dual and Single Intel® and AMD processors |
| Dimensions |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 27.5" (699 mm) |
| Gross Weight | 80 lbs (36.29 kg) |
| Packaging (W x H x L) | 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 7 low-profile expansion slot(s) |
| Drive Bays |
| Drive Bays | SAS or enterprise SATA HDD only recommended |
| Optional 2 x 2.5" hot-swap drive bay |
| 72 x 2.5" hot-swap SAS/SATA drive bay |
| Backplane |
| Backplane | 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) |
| Peripheral Drives |
| Peripheral Drives | Optional 4 x 2.5" internal fixed drive bay |
| Systems Cooling |
| Fans | 7 x 8cm hot-swap redundant PWM cooling fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| TUV/CB |
| UL/CUL |
| FCC class B |
