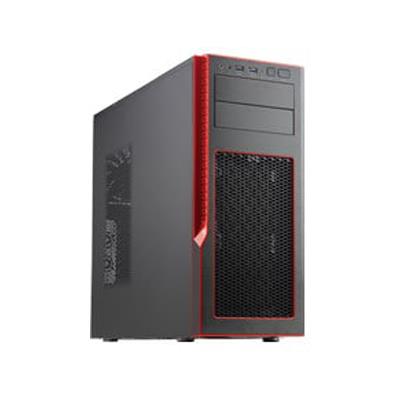

Supermicro SYS-5039AD-T Gaming PC Mid-Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
• Gaming, Digital Imaging
• Entry-Level Workstation
• Simulation and Creation Design
Barebone Mid-Tower, Supports Single Socket H4 (LGA 1151), Supporting Intel 7th/6th Generation Core i7/i5/i3 Series Processors, CPU TDP support up to 115W TDP, Intel Z170 Express Chipset, Up to 64GB in 4 DIMM slots, UDIMM, On-Board: Controller SATA3 via PCH w/ RAID 0,1,5,10, 4x 2.5in Drive Bays, and 6x Combination Bays That Can House Either 3.5in or 2.5in Drives, 2x 5.25in Peripheral Drive Bays, 1x RJ45 Gigabit Ethernet LAN port, 750W Power Supply - (SYS-5039AD-T + C7Z170-SQ)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
2. Intel® Z170 Express Chipset
3. Up to 64GB Non-ECC UDIMM, DDR4-3200MHz (OC), in 4 DIMM slots
4. 2 PCI-E 3.0 x16 (1 x16 or dual x8), 1 PCI-E 3.0 x16 (x4), 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x1 (in x4) slots
5. 1 PCIe M.2; PCIe x4 2260/2280/22110
6. I/O Ports: 1 GbE LAN, 2 USB 3.0 (front)
7. Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives; 2x 5.25" Peripheral Drive Bays
8. 1 DVI-D, 1 DP (Display Port), 1 HDMI
9. HD Audio 7.1 channel connector by Realtek ALC1150
10. 750W Multi-output Power Supply
Extra Specifications for Supermicro SYS-5039AD-T Gaming PC Mid-Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
| Motherboard | ||
| Motherboard | Super C7Z170-SQ | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) | |
| Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 115W TDP | ||
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots | ||
| Memory Type | Frequency up to 3200MHz (OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| Support overclocking up to 3200MHz* * Please check the operation manual for supported components | ||
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB, 1GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® Z170 Express Chipset | |
| SATA | SATA3 via PCH w/ RAID 0, 1, 5, 10 | |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Intel® i219V Controller | ||
| Audio | ALC 1150 HD Audio | |
| Input / Output | ||
| SATA | 6x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Gigabit Ethernet LAN port | |
| USB | 6x USB 3.0 ports (2 rear, 4 via headers) | |
| 6x USB 2.0 ports (2 rear, 4 via headers) | ||
| 1x USB 3.1 (10Gbps) Type C port (rear) | ||
| 1x Thunderbolt AIC header | ||
| Audio | 7.1 HD Jacks | |
| Display | 1x DVI - D, 1x DP (Display Port), 1x HDMI | |
| Serial Port / Header | 1x COM port (header) | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x4 slot | |
| 2 PCI-E 3.0 x1 (in x4) slots | ||
| 2 PCI-E 3.0 x16 (1 x16 or dual x8) slots | ||
| 1 PCI-E 3.0 x16 (x4) slot | ||
| 1 PCIe M.2 (PCIe x4 2260/2280/22110) | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| DMI (SMBIOS) 2.7 | ||
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-GS5A-753R | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7.9" (201mm) | |
| Depth | 19.4" (493mm) | |
| Package | 24.9" (H) x 14.2" (W) x 24.0" (D) | |
| Weight | Net Weight: 22.27 lbs (10.1 kg) | |
| Gross Weight: 28.22 lbs (12.8 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off Button | |
| Reset Button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| Ports | 2x USB 3.0 ports | |
| 1x Earphone, 1x Microphone port | ||
| Drive Bays | ||
| Internal HDD/SSD | 4x 2.5" drive bays, and 6x combination bays that can house either 3.5" or 2.5" drives | |
| Peripheral | 2x 5.25" Peripheral Drive Bays | |
| System Cooling | ||
| Fans | 3x 12cm PWM fans | |
| Power Supply | ||
| Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output | |
| AC Input | 100-240Vac, 50-60Hz | |
| +5V | Max: 20A & Min: 0A | |
| +12V | Max: 62A & Min: 0.1A (100Vac-240Vac) | |
| +3.3V | Max: 20A & Min: 0A | |
| +5V SB | Max: 2.5A & Min: 0A | |
| -12V | Max: 0.3A | |
| Certification | Gold Certified | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Support 3-pin fans (w/o speed control) | ||
| Total of five 4-pin fan headers supporting up to 5 fans | ||
| 5x fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| FC temperature sensing logic | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039AD-T (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-0179L | $ 17.00 | 0 | SATA CABLE 70CM FLAT S-S PBF | ||
| DVD-ROM | DVM-LITE-DVDRW24-HBT1 | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
| Heat Sink | SNK-P0051AP4 | $ 85.50 | 0 | 4U Active CPU Heat Sink | ||
| Heat Sink | SNK-P3002A | $ 152.50 | 0 | Liquid Cooling Module w/ a 3-pin Pump Connector for SYS-5038AD-I and SYS-5039AD-T |
