| Motherboard |
| Motherboard |
| Processor/Cache |

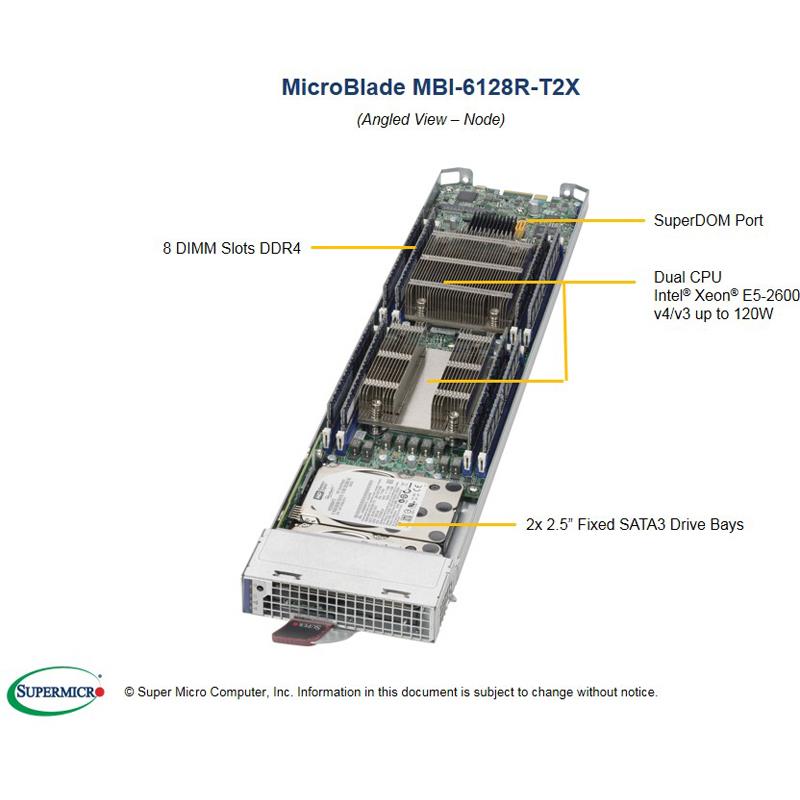

| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 120W TDP) |
| 105W TDP CPU or greater required 2000W PSU |
| Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 256GB VLP ECC RDIMM |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | VLP RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 Express chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1 |
| Input / Output |
| DOM | 1x Super DOM (Disk on Module) port |
| LAN | 2x 10GbE ports (via AOC-XEH-I2M) |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Dimensions |
| Height | 1.2" (30.48mm) |
| Width | 4.94" (125.48mm) |
| Depth | 23.2" (589.28mm) |
| Weight | Gross Weight: 5.7 lbs (2.59 kg) |
| Net Weight: 3.4 lbs (1.54 kg) |
| Available Colors | Silver Grey |
| Front Panel |
| LEDs | Power LED |
| UID / KVM LED |
| Network Activity LED |
| Fault LED |
| Drive Bays |
| Internal | 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM per node |
| Operating Environment / Compliance |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°to 35°C (50°to 95°F) |
| Non-operating Temperature: -40°to 70°C (-40°to 158°F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Electromagnetic Compatibility (EMC) |
| United States / Canada | FCC- Emissions (US) Verification |
| Europe | EN55022 - Emissions |
| EN55024 - Immunity |
| EN61000-3-2 - Harmonics |
| EN61000-3-3 - Voltage Flicker |
| CE - EMC Directive 89/336/EEC |
| Safety Compliance |
| United States / Canada | UL60950-1 - CSA/CUL 60950-1 |
| Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| Germany | TUV |
