Motherboard |
Motherboard | Super C7X99-OCE |
Processor |
CPU | Single Socket R3 (LGA 2011) |
| Intel® Core™ i7 Processor Extreme Edition and X-Series, Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family (up to 160W TDP **) |
Note | † BIOS version 2.0 or above is required |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
System Memory |
Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Supports up to 128GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 8 DIMM slots |
Memory Type | Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs |
| Support overclocking up to 3300MHz* * Please check the operation manual for supported components |
DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
Memory Voltage | 1.2V |
On-Board Devices |
Chipset | Intel® X99 Chipset |
SATA | SATA3 (6Gbps) via Intel X99 controller |
| 10x SATA3 ports: 6x iSATA (RAID 0, 1, 5, 10) and 4x sSATA |
Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i210-AT Dual Port Gigabit Ethernet |
Audio | RealTek ALC1150 High Definition Audio |
Input / Output |
SATA | 10x SATA3 (6Gbps) ports |
LAN | 2x RJ45 Gigabit Ethernet LAN ports |
USB | 8x USB 3.0 ports (6 rear + 2 via header) |
| 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only) |
Audio | 7.1 HD Jacks |
Keyboard/ Mouse | 1x PS/2 Keyboard/Mouse port |
Serial Port / Header | 1x header |
Expansion Slots |
PCI-Express | 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8) |
| 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when Intel Core i7-5820K is installed |
System BIOS |
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| Hardware BIOS Virus protection |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
Chassis |
Form Factor | Tower |
Model | CSE-GS5A-753R |
Dimensions and Weight |
Height | 18.1" (460mm) |
Width | 7.9" (201mm) |
Depth | 19.4" (493mm) |
Package | 24.9" (H) x 14.2" (W) x 24.0" (D) |
Weight | Net Weight: 22.27 lbs (10.1 kg) |
| Gross Weight: 28.22 lbs (12.8 kg) |
Available Colors | Black |
Front Panel |
Buttons | Power On/Off Button |
| Reset Button |
LEDs | Power LED |
| Hard drive activity LED |
Ports | 2x USB 3.0 ports |
| 1x Earphone, 1x Microphone port |
Drive Bays |
Internal HDD | 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives |
Peripheral | 2x 5.25" Peripheral Drive Bays |
System Cooling |
Fans | 1x 12cm rear exhaust fan |
| 2x 12cm front cooling fan |
Power Supply |
Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output |
AC Input | 100-240Vac, 50-60Hz |
+5V | Max: 20A & Min: 0A |
+12V | Max: 62A & Min: 0.1A (100Vac-240Vac) |
+3.3V | Max: 20A & Min: 0A |
+5V SB | Max: 2.5A & Min: 0A |
-12V | Max: 0.3A |
Certification | Gold Certified |
PC Health Monitoring |
CPU | 6-Phase-switching voltage regulator |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
FAN | Low noise fan speed control |
Temperature | Monitoring for CPU and chassis environment |
| PECI |
| Thermal Control for 8x fan connectors |
Operating Environment / Compliance |
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Product SKUs |

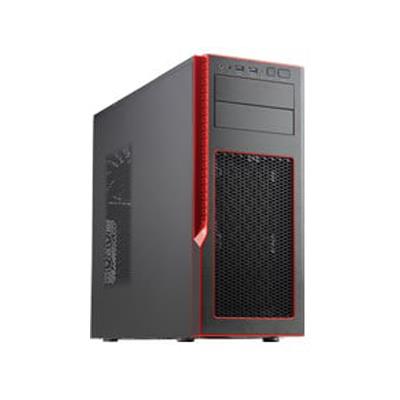

Product SKUs | SYS-5038AD-I (Black) |
