| Motherboard |
| Motherboard | Super C7X99-OCE |
| Processor |
| CPU | Single Socket R3 (LGA 2011) |
| Intel® Core™ i7 Processor Extreme Edition and X-Series, Intel® Xeon® processor E5-2600 v4/v3, E5-1600 v3 family (up to 160W TDP **) |
| Note | † BIOS version 2.0 or above is required |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Supports up to 128GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 8 DIMM slots |
| Memory Type | Frequency up to 3300MHz(OC) non-ECC DDR4 SDRAM 72-bit, 284-pin (UDIMM) gold-plated DIMMs |
| Support overclocking up to 3300MHz* * Please check the operation manual for supported components |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® X99 Chipset |
| SATA | SATA3 (6Gbps) via Intel X99 controller |
| 10x SATA3 ports: 6x iSATA (RAID 0, 1, 5, 10) and 4x sSATA |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i210-AT Dual Port Gigabit Ethernet |
| Audio | RealTek ALC1150 High Definition Audio |
| Input / Output |
| SATA | 10x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 8x USB 3.0 ports (6 rear + 2 via header) |
| 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only) |
| Audio | 7.1 HD Jacks |
| Keyboard/ Mouse | 1x PS/2 Keyboard/Mouse port |
| Serial Port / Header | 1x header |
| Expansion Slots |
| PCI-Express | 4x PCI-E 3.0 x16 slots (run at 16/16/NA/8 or 16/8/8/8) |
| 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when Intel Core i7-5820K is installed |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| Hardware BIOS Virus protection |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Chassis |
| Form Factor | Tower |
| Model | CSE-GS5A-753R |
| Dimensions and Weight |
| Height | 18.1" (460mm) |
| Width | 7.9" (201mm) |
| Depth | 19.4" (493mm) |
| Package | 24.9" (H) x 14.2" (W) x 24.0" (D) |
| Weight | Net Weight: 22.27 lbs (10.1 kg) |
| Gross Weight: 28.22 lbs (12.8 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off Button |
| Reset Button |
| LEDs | Power LED |
| Hard drive activity LED |
| Ports | 2x USB 3.0 ports |
| 1x Earphone, 1x Microphone port |
| Drive Bays |
| Internal HDD | 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives |
| Peripheral | 2x 5.25" Peripheral Drive Bays |
| System Cooling |
| Fans | 1x 12cm rear exhaust fan |
| 2x 12cm front cooling fan |
| Power Supply |
| Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output |
| AC Input | 100-240Vac, 50-60Hz |
| +5V | Max: 20A & Min: 0A |
| +12V | Max: 62A & Min: 0.1A (100Vac-240Vac) |
| +3.3V | Max: 20A & Min: 0A |
| +5V SB | Max: 2.5A & Min: 0A |
| -12V | Max: 0.3A |
| Certification | Gold Certified |
| PC Health Monitoring |
| CPU | 6-Phase-switching voltage regulator |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Low noise fan speed control |
| Temperature | Monitoring for CPU and chassis environment |
| PECI |
| Thermal Control for 8x fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

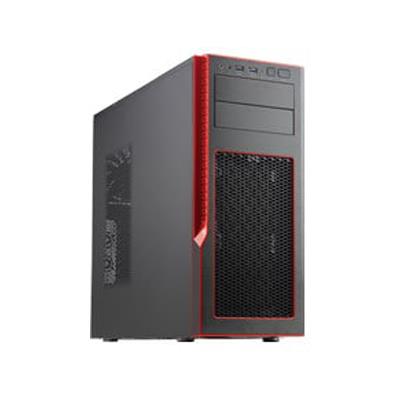

| Product SKUs | SYS-5038AD-I (Black) |
