- Supermicro SYS-5130AD-T Gaming PC Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors

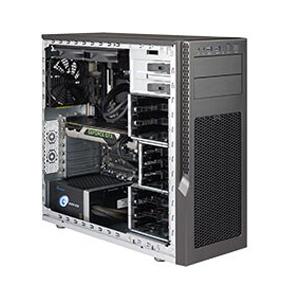

Supermicro SYS-5130AD-T Gaming PC Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
• Gaming, Digital Imaging
• Entry-Level Workstation
• Simulation and Creation Design
Barebone Tower, Supports Single Socket H4 (LGA 1151), Supporting Intel 7th/6th Generation Core i7/i5/i3 Series Processors, CPU TDP support up to 160W TDP, Intel Z270 Express Chipset, Up to 64GB in 4 DIMM slots, UDIMM, On-Board: Controller SATA3 via PCH w/ RAID 0,1,5,10, 4x 2.5in Drive Bays, and 6x Combination Bays That Can House Either 3.5in or 2.5in Drives, 2x RJ45 Gigabit Ethernet LAN ports, 750W Power Supply - (SYS-5130AD-T + C7Z270-PG)
This product is no longer available.
1. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
2. Intel® Z270 Express Chipset
3. Up to 64GB Non-ECC UDIMM, DDR4-3733MHz (OC), in 4 DIMM slots
4. 4 PCI-E 3.0 x16 (run at 16/NA/16/NA, 8/8/8/8, Auto Switch), 1 PCI-E 3.0 x4
5. 2 PCIe 3.0 x4 M.2 (support 22110) 1 compatible w/ SATA; RAID 0, 1 support
6. 2 PCIe 3.0 x4 U.2 (1 share with M.2); RAID 0, 1 support
7. USB 3.1/3.0/2.0, 2 GbE LAN ports (1 via Intel i210-AT, 1 via Intel i219V)
8. Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives; 2x 5.25" Peripheral Drive Bays
9. 1 DP (Display Port), 1 HDMI
10. HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out
11. 750W Multi-output ATX Power Supply with modular cable; 80Plus Gold
Extra Specifications for Supermicro SYS-5130AD-T Gaming PC Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
| Motherboard | ||
| Motherboard | Super C7Z270-PG | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) | |
| Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP | ||
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots | ||
| Memory Type | Frequency up to 3733MHz(OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| Support overclocking up to 3733MHz* * Please check the operation manual for supported components | ||
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB, 1GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® Z270 Express Chipset | |
| SATA | SATA3 via PCH w/ RAID 0, 1, 5, 10 | |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Intel® i219V Controller | ||
| Intel® i210-AT Controller | ||
| Audio | RealTek ALC1150 HD Audio | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 4 USB 3.0 ports (2 rear, 2 via headers) | |
| 8 USB 2.0 ports (2 rear, 6 via headers) | ||
| 4 USB 3.1 ports (3 Type A, 1 Type C) | ||
| Audio | 7.1 HD Jacks | |
| Support SPDIF-Out (rear) | ||
| Display | 1 DP (Display Port), 1 HDMI | |
| Serial Port / Header | 1 COM port (header) | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x4 slot | |
| 4 PCI-E 3.0 x16 slots (run at 16/NA/16/NA, 8/8/8/8, Auto Switch) | ||
| 2 PCIe 3.0 x4 M.2 (support 22110, RAID 0, 1) | ||
| 2 PCIe 3.0 x4 U.2 (1 share with M.2, RAID 0, 1 support) | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| DMI (SMBIOS) 2.7 | ||
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-GS5A-753K | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7.9" (201mm) | |
| Depth | 19.4" (493mm) | |
| Package | 24.9" (H) x 14.2" (W) x 24.0" (D) | |
| Weight | Net Weight: 22.27 lbs (10.1 kg) | |
| Gross Weight: 28.22 lbs (12.8 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off Button | |
| Reset Button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| Ports | 2 USB 3.0 ports | |
| 1 Earphone, 1 Microphone port | ||
| Drive Bays | ||
| Internal HDD/SSD | 4x 2.5" drive bays, and 6x combination bays that can house either 3.5" or 2.5" drives | |
| Peripheral | 2x 5.25" Peripheral Drive Bays | |
| System Cooling | ||
| Fans | 3x 12cm PWM fans | |
| Compatible with 120mm and 240mm closed-loop water cooling kits | ||
| Power Supply | ||
| Power Supply | 750W Multi-output Power Supply for Desktop, semi-modular cable output | |
| AC Input | 100-240Vac, 50-60Hz | |
| +5V | Max: 20A & Min: 0A | |
| +12V | Max: 62A & Min: 0.1A (100Vac-240Vac) | |
| +3.3V | Max: 20A & Min: 0A | |
| +5V SB | Max: 2.5A & Min: 0A | |
| -12V | Max: 0.3A | |
| Certification | Gold Certified | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Support 3-pin fans (w/o speed control) | ||
| Total of five 4-pin fan headers supporting up to 5 fans | ||
| 5x fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| FC temperature sensing logic | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5130AD-T (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink | SNK-P3002A | $ 152.50 | 0 | Liquid Cooling Module w/ a 3-pin Pump Connector for SYS-5038AD-I and SYS-5039AD-T |
