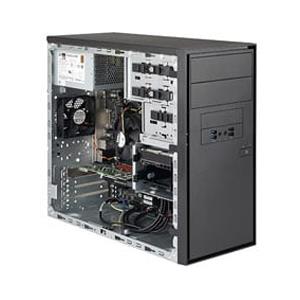

Supermicro SYS-5130DQ-IL Gaming PC Mini-Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
• Intel® vPro™ Technology
• Remote Manageability
• Commercial Desktop
Barebone Mini-Tower, Support Single Socket H4 (LGA 1151), Supporting Intel 7th/6th Generation Core i7/i5/i3 Series Processors, CPU TDP support up to 65W TDP, Intel Q270 Express Chipset, Up to 64GB in 4 DIMM slots, DIMM, On-Board: Controller SATA3 via PCH w/ RAID 0,1,5,10, 2x Fixed 3.5in Drive Bays, 1x Fixed 2.5in Drive Bays, 1x RJ45 Gigabit Ethernet LAN ports, 260W Power Supply - (SYS-5130DQ-IL + C7Q270-CB-ML)
This product is no longer available.
1. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core™ i7/i5/i3 series
2. Intel® Q270 Express Chipset
3. Up to 64GB Non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1
5. 2x 5.25" drive bays, 2x 3.5" fixed drive bays, 1x 2.5" fixed drive bay
6. 1 HDMI, 1 DP, 1 DVI-D
7. HD Audio 7.1 channel connector by Realtek ALC1150, support SPDIF-Out
8. 1x 80mm Rear Fan
9. 260W 80Plus Bronze Power Supply
Extra Specifications for Supermicro SYS-5130DQ-IL Gaming PC Mini-Tower Single Intel 7th/6th Gen Core i7/i5/i3 Series Processors
| Motherboard | ||
| Motherboard | Super C7Q270-CB-ML | |
| Processor/Cache | ||
| CPU | Single Socket H4 (LGA 1151) | |
| Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP | ||
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors | |
| System Memory | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots | ||
| Memory Type | Frequency up to 2400MHz non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs | |
| DIMM Sizes | 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® Q270 Express Chipset | |
| SATA | SATA3 via PCH w/ RAID 0, 1, 5, 10 | |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Intel® i219LM Controller | ||
| Audio | RealTek ALC1150 High Definition Audio | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Gigabit Ethernet LAN port | |
| USB | 6 USB 3.0 ports (2 front, 4 rear) | |
| 4 USB 2.0 ports (2 front, 2 rear) | ||
| Audio | 7.1 HD Jacks | |
| Support SPDIF-Out (Rear) | ||
| Display | 1 DP (Display Port), 1 HDMI, 1 DVI-D | |
| Serial Port / Header | 1 COM port (header) | |
| TPM | 1 TPM Header | |
| PS/2 | PS/2 Combo mouse and keyboard | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| 1 PCI-E 3.0 x4 slot | ||
| 1 PCI-E 3.0 x1 slot | ||
| 1 PCIe 3.0 x4 M.2 (supports 2280) | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | ACPI 5.0 | |
| USB Keyboard support | ||
| DMI (SMBIOS) 2.7 | ||
| Chassis | ||
| Form Factor | Mini-Tower | |
| Model | CSE-DS3A-261B | |
| Dimensions and Weight | ||
| Height | 14.65" (372mm) | |
| Width | 6.89" (175mm) | |
| Depth | 16.85" (428mm) | |
| Package | 18.7" (H) x 10.63" (W) x 20.08" (D) | |
| Weight | Net Weight: 15.74 lbs (7.14 kg) | |
| Gross Weight: 18.17 lbs (8.24 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off Button | |
| LEDs | Power LED | |
| Hard drive activity LED | ||
| 1 Network Activity LED | ||
| Ports | 2 USB 3.0 ports | |
| 2 USB 2.0 ports | ||
| 2 Audio Jacks | ||
| Drive Bays | ||
| Internal HDD/SSD | 2 Fixed 3.5" drive bays | |
| 1 Fixed 2.5" drive bay | ||
| Peripheral | 2 Peripheral 5.25" Drive Bays | |
| System Cooling | ||
| Fans | 1x 80mm rear fan | |
| Power Supply | ||
| Power Supply | PS2/ATX 260W/300W Multi-output power supply 80Plus Bronze, with 24pin Cable | |
| Total Output Power and Input | 300W with Input 100 - 127Vac | |
| 300W with Input 220 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 140 x 149.4 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.8A / Min: 0A | |
| +12V | Max: 10A / Min: 0.3A (100 - 127) | |
| Max: 10A / Min: 0.3A (220 - 240) | ||
| Max: 12A / Min: 0.3A (100 - 127) | ||
| Max: 12A / Min: 0.3A (220 - 240) | ||
| +5V | Max: 18A / Min: 0.3A | |
| +3.3V | Max: 10A / Min: 0.3A | |
| +5Vsb | Max: 2A / Min: 0A | |
| Certification | Bronze Certified | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Pulse Width Modulated (PWM) fan connectors | ||
| Support 3-pin fans (w/o speed control) | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| FC temperature sensing logic | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5130DQ-IL (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-C7Q270-CB-ML | 1 | Super C7Q270-CB-ML Motherboard | |
| Motherboard / Chassis | CSE-DS3A-261B | 1 | 3U Mini-Tower Chassis | |
| Cable 1 | CBL-0158L | 1 | PWCD,EU,CEE 7/7 Schuko TO C13,1830mm,0.75mm^2,10A,250V,Black,RoHS | |
| Cable 2 | CBL-0260L | 1 | US power cord 18AWG 6ft, PBF (default for low watt) | |
| Cable 3 | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| Manual | MNL-1952-QRG | 1 | 5130DB-IL / 5130DQ-IL Quick Reference Guide | |
| Power Supply | PWS-261-PQ | 1 | PS2/ATX 260W Multi-output power supply, 80Plus Bronze,RoHS |
