| Motherboard |
| Motherboard | Super X10SAE |
| Processor/Cache |
| CPU | Single Socket H3 (LGA 1150) |
| Intel® Xeon® processor E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron processors |
| A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3 * |
| System Memory |
| Memory Capacity | 4x 240-pin DDR3 DIMM slots |
| Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5V, 1.35V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C226 Express PCH |
| SATA | SATA3 via PCH w/ RAID 0, 1, 5, 10 |
| SATA3 via ASM1061® |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i217LM + Intel® i210AT Controllers |
| Audio | RealTek ALC1150 High Definition Audio |
| Input / Output |
| SATA | 6x SATA3 (6Gbps) ports via PCH |
| 2x SATA3 (6Gbps) ports via ASM1061® |
| Total of 8x SATA3 ports (6Gbps) |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 6x USB 3.0 ports (2 rear, 4 via headers) |
| 10x USB 2.0 ports (4 rear, 6 via headers) |
| Audio | 7.1 HD Jacks |
| Display * | 1x VGA, 1x HDMI, 1x DVI, 1x Display port (Triple Display) |
| Serial Port / Header | 2x COM ports (headers) |
| Expansion Slots |
| PCI-Express | 2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8 |
| 3x PCI-E 2.0 x1 (in x4) slots |
| PCI | 2x PCI 32-bit slots |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| SMBIOS 2.3 |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-732D4F-500B |
| Dimensions and Weight |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Gross Weight | 40 lbs (18.1 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED |
| Hard drive activity LED |
| Network activity LED |
| System Overheat LED |
| Ports | 2x front USB 3.0 Ports |
| 2x front HD/AC97 Audio Ports |
| 2x front USB 2.0 Ports |
| 2x front 1394a Ports |
| Drive Bays |
| Internal | Enterprise SATA HDD only recommended |
| 4x 3.5" SAS/SATA HDD Bays (90° rotatable drive cage) |
| Peripheral | 2x 5.25" peripheral drive bays |
| System Cooling |
| Fans | Optimized cooling technology for Whisper-Quiet Operation |
| 1x 12cm rear exhaust fan with Optimal Fan Speed Control |
| Power Supply |
| Power Supply | 500W AC power supply w/ PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 7-3.5 Amp |
| +5V | 20 Amp |
| +5V standby | 3 Amp |
| +12V1 | 17 Amp |
| +12V2 | 17 Amp |
| +12V3 | 17 Amp |
| +12V4 | 18 Amp |
| -12V | 0.5 Amp |
| +3.3V | 15 Amp |
| Certification | Bronze Certified |
| PC Health Monitoring |
| CPU | 6-Phase-switching voltage regulator |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Low noise fan speed control |
| Temperature | Monitoring for CPU and chassis environment |
| PECI |
| Thermal Control for 8x fan connectors |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

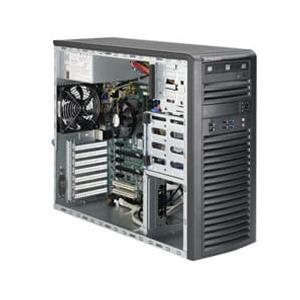

| Product SKUs | SYS-5038A-iL (Black) |
