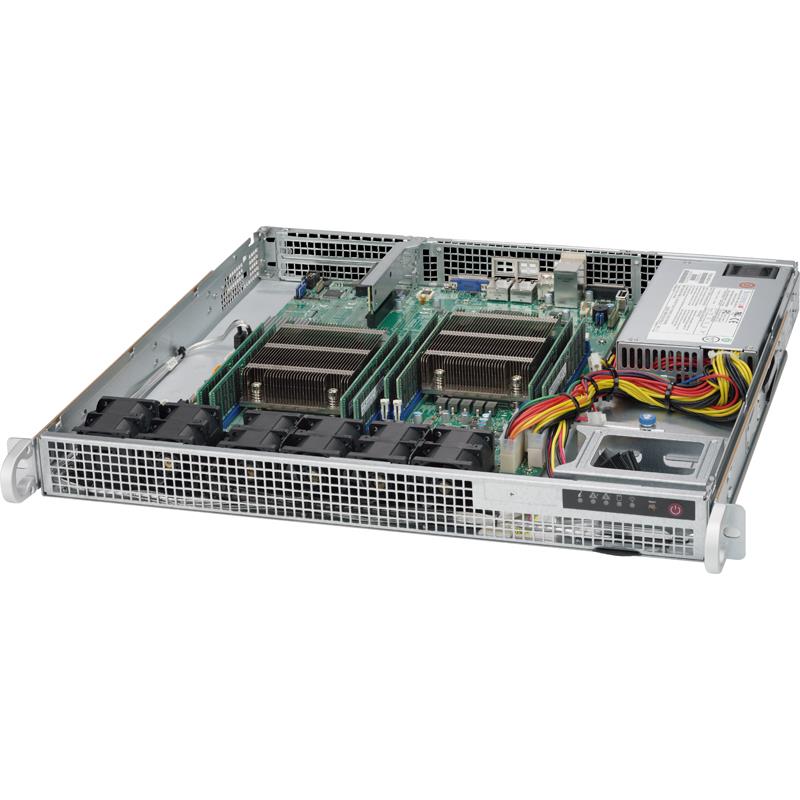

Supermicro SYS-6018R-MD 1U Barebone Dual Intel Processor

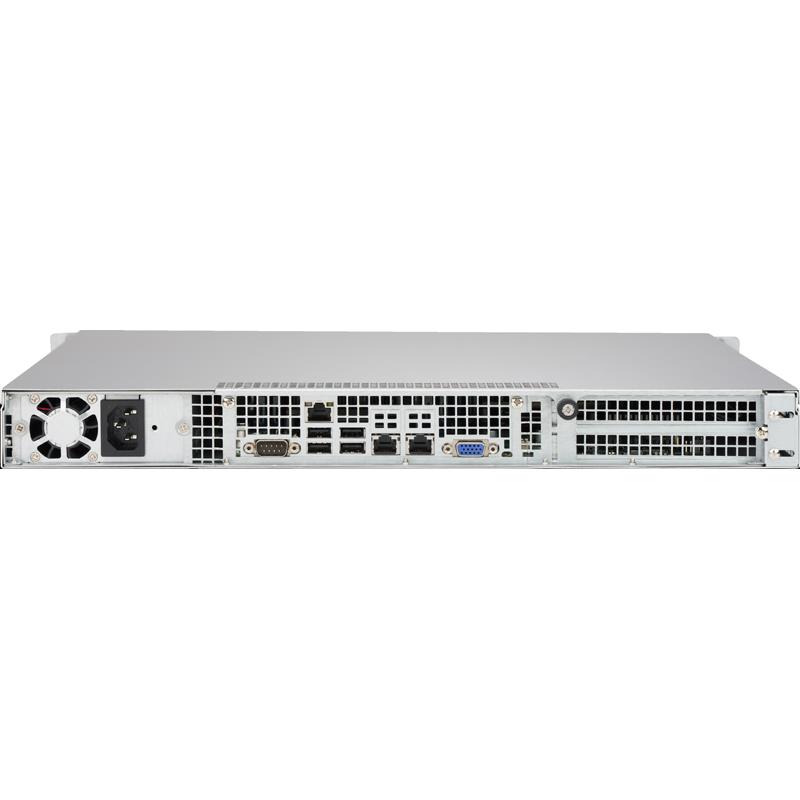

Barebone 1U S-2011R3 for Xeon E5-2600 v3

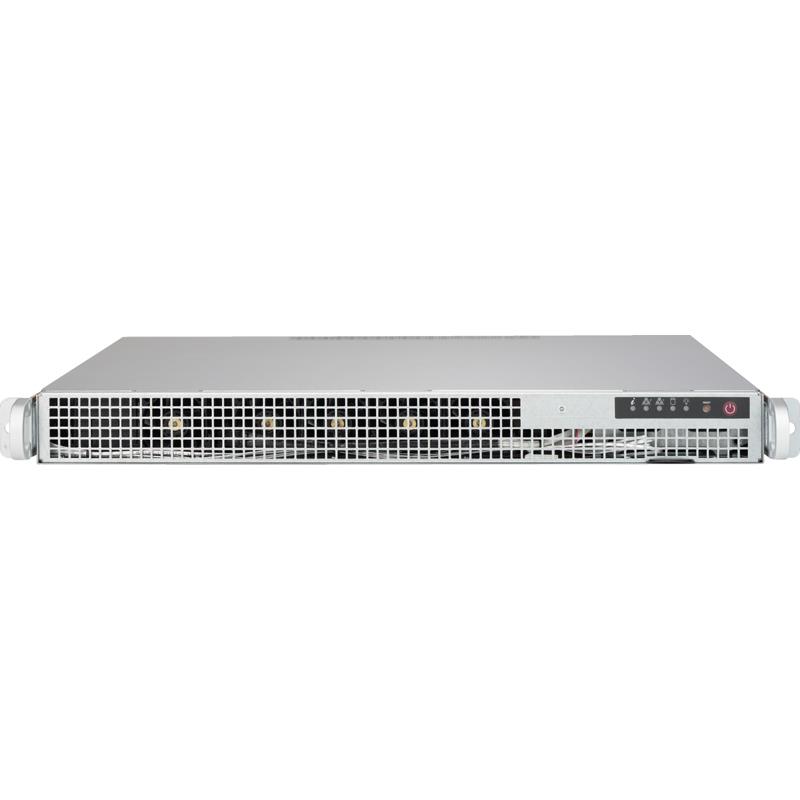

Barebone 1U S-2011R3 for Xeon E5-2600 v3
Barebone 1U S-2011R3 for Xeon E5-2600 v3

Supermicro SYS-6018R-MD 1U Barebone Dual Intel Processor

• Data Center Optimized
• Cost Effective
• Short Depth

Server Barebone 1U for Dual Intel Xeon processor E5-2600 v3 family - Supports up to 512GB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM up to 2133MHz (8x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps) with RAID 0 / 1 / 5 / 10, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Intel 82599ES 2x Intel i350 Gigabit Ethernet, ASPEED AST2400 BMC VGA - Includes : 2x 2.5in or 1x 3.5in fixed SATA drive bay with bracket, 1x Riser Card (RSC-RR1U-E8), 2x Heatsink / Retention (2x SNK-P0047PS), 500W 80 Plus Platinum Level Power Supply (PWS-505P-1H), X10DRD-L Motherboard, CSE-514-505 1U Chassis (Black)

This product is no longer available.

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 1x PCI-E 3.0 x8 (FHHL) slot
4. 2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays
5. Intel® i350 Dual-Port 1GbE LAN
6. I/O ports: 1x VGA, 1x COM, 4x USB 2.0
7. 500W High-Efficiency Power Supply Platinum Level Certified
8. 2x SuperDOM (Disk on Module) ports
9. IPMI 2.0 + KVM with Dedicated LAN

Extra Specifications for Supermicro SYS-6018R-MD 1U Barebone Dual Intel Processor

Motherboard
MotherboardSuper X10DRD-L
Processor/Cache
CPUDual Socket R3 (LGA 2011)
Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) *
Cores / CacheUp to 22 Cores † / Up to 55MB † Cache
System BusQPI up to 9.6 GT/s
Note† BIOS version 2.0 or above is required
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity8x 288-pin DDR4 DIMM slots
Up to 1TB † ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM SizesLRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage1.2 V
Error DetectionCorrects single-bit errors
On-Board Devices
ChipsetIntel® C612 chipset
SATASATA3 (6Gbps); RAID 0, 1
IPMISupport for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network ControllersVirtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Intel® i350 Dual Port Gigabit Ethernet
VideoASPEED AST2400 BMC
Input / Output
SATA6x SATA3 (6Gbps) ports
I-SATA 4 & I-SATA 5 support SATA DOM
LAN1x RJ45 Dedicated IPMI LAN port
2x RJ45 Gigabit Ethernet LAN ports
USB7x USB 2.0 ports (4 rear, 2 headers, 1 Type A)
Video1x VGA port
Serial Port / Header2x COM ports (1 rear, 1 header)
DOM2x Super DOM (Disk on Module) ports
Management
SoftwareWatch Dog
SuperDoctor® 5
Intel® Node Manager
IPMI 2.0
SUM
SSM
SPM
Power ConfigurationsPower-on mode for AC power recovery
ACPI Power Management
Chassis
Form Factor1U Rackmount
ModelCSE-514-505
Dimensions and Weight
Width17.2" (437mm)
Height1.7" (43mm)
Depth16.9" (429mm)
Package27" (W) x 8" (H) x 24" (L)
Gross Weight26 lbs (11.80 kg)
Available ColorsSilver
Front Panel
ButtonsPower On/Off button
System Reset button
LEDsPower status LED
HDD activity LED
Universal Information (UID) LED
2x Network activity LEDs
Expansion Slots
PCI-Express1x PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot-swap2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays
System Cooling
Fans5x 4cm fans with optimal fan speed control
Power Supply
Power Supply500W High-Efficiency Power Supply w/PMBus 1.2, I 2 C, and PFC
AC Input100-240V, 50-60Hz, 6.6A max
DC Output+5V standby: 3A
+3.3V: 12A
+5V: 15A
+12V: 41A
-12V: 0.2A
CertificationPlatinum Certified
System BIOS
BIOS Type128Mb SPI Flash EEPROM with AMI BIOS
BIOS FeaturesSMBIOS 2.7.1
USB Keyboard support
ACPI 3.0 / 4.0
Plug and Play (PnP)
UEFI 2.3.1
PCI 2.3
APM 1.2
Operating Environment / Compliance
RoHSRoHS Compliant
Environmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Product SKUs
Product SKUsSuperServer 6018R-MD (Silver)
NamePart NumberQty.Description
Motherboard / ChassisMBD-X10DRD-L1Super X10DRD-L Motherboard
Motherboard / ChassisCSE-514-50511U Chassis
Cable 1CBL-0082L1Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2CBL-0481L2SATA,INT,ROUND,ST-ST,81CM,30AWG
FAN 1FAN-0156L4540x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
PartsMCP-120-00078-0N1Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond
Drive Tray(s)MCP-220-51401-0N1Dual 2.5 HDD bracket (bracket base not follow std 2.5\" HDD screw holes)
Drive Tray(s)MCP-220-51402-0N13.5in fixed HDD tray for SC513,514,515,812L,812U,523,HF,RoHS/REACH
ManualMNL-1768-QRG1SYS-6018R-MD, QRG,HF,RoHS/REACH
Riser CardRSC-RR1U-E81RSC-RR1U-E8
Heatsink / RetentionSNK-P0047PS21U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power SupplyPWS-505P-1H11U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH

Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:Replacement or repair
Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
