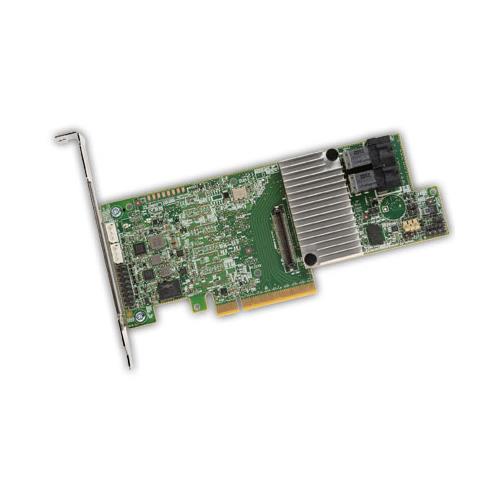

Supermicro 8-Port SAS3 12Gb/s & SATA3 6Gb/s MegaRAID Gen3 PCIe x16 Hardware RAID 0, 1, 5, 6, 10, 50 & 60, Broadcom 9361-8i, AOC-SAS3-9361-8I

Supermicro 8-Port SAS3 12Gb/s & SATA3 6Gb/s MegaRAID Gen3 PCIe x16 Hardware RAID 0, 1, 5, 6, 10, 50 & 60, Broadcom 9361-8i, AOC-SAS3-9361-8I

• 2 HD Mini-SAS (Horizontal mount)
• Cloud and high-performance computing
• Fit into rack-mounted servers w/ low-profile

8 Ports Internal LSI MegaRAID 9361-8i SAS3 12Gb/s Controller

$ 959.00$ 959.00959.0USD

$ 959.00

Option not available

    This combination does not exist.

    Add to Cart

    • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
    • Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
    • Add more protection and peace of mind with optional CacheVault® flash cache protection
    • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
    • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60

    Extra Specifications for Supermicro 8-Port SAS3 12Gb/s & SATA3 6Gb/s MegaRAID Gen3 PCIe x16 Hardware RAID 0, 1, 5, 6, 10, 50 & 60, Broadcom 9361-8i, AOC-SAS3-9361-8I

    Main Specifications
    Dimensions (WxDxH)6.6" x 2.536"
    Form FactorMD2 Low profile
    Interface (Bus) Typex8 lane PCI Express 3.0
    Included Quantity1
    Storage Controller
    Onboard Memory/Cache1GB 1866MHz DDRIII SDRAM
    ProcessorLSI SAS 3108: 1.2GHz PowerPC 476 dual-core 12Gb/s ROC
    Data Transfer RateUp to 12Gb/s per port
    RAID LevelRAID levels 0, 1, 5, 6, 10, 50, and 60
    Miscellaneous
    FeaturesEight internal 12Gb/s SATA+SAS ports
    MTBF1,343,187 hours
    Power
    Operating Voltage[+12V, +3.3V]
    Expansion / Connectivity
    Interface and ConnectionsTwo mini-SAS SFF8643 internal connectors (horizontal mount)
    Software / System Requirements
    OS SupportsExtensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware

    Warranty:3 years, 120 days advance replacement (doa)
    Provider:BROADCOM
    Phone No.:305-640-0300
    E-mail:returnservices@wiredzone.com
    URL:Click here for Manufacturer Website
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
