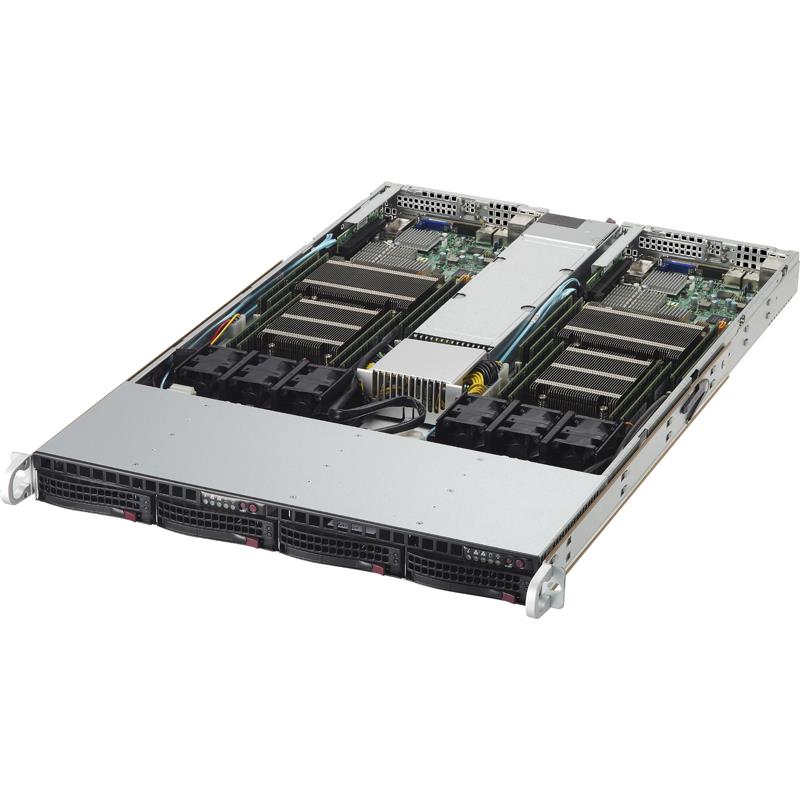

- Supermicro SYS-6018TR-T 1U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family
Supermicro SYS-6018TR-T 1U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family
Server Rackmount 1U With Two Nodes, Each Node Supports: Dual Socket R3 (LGA 2011) Intel Xeon Processor E5-2600 v4/v3 Family (up to 145W TDP), Up to 1TB DDR4 R/LRDIMM (or) up to 256GB DDR4 ECC RDIMM, up to 2133MHz (8x 288-pin DDR4 DIMM sockets) - On-Board (per Node) : SATA3 (6Gbps) RAID 0 / 1 / 5 / 10, IPMI 2.0 KVM/media over LAN with dedicated LAN port, Intel i350 2X Gigabit Ethernet, ASPEED AST2400 BMC VGA, 2x SuperDOM (Disk on Module) ports - Included (per Node) : 2x Hot-swap 3.5in drive bays, 1x Riser Card (RSC-R1UTP-E16R), Heatsink / Retention (1x SNK-P0047PW and 1x SNK-P0047PS) - System includes : 1000W Redundant 80 Plus Titanium Level Power Supply (2x PWS-1K03A-1R), X10DRT-L Motherboard, CSE-808BTQ-1K03B 1U Chassis (Black)
This product is no longer available.
Two systems (nodes) in a 1U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 1x PCI-E 3.0 x16 (in x16) slot
4. 2x 3.5" Hot-swap SAS/SATA drive bays
5. Intel® i350 Dual port GbE LAN
6. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 2.0 (rear)
7. 1000W High-efficiency Power Supply Titanium Level Certified
Extra Specifications for Supermicro SYS-6018TR-T 1U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family
| Motherboard | ||
| Motherboard | Super X10DRT-L | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB † ECC 3DS LRDIMM, 256GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| Serial ATA | 10x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 2x USB 2.0 ports (rear) | |
| Video | 1x VGA port | |
| Serial Port / Header | 1x COM port (1 header) | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 1U Twin | |
| Model | CSE-808TS-1K03B | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 1.75" (44.45mm) | |
| Depth | 27.75" (705mm) | |
| Gross Weight | 43 lbs (19.5kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1x PCI-E 3.0 x16 (in x16) slot | |
| Drive Bays (per node) | ||
| Hot-swap | 2x 3.5" Hot-swap drive bays | |
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane | |
| System Cooling (per node) | ||
| Fans | 3x 40x56mm counter-rotation PWM fans | |
| Power Supply | ||
| Power Supply | 1000W Titanium Level (96%) AC-DC power supply with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 75 Amp @ +12V | ||
| Certification | Titanium Level Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| ACPI 3.0 / 4.0 | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6018TR-T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRT-L | 2 | Super X10DRT-L Motherboard | |
| Motherboard / Chassis | CSE-808TS-1K03B | 1 | 1U Chassis | |
| Backplane | BPN-SAS-808 | 1 | 4-port 1U CSE-808 1U-Twin backplane , support up to 2x 3.5-inch SAS/SATA HDD per node | |
| Cable 1 | CBL-0201L | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 51/47/41/37CM,26AWG | |
| Riser Card | RSC-R1UTP-E16R | 2 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0047PS | 2 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0047PW | 2 | 1U Passive Custom Rear CPU Heat Sink for X9, X10 1U Twin, 2U Twin^2 8-DIMM per Node Series Servers | |
| Power Supply | PWS-1K03A-1R | 1 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x40x336mm,RoHS/REACH | |
| FAN 1 | FAN-0085L4 | 6 | 40x56 4pin PWM Primary for SC816,819,808,Sec. for SC809,111 | |
| Air Shroud | MCP-310-19015-0N | 1 | SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH | |
| I/O Shield | MCP-260-00061-0N | 1 | 1U I/O Shield for X9DB3/X9DBi/X9DB3-F/X9DBi-F/X10DRL-CT with EMI Gasket,RoHS/REACH |
