| Motherboard |
| Motherboard | Super X10SRG-F |
| Processor |
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3, E5-1600 v4 † / v3 family (up to 145W TDP **) |
| Single Socket R3 (LGA 2011) |
| Core / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| Note | † BIOS version 2.0 or above is required |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 1TB ECC 3DS LRDIMM |
| Up to 512GB ECC LRDIMM |
| Up to 512GB ECC RDIMM |
| Memory Type | 2400 † / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SATA | RAID 0, 1, 5, 10 support |
| SATA3 (6Gbps) via C612 controller |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i350 Dual Port Gigabit Ethernet |
| Graphics | ASPEED AST2400 BMC |

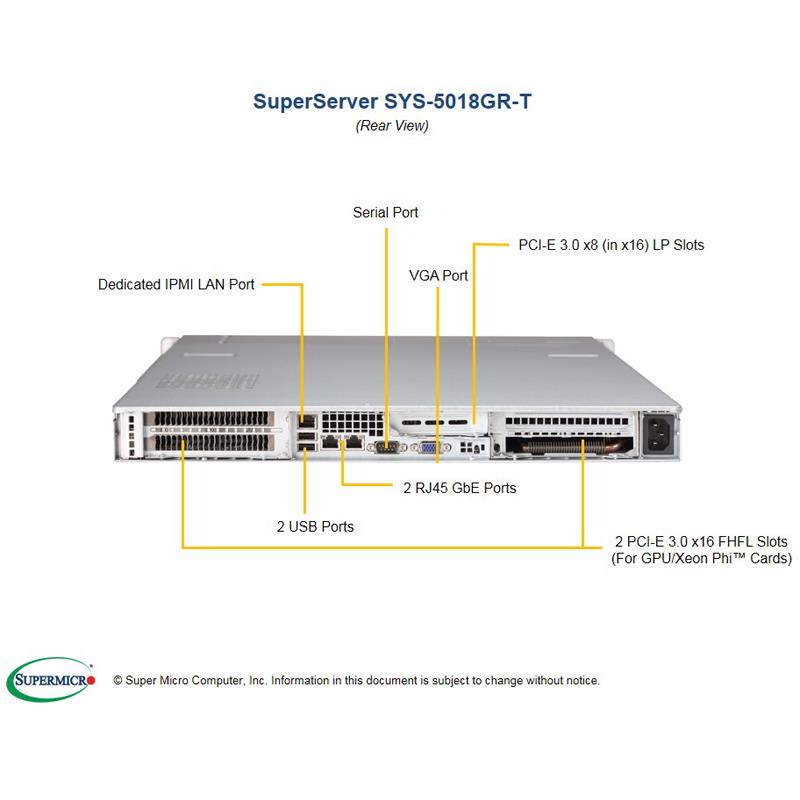

| Input / Output |
| SATA | 6x SATA3 (6Gbps) ports |
| LAN | 1x RJ45 Dedicated IPMI LAN port |
| 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 2x USB 3.0 ports (rear) |
| Video | 1x VGA Connector |
| Serial Port | 1x Serial header |
| DOM | 2x DOM (Disk on Module) power connectors |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| Hardware BIOS Virus protection |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-818GTS-1K43BP2 |
| Dimensions |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 28.2" (716mm) |
| Weight | Net Weight: 27 lbs (12.25 kg) |
| Gross Weight: 35.5 lbs (16.10 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Hard drive activity LED |
| System Overheat LED / Fan fail LED / UID LED |
| 2x Network activity LEDs |
| Expansion Slots |
| PCI-Express | 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) |
| 1x PCI-E 3.0 x8 slot for I.B. card |
| UIO AOC Compatibility Matrix |
| Drive Bays |
| Hot-swap | 3x 3.5" Hot-swap drive bays |
| System Cooling |
| Fans | 8x counter-rotating fans with optimal fan speed control |
| Power Supply |
| Power Supply | 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
| AC Voltage | 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz |
| 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz |
| +5V standby | 6 Amp |
| +12V | 100 Amp/115 Vac |
| 117 Amp/230 Vac |
| With Power Distributor | +5V: 14 Amp |
| Certification | Platinum Certified |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. |
| CPU Core 5-Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Total of eight 4-pin PWM fans |
| 8x fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| PSU I 2 C temperature sensing logic |
| Thermal Control for 8x Fan Connectors |
| LED | Power Fail / Overheat LED |
| Suspend-state Indicator LED |
| UID LED |
| Other Features | SDDC Support |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer 5018GR-T (Black) |
