| Motherboard (Two per System) |

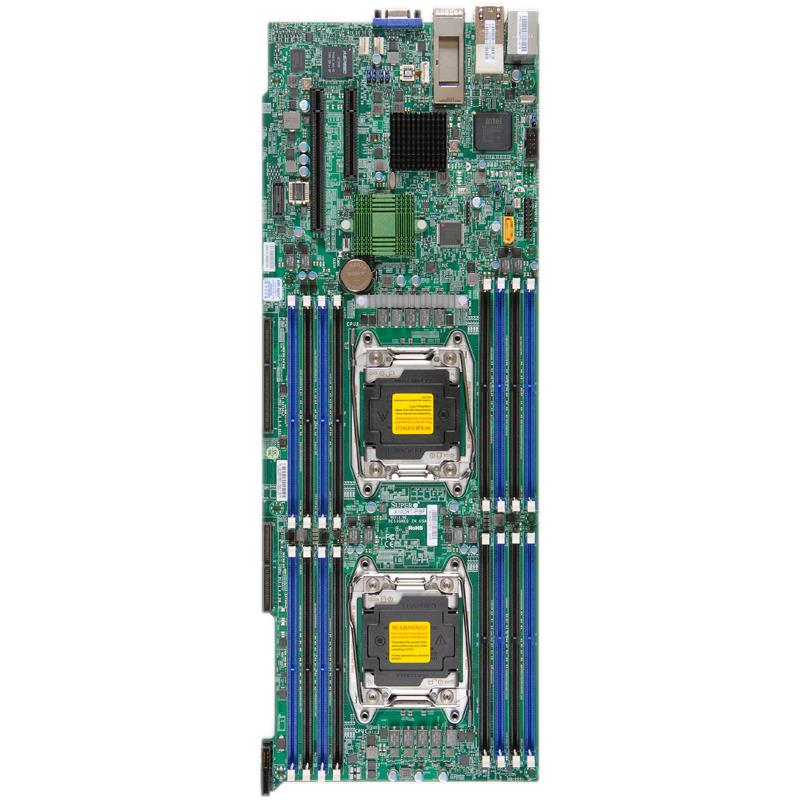

| Motherboard (Two per System) | Super X10DRT-PIBF |

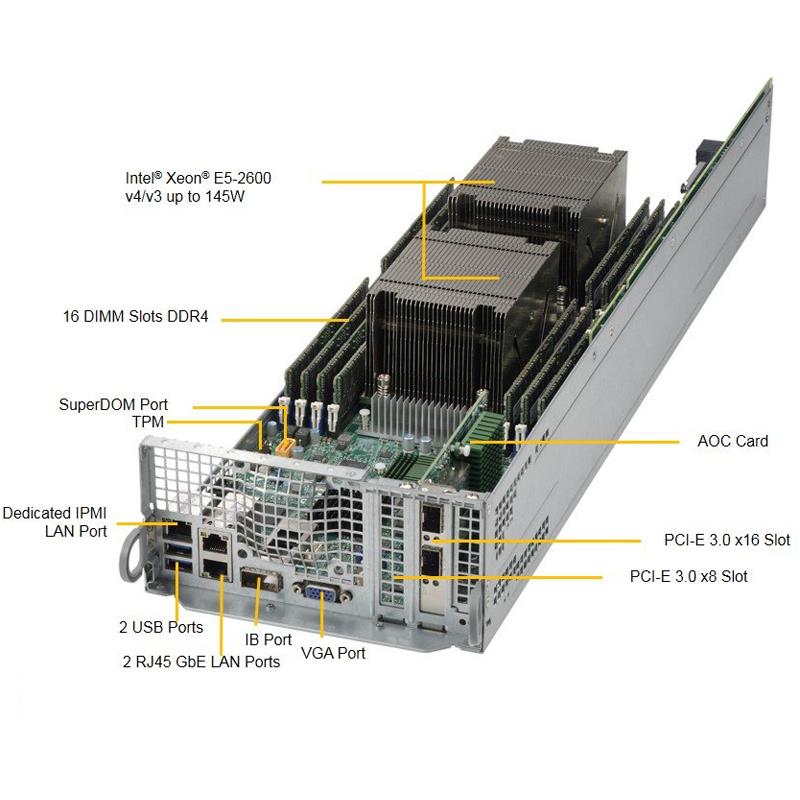

| Processor/Cache (per Node) |
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory (per Node) |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices (per Node) |
| Chipset | Intel® C612 chipset |
| Infiniband | Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller |
| SAS | Broadcom 3008 SAS3 (12Gbps) via SAS3 Expander |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i350-AM2 Dual Port Gigabit Ethernet |
| 1 Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 BMC |

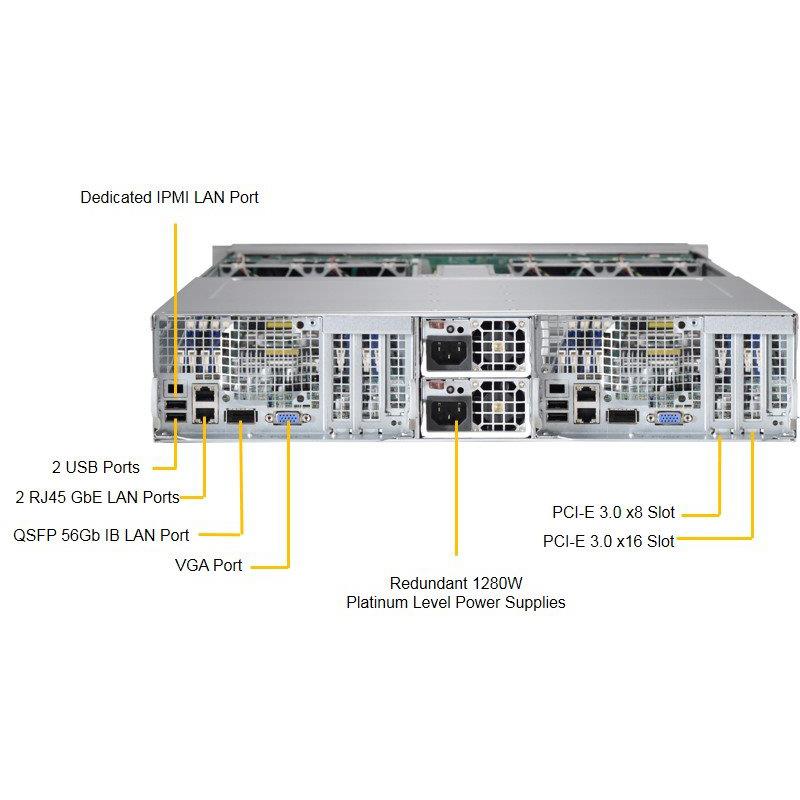

| Input / Output (per Node) |
| SAS | 12 SAS3 (12Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 2 RJ45 Gigabit Ethernet LAN ports |
| Infiniband | 1 external QSFP Infiniband connector |
| USB | 2 USB 3.0 ports (rear) |
| VGA | 1 VGA port |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header (internal) |
| Others | 1 SATADOM support on the motherboard |
| 1 mSATA (full size) and one SATADOM support on the daughter card |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-217HD+-R1K28B |
| Dimensions and Weight |
| Width | 17.25" (438mm) |
| Height | 3.47" (88mm) |
| Depth | 28.75" (730mm) |
| Weight | Gross Weight: 85 lbs (38.6kg) |
| Net Weight: 66 lbs (29.9 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| UID button |
| LEDs | 2 Network activity LEDs |
| Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| Expansion Slots (per Node) |
| PCI-Express | 1 PCI-E 3.0 x16 Low-profile slot |
| 1 PCI-E 3.0 x8 slot |
| 1 "0 Slot" card |
| Drive Bays (per Node) |
| Hot-swap | 12 Hot-swap 2.5" HDD Bays |

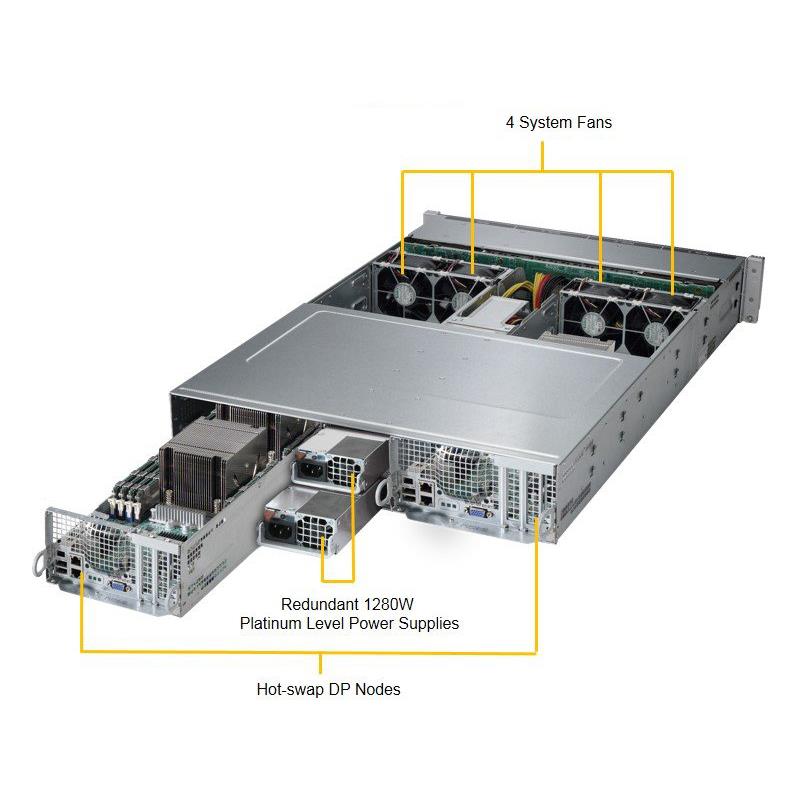

| System Cooling |
| Fans | 4 heavy duty 8cmPWM fans with optimal fan speed control |
| Power Supply |
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 |
| AC Input | 1000W Output @ 100-140V, 8-12A, 50-60Hz |
| 1280W Output @ 180-240V, 6-8A, 50-60Hz |
| DC Output | 1000W: +12V/83A; +5Vsb/4A |
| 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | Platinum Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| SMBIOS 2.3 |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

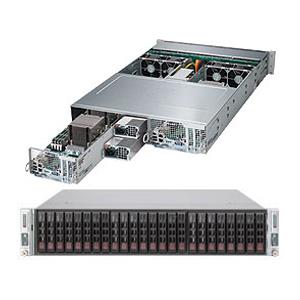

| Product SKUs | SuperServer 2028TP-DECFR (Black) |
