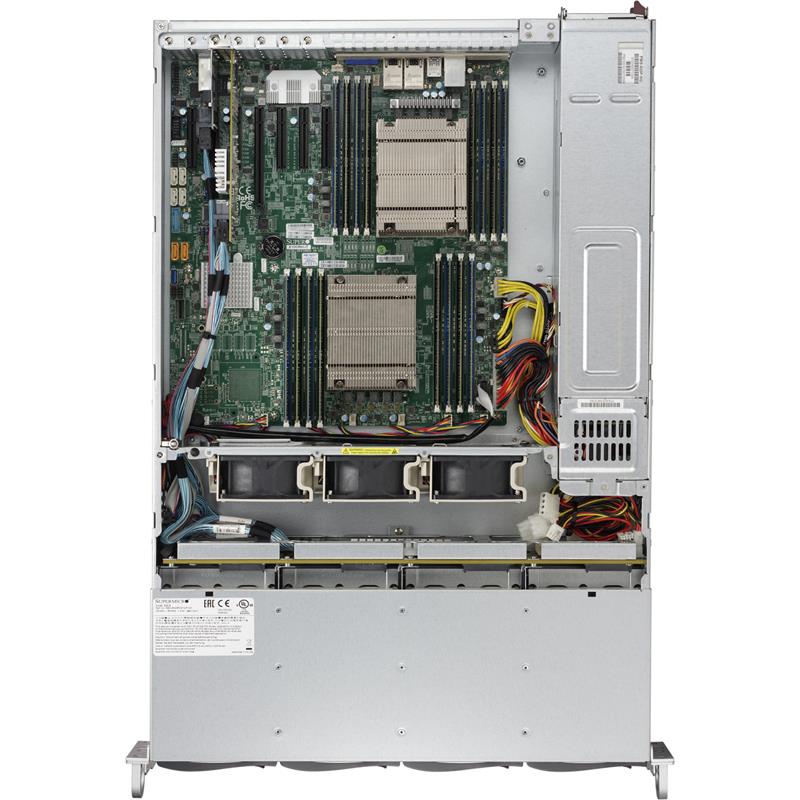

Supermicro SSG-6028R-E1CR12L 2U Storage Barebone Dual Processor
Barebone 2U SuperStorage Server for up to Dual Intel Xeon E5-2600 v4/v3 family processors - Supports up to 3.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 24x 288-pin slots - On-Board : SATA 6Gbps (RAID), 2x 10GBase-T LAN, IPMI 2.0, VGA - Includes : 12x 3.5in Hot-Swap Drive Bays, 1x AOC-S3008L-L8E, 1x AOM-SAS3-8I8E-LP, 2x Heatsinks, 920W Redundant 80 Plus Platinum Level Certified Power Supply, X10DRH-iT Motherboard, SC826BE1C-R920LPB 2U Chassis - (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and JBOD expansion port)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 12x 3.5" Hot-swap drive bays: 8x 3.5" Hot-swap SAS3/SATA3 drive bays and 4x NVMe hybrid drive bays (SAS3/SATA3/NVMe*); 2x 2.5" optional Hot-swap SATA drive bays (rear)
6. SAS3 via Broadcom 3008 controller; IT mode
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3x 8cm hot-swap redundant PWM cooling fans
9. 920W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SSG-6028R-E1CR12L 2U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X10DRH-iT | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008 | |
| IT mode firmware | ||
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1 Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® X540 Dual Port 10GbE | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| 1 Type A | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BE1C-R920LPB | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.6" (648mm) | |
| Weight | Gross Weight: 58 lbs (26.3 kg) | |
| Net Weight: 34 lbs (15.4 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| 6 PCI-E 3.0 x8 slots | ||
| Slot 1 & 2 occupied by controller and JBOD Expansion Port | ||
| Drive Bays | ||
| Hot-swap | 12x 3.5" Hot-swap SAS3/SATA3 drive bays | |
| Optional | 2x 2.5" Hot-swap SATA drive bays (rear) | |
| Backplane | ||
| Backplane | SAS3/SATA3 single expander per backplane | |
| System Cooling | ||
| Fans | 3x 8cm hot-swap redundant PWM cooling fans | |
| Power Supply with Power Distributor | ||
| Power Supply with Power Distributor | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 75 Amp @ +12V | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6028R-E1CR12L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRH-iT | 1 | Super X10DRH-iT Motherboard | |
| Motherboard / Chassis | CSE-826BE1C-R920LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-826EL1-N4 | 1 | 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable 1 | CBL-SAST-0532 | 4 | MINI SAS HD,12G,INT,50CM,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-920P-SQ | 2 | 920W 1U Redundant PWS W/ Quiet Mode | |
| Fan | FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing | |
| Drive Tray(s) | MCP-220-00075-0B | 12 | Black 3.5" HDD tray | |
| Add On Card | AOC-S3008L-L8E-O-P | 1 | LSI 3008 based SAS3 HBA, 12Gb, 8 internal ports, 122HDD, Gen3 x8 Standard Low Profile | |
| Add On Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Drive Kit | MCP-220-82616-0N | $ 112.00 | 0 | 12G 2.5" x2 Drive Kit w/ Status LED | ||
| HDD bracket | MCP-220-82611-0NCBL-0289LCBL-0473L | 112 | Dual 2.5" fixed HDD trayHDD Power CableHDD SATA Cable | |||
| 4 NVMe Drives Support | AOC-SLG3-2E4RCBL-SAST-0590MCP-220-00116-0B | 244 | NVMe AOCInternal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s, 70cm3.5" to 2.5" NVMe drive tray | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
