- Supermicro X10DRD-INT Motherboard E-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors

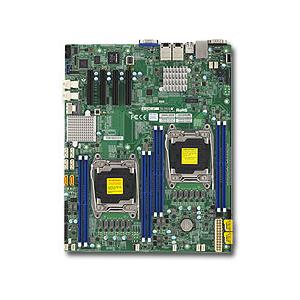

Supermicro X10DRD-INT Motherboard E-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
Supports dual Intel Xeon E5-2600 v3/v4 processor
Features Intel C612 controller for 10 SATA3 ports RAID
Includes 2 RJ45 10GBase-T ports, 1 Dedicated IPMI LAN port
Handles up to 256GB ECC RDIMM DDR4 memory across 8 DIMM slots
Motherboard E-ATX, Supports Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v3/v4 Processors (Up to 22-Core/Up to 55MB cache) 1 QPI up to 9.6GT/s. Up to 256GB DDR4 RDIMM, Chipset: Intel C612 - On-Board: SATA3 (RAID), 2 NVMe ports, IPMI, 2 10GBase-T LAN, VGA (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8 DIMM slots
4. Expansion slots: 4x PCI-E 3.0 x8
5. Intel® X540 Dual port 10GBase-T
6. 10x SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 7 USB 2.0 ports (4 rear, 2 via headers, 1 Type A)
9. 2 Internal NVMe ports (PCI-E 3.0 x4)
Extra Specifications for Supermicro X10DRD-INT Motherboard E-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| LRDIMM: 32GB, 64GB | ||
| 4GB, 8GB, 16GB, 32GBRDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | Up to 256GB ECC RDIMM, in 8 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Single LAN with Intel® X550 10GBase-T Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8201N PHY (dedicated IPMI) | |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 10GBase-T ports | |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) | |
| USB | 7 USB 2.0 ports (4 rear + 2 headers + 1 Type A) | |
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | E-ATX | |
| Dimensions | 13.05" x 10.5" (33.15cm x 26.67cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 4 PCI-E 3.0 x8 | |
| Management | ||
| Software | Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog | |
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 6 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED | |
| Other Features | RoHS | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
