- Supermicro X10SDV-F Motherboard Mini-ITX SoC Xeon D-1541 8-Core, FCBGA 1667

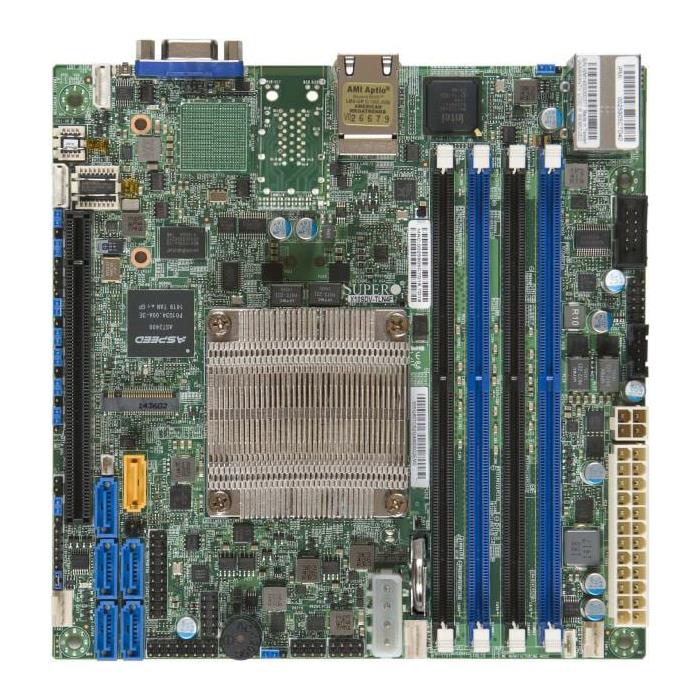

Supermicro X10SDV-F Motherboard Mini-ITX SoC Xeon D-1541 8-Core, FCBGA 1667
Includes SoC controller for 6 SATA3 (6 Gbps) ports
Offers 6x SATA3 ports, 1 SuperDOM, 1 COM, TPM header
Embedded Intel Xeon D-1541 processor 8-core/16 threads
Handles up to 128GB ECC RDIMM DDR4-2400 in 4 DIMM slots
Motherboard Mini-ITX SoC Xeon D-1541 8-Core, FCBGA 1667 - Up to 128GB DDR4 ECC RDIMM (4x DDR4 DIMM sockets) - On-board : SATA (System on Chip), 2 Gigabit LAN, IPMI 2.0, VGA, 1x SuperDOM Power Connector - optimized for SC505/SC504 1U Chassis - MBD-X10SDV-F-O - (Retail Box)
1. Intel® Xeon® processor D-1541, Single socket FCBGA 1667, 8-Core, 45W
2. System on Chip
3. Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
4. 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
5. 2 GbE LAN ports
6. 6 SATA3 (6Gbps) ports via SoC
7. 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
8. 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
9. 12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-F Motherboard Mini-ITX SoC Xeon D-1541 8-Core, FCBGA 1667
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots | |
| Up to 128GB Registered ECC RDIMM, DDR4-2133MHz | ||
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I350-AM2 Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| Graphics | Aspeed AST2400 BMC | |
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; | |
| Input / Output | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| SATA | 6 SATA3 (6Gbps) port | |
| USB | 2 USB 3.0 ports (2 rear) | |
| 4 USB 2.0 ports (4 headers, Type A)) | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| CPU Fan auto-off in sleep mode | ||
| Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | ||
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor/Cache | ||
| CPU | Single Socket FCBGA1667 supported, CPU TDP support 45W | |
| Intel® Xeon® Processor D-1541. | ||
| Cores / Cache | 8 cores, 16 threads / 12MB cache | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| M.2 PCI-E 3.0x4, M Key 2242/2280 | ||
| M.2 | 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, 4 fans with tachometer monitoring, Chassis intrusion header, HT, Memory, Memory Voltages, Supports system management utility, System level control, System temperature | |
| FAN | 3x 4-pin fan headers (up to 3 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for on/off control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS, SDDC, System level control, UID, WOL | |
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U I/O Shield | MCP-260-00085-0B | $ 21.00 | 1 | 1U I/O Shield for X10SDV-F/TLN4F in CSE-510/505/504 | ||
| 1U I/O Shield | MCP-260-00079-0N | $ 20.00 | 1 | 1U I/O shield for X10SDV-F/TLN4F in SC813/SC512 chassis |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
