| On-Board Devices |
| Chipset | System on Chip |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Quad LAN with Intel® C2000 SoC, I354, 2 pairs LAN bypass |
| Single LAN with Intel® Ethernet Controller I210-AT, Management Port with Shared IPMI |
| SATA | 2 SATA3 (6 Gbps) ports; RAID 0/1 |
| SoC controller for 2 SATA2 (3 Gbps) ports |
| Graphics | 1 ASPEED AST2400 BMC port(s) |
| System Memory |
| DIMM Sizes | 2GB, 4GB, 8GB, 16GB |
| Memory Capacity | 2 DIMM slots |
| 16GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz |
| Memory Voltage | 1.35V |
| 1.5V |
| Memory Type | N/A |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| 2 SATA2 (3Gbps) port(s) |
| DOM | 1 Super DOM (Disk on Module) port with build power |
| LAN | 5 RJ45 Gigabit Ethernet LAN ports |
| Others | 1 Pairs LAN Bypass Ports |
| USB | 7 USB 2.0 port(s) (2 via header; 1 Type A; 4 rear) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| 2 fast UART 16550 Serial |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| Plug and Play (PnP) |
| DMI 2.3 |
| BIOS Type | AMI UEFI |
| Management |
| Power Configurations | ACPI Power Management, Control of power-on for recovery from AC power loss |
| Software | SuperDoctor® 5, NMI, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Product SKUs |

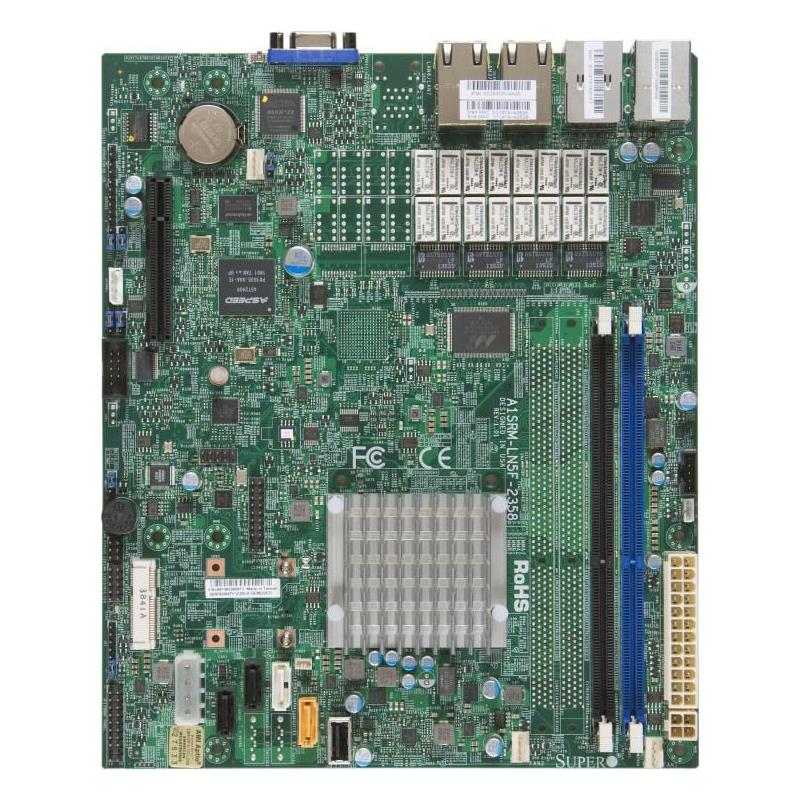

| Product SKUs | MBD-A1SRM-LN5F-2358 |
| Physical Stats |
| Form Factor | mATX |
| Dimension | 8" x 9.6" (20.32cm x 24.38cm) |
| Processor |
| CPU | Intel® Atom® Processor C2358 |
| Single Socket FCBGA-1283 supported, CPU TDP supports Up to 7W TDP |
| Core | Up to 2 cores, 2 threads / 2MB Cache |
| Note |
| Expansion Slots |
| PCIe | 1 PCIe 2.0 x4 (in x8 slot) |
| M.2 |
| PC Health Monitoring |
| Voltage | System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Adaptive Thermal Monitor, PECI 3.0 |
| FAN | 3x 4-pin fan headers (up to 3 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication |
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, Intel® QuickAssist Technology, 4-pin 12v DC power connector |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
