- Supermicro A1SRM-LN7F-2358 Motherboard mATX Intel Atom C2358 SoC, up to 16GB DDR3, SATA3 / SATA2, 7Gi gabit LAN, VGA

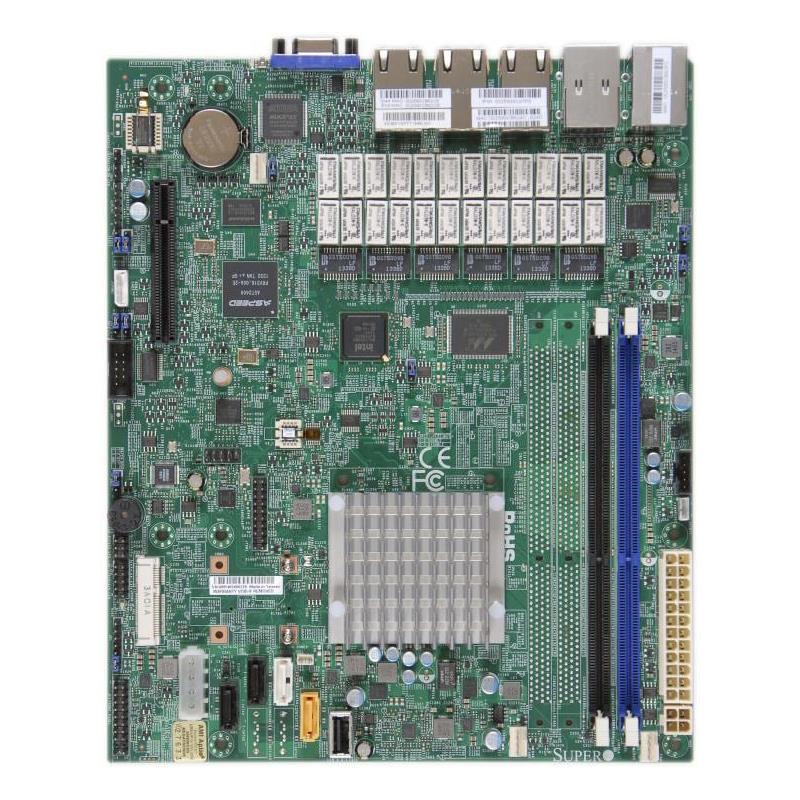

Supermicro A1SRM-LN7F-2358 Motherboard mATX Intel Atom C2358 SoC, up to 16GB DDR3, SATA3 / SATA2, 7Gi gabit LAN, VGA
Includes 7 RJ45 Gigabit Ethernet LAN ports
Embedded Intel Atom C2358 2-core processor
Features SoC controller for 2 SATA2 (3Gbps) ports, 2 SATA3 (6Gbps)
Handles up to 16GB Unbuffered DIMM DDR3 memory across 2 DIMM slots
Motherboard mATX Intel Atom C2358, System-on-Chip - Up to 16GB DDR3 1333MHz (2x 240-pin DDR3 DIMM Socket) - On-Board : SATA3 / SATA2, 7 Gigabit LAN, IPMI, VGA (Retail Box)
1. Intel® Atom® Processor C2358 Single Socket FCBGA-1283 supported, CPU TDP support 7W TDP
2. System on Chip
3. 16GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 2 DIMM slots x8 Width only
4. 1 PCI-E 2.0 x4 (in x8 slot)
5. 1 VGA port
6. SoC controller for 2 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
7. Quad LAN with Intel® C2000 SoC LAN Bypass Dual LAN with Intel® Ethernet Controller I350-AM2 LAN Bypass Single LAN with Intel® Ethernet Controller I210-AT Management Port with shared IPMI
Extra Specifications for Supermicro A1SRM-LN7F-2358 Motherboard mATX Intel Atom C2358 SoC, up to 16GB DDR3, SATA3 / SATA2, 7Gi gabit LAN, VGA
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| ASPEED AST2400 BMC | ||
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT, Management Port with Shared IPMI | |
| Quad LAN with Intel® C2000 SoC, LAN Bypass | ||
| Dual LAN with Intel® Ethernet Controller I350-AM2, LAN Bypass | ||
| SATA | 2 SATA3 (6 Gbps) ports; RAID 0/1 | |
| SoC controller for 2 SATA2 (3 Gbps) ports | ||
| Graphics | 1 ASPEED AST2400 BMC port(s) | |
| System Memory | ||
| DIMM Sizes | N/A | |
| Memory Capacity | 2 DIMM slots | |
| 16GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz | ||
| Memory Voltage | 1.35V | |
| 1.5V | ||
| Memory Type | N/A | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) port(s) | |
| 2 SATA2 (3Gbps) port(s) | ||
| DOM | 1 Super DOM (Disk on Module) port with build power | |
| LAN | 7 RJ45 Gigabit Ethernet LAN ports | |
| Others | 1 Pair LAN Bypass Ports | |
| USB | 7 USB 2.0 port(s) (2 via header; 1 Type A; 4 rear) | |
| Video Output | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| 2 fast UART 16550 Serial | ||
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| ACPI 5.0 | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Power Configurations | ACPI Power Management | |
| Software | SuperDoctor® 5, NMI, SUM , IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| Product SKUs | ||
| Product SKUs | MBD-A1SRM-LN7F-2358 | |
| Physical Stats | ||
| Form Factor | mATX | |
| Dimension | 8" x 9.6" (20.32cm x 24.38cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor C2358 | |
| Single Socket FCBGA-1283 supported, CPU TDP supports Up to 7W TDP | ||
| Core | Up to 2 cores, 2 threads | |
| Note | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 2.0 x4 (in x8 slot) | |
| M.2 | ||
| PC Health Monitoring | ||
| Voltage | System temperature, System level control, Supports system management utility, Memory, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages | |
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Temperature | CPU thermal trip support | |
| FAN | 3x 4-pin fan headers (up to 3 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Overheat LED indication | ||
| Other Features | WOL, UID, System level control, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, Intel® QuickAssist Technology, 4-pin 12v DC power connector | |
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| I/O Shield | MCP-260-00079-0N | $ 20.00 | 0 | 1U I/O Shield for A1SRM-LN7F/LN5F in SC510 Chassis | ||
| I/O Shield | MCP-260-00085-0B | $ 21.00 | 0 | 1U I/O Shield for A1SRM-LN7F/LN5F in SC813/SC512 Chassis |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
