- Supermicro A1SRM-LN7F-2758 Motherboard mATX Intel Atom C2358 SoC, up to 64GB DDR3, SATA3 / SATA2, 7 Gigabit LAN, VGA

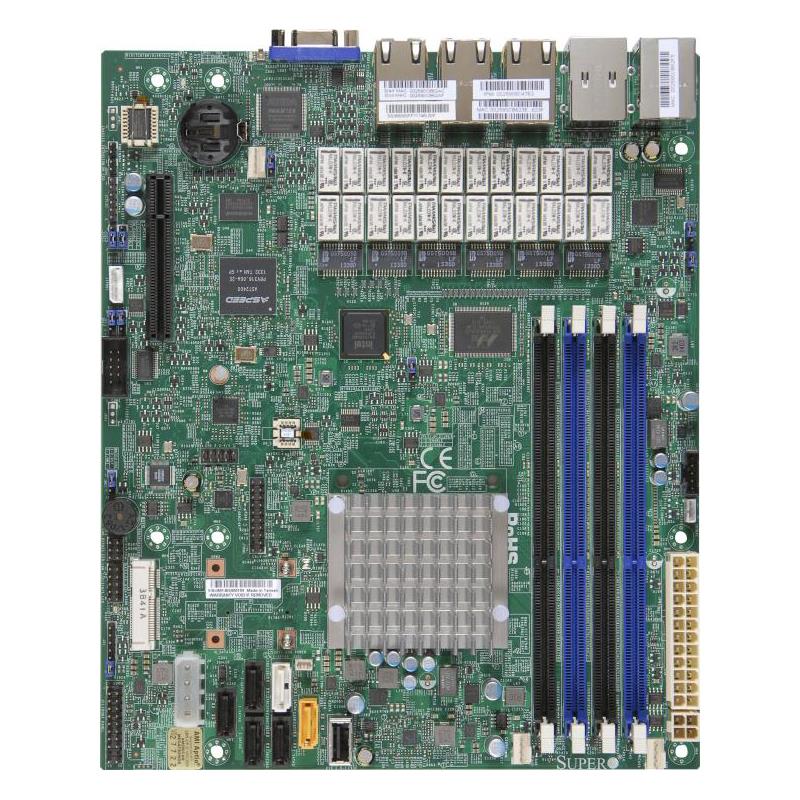

Supermicro A1SRM-LN7F-2758 Motherboard mATX Intel Atom C2358 SoC, up to 64GB DDR3, SATA3 / SATA2, 7 Gigabit LAN, VGA
• 1x SATA DOM and 1x SuperDOM
• Intel Atom Processor C2758; 8-Core
• Up to 64GB DDR3 1600MHz Memory
• 7x GbE LAN with shared LAN IPMI 2.0
Motherboard mATX Intel Atom C2358, System-on-Chip - Up to 64GB DDR3 1333MHz (4x 240-pin DDR3 DIMM Socket) - On-Board : SATA3 / SATA2, 7 Gigabit LAN, IPMI, VGA (Retail Box)
• 7x USB 2.0 ports
• IPMI 2.0 with shared LAN
• 1x PCI-E 2.0 x4 (in x8) slot
• 12V DC or ATX Power options
• 2x SATA3 ports, 4x SATA2 ports
• Operating Temperature: 0°C - 60°C
• Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM
• Intel® Atom processor C2758, SoC, (Rangeley), 20W 8-Core, 2.4GHz
• 7x GbE LAN including 6 ports LAN bypass (SW programmable) ports with SoC I354, I350-AM2 and I210-AT
Extra Specifications for Supermicro A1SRM-LN7F-2758 Motherboard mATX Intel Atom C2358 SoC, up to 64GB DDR3, SATA3 / SATA2, 7 Gigabit LAN, VGA
| Main Specifications | ||
| Dimensions (WxDxH) | 8.0" x 9.6" (20.32cm x 24.38cm) | |
| Form Factor | mATX | |
| Product Type | Atom Board | |
| Processor | ||
| Installed Brand | Intel Atom Processor C2758 (formerly Rangeley) | |
| CPU TDP 20W (8-Core), 2.4GHz | ||
| Processor Sockets | FCBGA 1283 | |
| On-Board Devices | ||
| Chipset | System-on-Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Aspeed AST 2400 BMC | ||
| Network Controllers | Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass | |
| Single GbE LAN w/ Intel i210-AT | ||
| Dual GbE LAN w/ Intel Ethernet controller i350-AM2 - 1 pair LAN bypass | ||
| USB | C2000 SoC | |
| 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) | ||
| Video | BMC integrated Aspeed AST2400 | |
| System Memory | ||
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB | |
| Memory Capacity | 4x 240-pin DDR3 UDIMM slot - Supports up to 64GB DDR3 ECC or non-ECC memory | |
| Memory Voltage | 1.5 V, 1.35 V | |
| Cache Memory | ||
| Memory Type | 1600/1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only | |
| Input / Output | ||
| SATA | 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports | |
| SoC SATA3 (6Gbps), SATA2 (3Gbps) | ||
| DOM | 1x SATA DOM (Disk on Module) power connector | |
| 1x SuperDOM Supermicro SATA DOM with built-in power connector | ||
| LAN | 7x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0 | |
| Others | TPM 1.2 header | |
| Serial Port / Headers | 2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header) | |
| VGA | 1x VGA Port | |
| Chassis Optimized for | ||
| 1U Chassis | SC510-203B | |
| Important Chassis Notes | To support the new generation Intel Xeon processor-based motherboards, Revision N chassis is recommended. | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x PCI-E 2.0 x4 (in x8) slot | |
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), DMI 2.3, ACPI 5.0, USB Keyboard support, SMBIOS 2.7.1, UEFI | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS | |
| Management | ||
| Power Configurations | ACPI / ACPM Power Management, Main Switch Override Mechanism, Power-on mode for AC power recovery | |
| Software | IPMI (Intelligent Platform Management Interface) v2.0, SuperDoctor 5, Watch Dog, NMI, SUM | |
| Environmental Parameters | ||
| Operating Temperature | 0C to 60C | |
| Parts List | ||
| Cables | CBL-0044L | |
| I/O Shield | MCP-260-00084-0N | |
| Motherboard | MBD-A1SRM-LN7F-2758 -B | |
| Miscellaneous | ||
| Compatibility | SYS-5018A-TN7B | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
