- Supermicro CSE-101S Mini-ITX Chassis NO Power Supply - Optional Power Supply - Supports Dual / Single Intel / AMD Processors (SC101S)

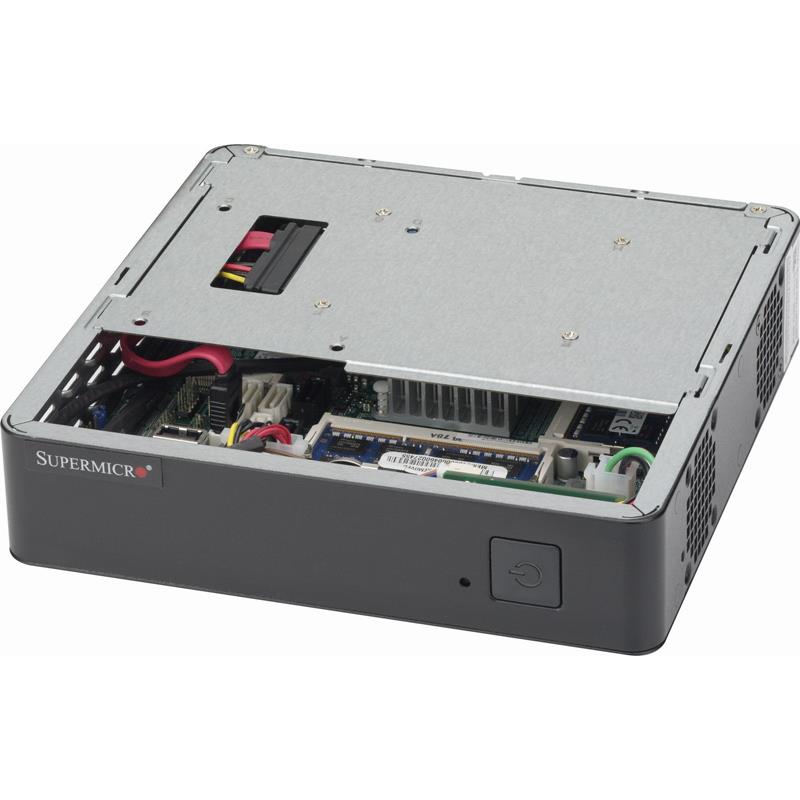

Supermicro CSE-101S Mini-ITX Chassis NO Power Supply - Optional Power Supply - Supports Dual / Single Intel / AMD Processors (SC101S)
Mini-ITX Chassis NO Power Supply - Supports motherboard up to 6.75in x 6.75in - Optional 60W/80W DC-DC Power Adapter or DC/DC Power converter board - Supports dual / single Intel / AMD processors - 1x Fixed drive bay - SC101S (Black)
1. Slim & Space-saving 1U Mini-ITX Chassis Design
2. Standard Mini-ITX MB form factor 6.7" x 6.7"
3. 1x 2.5" internal HDD support (Design for 9.5mm thickness HDD)
4. 1x 4cm Cooling Fan
5. VESA/Wall-mount ready
Extra Specifications for Supermicro CSE-101S Mini-ITX Chassis NO Power Supply - Optional Power Supply - Supports Dual / Single Intel / AMD Processors (SC101S)
| Processor Support | ||
| Processor Support | Single Intel® and AMD processors | |
| Power Supply | ||
| Power Supply | Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board | |
| Certification | N/A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| Operating Environment (System) | ||
| Operating Temperature Range | 0°C - 40°C (32°F - 104°F) | |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F 140°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | Mini-ITX Chassis for motherboard support size: (Mini-ITX 6.75" x 6.75") | |
| Dimensions | ||
| Height | 1.75 (44.45 mm) | |
| Width | 7.68" (195 mm) | |
| Depth | 7.68" (195 mm) | |
| Net Weight | 2.76 lbs (1.25 kg) | |
| Gross Weight | 7.5 lbs (3.4 kg) | |
| Packaging (W x H x L) | 15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm) | |
| Available Color | Black | |
| Drive Bays | ||
| Drive Bays | 1 x 2.5" fixed drive bay | |
| Systems Cooling | ||
| Fans | 1 x 4cm high performance PWM fan(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-0296L | $ 17.00 | 0 | 9" 4 pin fan extension cord, for fan guide pin at 1&3 or 1&4 | ||
| IO shield | MCP-260-10102-0B | $ 26.00 | 0 | CSE-101S I/O Shield for A1SAi And A1SRi | ||
| IO shield | MCP-260-10104-0B | 0 | CSE-101S I/O Shield for H9SKV | |||
| Power Adapter | MCP-250-10117-0N | $ 50.50 | 0 | 60W DC power adapter with US power cord 18AWG 6ft | ||
| IO shield | MCP-260-10105-0B | 0 | CSE-101S I/O Shield for X11SBA /w COM | |||
| Power Adapter | MCP-250-10122-0N | $ 87.50 | 0 | 84W DC power adapter with US power cord 18AWG 6ft | ||
| Chassis parts | MCP-290-10108-0B | 0 | Dual system tray for Mini-ITX system |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
