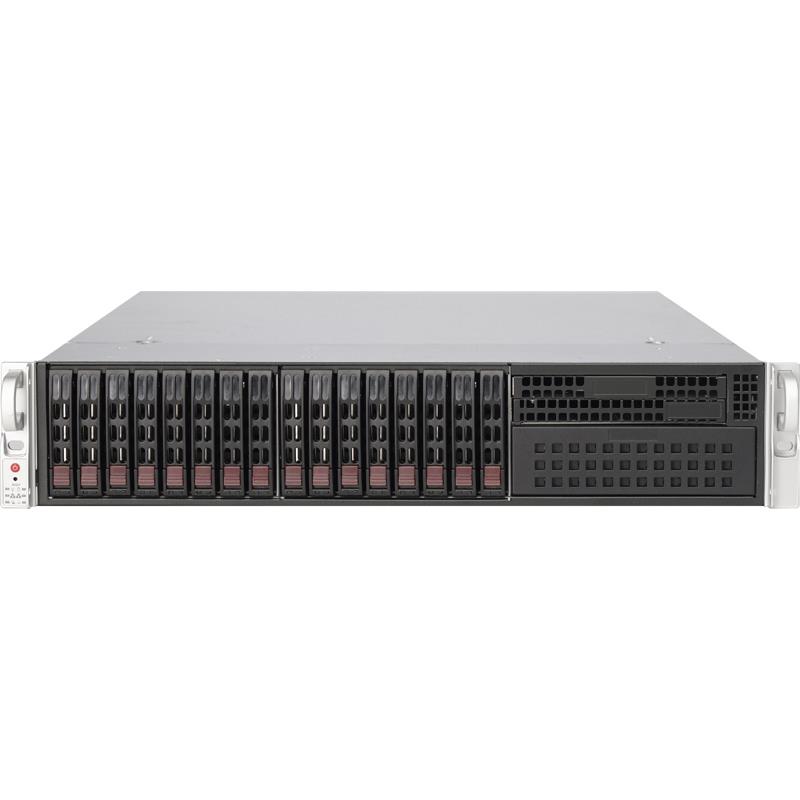

- Supermicro CSE-213AC-R920LPB Server Chassis 2U Rackmount
Supermicro CSE-213AC-R920LPB Server Chassis 2U Rackmount
2U Chassis: Supports E-ATX, ATX motherboards
Efficient Power: 1U 920W Platinum Certified Power Supply
Drive Bays: 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay
High-Speed Connectivity: 16-port 2U SAS3 12Gbps direct-attached backplane
Rackmount 2U Redundant 920W Power Supply 80 Plus Platinum - 16x 2.5in SAS/SATA Hot-Swap Drive Bays with SES-II, 7 low-Profile Expansion Slots, DVD-ROM (Optional), Mounting Rails Kit - SC213AC-R920LPB (Black)
1. 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
2. 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay
3. 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
4. 1U 920W Redundant Platinum Level Power Supply
5. 7 low-profile expansion slot(s)
6. 3 x 8cm high-performance PWM fan(s)
Extra Specifications for Supermicro CSE-213AC-R920LPB Server Chassis 2U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 920W Redundant Platinum Level Power Supply | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 920W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 75A / Min: 0.5A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | -12V Max: 0.6 | |
| +5V Max: 30 | ||
| +3.3V Max: 24 | ||
| PDB-PT216-8824 | ||
| O/P: 12V/100 | ||
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 24.8" (630 mm) | |
| Gross Weight | 60 lbs (27.22 kg) | |
| Packaging (W x H x L) | 29" (737 mm) x 11" (279 mm) x 38.7" (983 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 16 x 2.5" hot-swap SAS3/SATA drive bay | |
| 1 x 5.25" drive bay | ||
| Backplane | ||
| Backplane | 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| Systems Cooling | ||
| Fans | 3 x 8cm high-performance PWM fan(s) | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 | ||
| Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | Black Front Bezel for 826 chassis | ||
| Tray(s) | MCP-290-00036-0B | $ 19.50 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| HDD Kit | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| DVD-ROM / DVD-RW | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Cable | CBL-SAST-0508-01 | $ 31.50 | 0 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF | ||
| Cable | CBL-SAST-0568 | $ 29.50 | 0 | Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF | ||
| Cable | CBL-SAST-0591 | $ 28.00 | 0 | cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
