• 600W Redundant PS w/PMBus; short depth
• SAS or enterprise SATA HDD only recommended
• Chassis; support motherboard sizes ATX/Micro ATX
• Backplane support up to 4x 3.5-inch SAS/SATA HDD

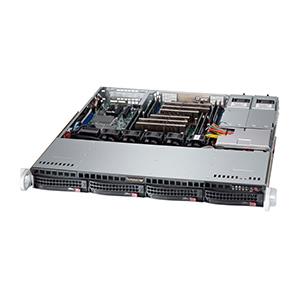

Rackmount 1U 600W Redundant Power Supply for motherboard up to 12in x 10in, for up Dual CPU Intel or AMD - 4x 3.5in Hot-Swap SAS / SATA Bays, 1 Full-Height AOC Expansion Slot, Rails Kit (Black)
• 600W Redundant power supplies
• 1x Full-height AOC expansion slot
• 1x USB / COM Port tray in slim DVD bay (optional)
• 4x 3.5 Hot-swap SAS2 (6Gb/s) / SATA Drive Bays
• 4x 40x28mm high-efficiency fans (2 more optional; 6x fans maximum)
• Applications: data center, appliance server, space critical application, industrial PC
| Main Specifications | ||
| Dimensions (HxWxD) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 19.85" (503mm) | |
| Color | Black | |
| Form Factor | 1U chassis support for motherboard sizes - Micro ATX9.6" x 9.6" or ATX 12" x 10" | |
| Device Type | SuperChassis | |
| Weight | 33.5 lbs (15.2kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED | |
| Drive Bays | ||
| Hot-swap | 4x 3.5" hot-swap SAS/SATA - SAS or enterprise SATA HDD only recommended | |
| Peripheral Drives | CSE-PT93L-B | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | 1x slim DVD-ROM drive bay | |
| Input / Output | ||
| Others | Front USB/COM access (optional) | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x SAS / SATA Backplane | |
| System Cooling | ||
| Cooling Components | 4x 40x28mm PWM fan, 2x fans for AOC cooling | |
| Fans | FAN-0154L4 | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x Full-height AOC expansion slot | |
| Power Supply | ||
| Power Supply | 600W high-efficiency redundant power supplies with PMBus | |
| MCP-250-00016-0V, PWS-606P-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Europe/CE Mark, EN 60950/IEC 60950-Compliant | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Backplane | BPN-SAS-815TQ-O-P | |
| Drive Trays | MCP-220-00075-0B | |
| Mounting Rails | MCP-290-00102-0N, MCP-290-00110-0N, MCP-290-00108-0N | |
| Parts List | ||
| Cables | CBL-0186L, CBL-0157L, CBL-0071L | |
| Standard Parts List | ||
| Chassis | CSE-813MFTQ-R606CB | |
| Fan Holder | MCP-320-00031-0B | |
| Front Panel | FP813-D | |
| Power Distributor | PDB-PT813M-2424 | |
| Rear Window | MCP-240-00086-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
