• Support Dual; single Intel/AMD processors
• 4x 3.5 hot-swap SAS/SATA drive bay with SES2
• Chassis support for motherboard size ATX/E-ATX
• 4-port 1U TQ backplane (W/ enclosure management)

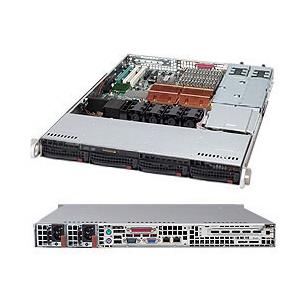

Rackmount 1U 650W Redundant Power Supply, for Up to Dual Intel / AMD Processors - 4x 3.5in Hot-Swap SAS/SATA Drive Trays, DVD-ROM (Optional), Floppy Drive (Optional), Rails Kit - (Black)
• 4x Counter-rotating Fans
• 1x Slim DVD ROM Drive (optional)
• 4x 3.5 Hot-swap SAS/SATA Drive Bays
• 1x Full-size, Full-length I/O Expansion Slot
• Power Switch, Reset Button & 5 LED Indicators
• 650W High efficiency Redundant DC-DC Power Supplies
• Full SES2 support is available with SAS motherboards and other compatible components.
| Main Specifications | ||
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) | |
| Color | Black | |
| Form Factor | 1U chassis support for max. motherboard size - 12" x 13" | |
| Device Type | SuperChassis | |
| Weight | 36 lbs (16.4kg) | |
| Processor | ||
| Compatible Processors | Supports dual Intel / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED | |
| Networking | ||
| Ports | 2x USB & DB9 COM port tray (Optional - in place of floppy drive) | |
| Drive Bays | ||
| Hot-swap | 4x 3.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended | |
| Peripheral Drives | CSE-PT93L-B | |
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane | |
| System Cooling | ||
| Fans | FAN-0086L4 | |
| 4x 4cm Counter-rotating PWM fans | ||
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x full-height, full-length PCI expansion slot (Riser Card Required) | |
| Power Supply | ||
| Power Supply | 650W DC-DC high-efficiency Redundant power supply | |
| PWS-654-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC | |
| Canada - CUL listed | ||
| Germany - TUV Certified | ||
| Europe/CE Mark | ||
| EN 60950/IEC 60950-Compliant | ||
| China - CCC Mark | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Parts List | ||
| I/O Shield | MCP-260-00024-0N | |
| Cables | CBL-0157L, CBL-0180L-01, CBL-0071L | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-19002-0N | |
| Backplane | BPN-SAS-815TQ-O-P | |
| Drive Trays | MCP-220-00075-0B | |
| Mounting Rails | MCP-290-00105-0N, MCP-290-00101-0N, MCP-290-00109-0N | |
| Standard Parts List | ||
| Chassis | CSE-815TQ-R654CB | |
| Fan Holder | CSE-PT0135, MCP-340-00035-0B | |
| Front Panel | FP813-D | |
| Power Distributor | PDB-PT112-2424 | |
| Rear Window | MCP-240-00086-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
