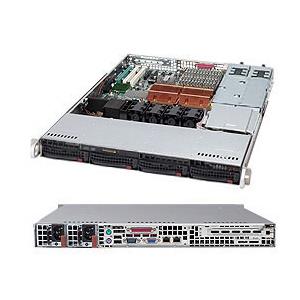

- Supermicro CSE-815TQ-R654CB Server Chassis 1U Rackmount
Supermicro CSE-815TQ-R654CB Server Chassis 1U Rackmount
• Support Dual; single Intel/AMD processors
• 4x 3.5 hot-swap SAS/SATA drive bay with SES2
• Chassis support for motherboard size ATX/E-ATX
• 4-port 1U TQ backplane (W/ enclosure management)
Rackmount 1U 650W Redundant Power Supply, for Up to Dual Intel / AMD Processors - 4x 3.5in Hot-Swap SAS/SATA Drive Trays, DVD-ROM (Optional), Floppy Drive (Optional), Rails Kit - (Black)
1. 1U chassis support for motherboard size ATX 12" x 10", E-ATX 12" x 13"
2. 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 SAS or enterprise SATA HDD only recommended
3. 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
4. 1U 650W -48VDC input Redundant power supply, 54.5mm width
5. 1 full-height & full-length expansion slot(s) (Riser Card Required)
6. 4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control
Extra Specifications for Supermicro CSE-815TQ-R654CB Server Chassis 1U Rackmount
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | CSE-815TQ-R654CB | |
| Form Factor | ||
| Form Factor | 1U chassis support for motherboard size ATX 12" x 10", E-ATX 12" x 13" | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Gross Weight | 36 lbs (16.33 kg) | |
| Packaging (W x H x L) | 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1x Full-height, Full-length expansion slot(s) (Riser Card Required) | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 4x 3.5" hot-swap SAS/SATA drive bay with SES2 | ||
| Backplane | ||
| Backplane | 4-Port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1x slim DVD-ROM drive bay | |
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Fan Fail/System Over Heat LED | ||
| Ports | (Optional-in place of floppy drive) | |
| Systems Cooling | ||
| Fans | 4x 4cm heavy duty counter-rotating with optimal fan(s) speed control | |
| Power Supply | ||
| Power Efficiency | 90% | |
| Total Output Power and Input | 650W with Input -44 - -72Vdc | |
| Dimensions (L x W x H) | 320 x 54.5 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 53.28A / Min: 0A (-44Vdc - -72Vdc) | |
| +5Vsb | Max: 3A / Min: 0A | |
| Power Distributor | +5V Max: 25A | |
| +3.3V Max: 25A | ||
| -12V Max: 0.6A | ||
| O/P: 12V/54 | ||
| PDB-PT112-2424 | ||
| Certification | Typical 90%+ | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
