- Supermicro CSE-815TQ-R706WB Server Chassis 1U Rackmount

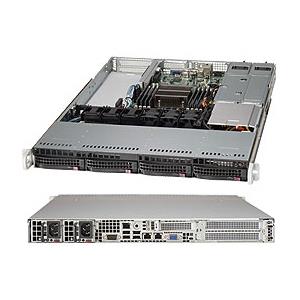

Supermicro CSE-815TQ-R706WB Server Chassis 1U Rackmount
• 1U Chassis w/ 4-port 1U TQ backplane
• Full SES2 support for SAS motherboards
• 4x 3.5 Hot-swap SAS/ SATA Drive Bays
• Optimized for WIO (W series) motherboards
Rackmount 1U 700W/750W 80 Plus Redundant Platinum Level Power Supply, for Up to Dual Intel / AMD Processors, Optimized for WIO (W Series) motherboards - 4x 3.5in Hot-Swap SAS/SATA Drive Trays, Slim DVD-ROM (Optional), Slim Floppy Drive (Optional), Rails Kit - (Black)
• Optimize for WIO (W series) MB
• 1x Slim DVD-ROM Drive (optional)
• 4x 4cm Counter-rotating PWM fans
• 4x 3.5 Hot-swap SAS/ SATA Drive Bays
• Power Switch, Reset, UID Button & 5 LED Indicators
• 2x Full-height I/O Expansion slots & 1x Low-profile I/O Expansion slot
• Full SES2 support is available with SAS motherboards and other compatible components
• 700W/750W redundant Platinum Level (PWS-706) or Gold level (PWS-704) high-efficiency power supplies
Extra Specifications for Supermicro CSE-815TQ-R706WB Server Chassis 1U Rackmount
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) | |
| Color | Black | |
| Form Factor | 1U chassis for motherboard support size of 12" x 13" | |
| Optimized for WIO (W series) motherboards | ||
| Weight | 36 lbs (16.3kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button, UID button | |
| LEDs | 2x Network activity LEDs, Fan Fail/System Over Heat LED, Hard drive activity LED, Power LED, Unit Identification (UID) LED | |
| Drive Bays | ||
| Hot-swap | SAS or enterprise SATA HDD only recommended | |
| 4x 3.5" SAS / SATA Hot-swap drive trays | ||
| Peripheral Drives | CSE-PT93L-B | |
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane | |
| System Cooling | ||
| Fans | 4x 40x56mm counter-rotation PWM fan | |
| FAN-0156L4, FAN-0086L4 | ||
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2x Full-height Expansion Slots (Riser Card Required) | |
| 1x Low-profile Expansion Slot (Riser Card Required) | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C | |
| PWS-706P-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, China - CCC Mark, Europe/CE Mark, EN 60950/IEC 60950-Compliant, Germany - TUV Certified | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Standard Parts List | ||
| Accessory | MCP-120-00053-0N, MCP-120-00030-0N | |
| Chassis | CSE-815TQ-R706WB | |
| Fan Holder | MCP-340-00035-0B, CSE-PT0135 | |
| Front Panel | FP815U | |
| Power Distributor | PDB-PT112-2420 | |
| Rear Window | MCP-240-00098-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-19002-0N | |
| Backplane | BPN-SAS-815TQ-O-P | |
| Drive Trays | MCP-220-00075-0B | |
| Mounting Rails | MCP-290-00054-0N | |
| Parts List | ||
| Cables | CBL-0157L, CBL-0180L-01, CBL-0335L | |
| Miscellaneous | ||
| Compatible With | X10DRW-E, X10DRW-ET, X10DRW-i, X10DRW-iT, X10DRW-N, X10DRW-NT, X10SRW-F | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
