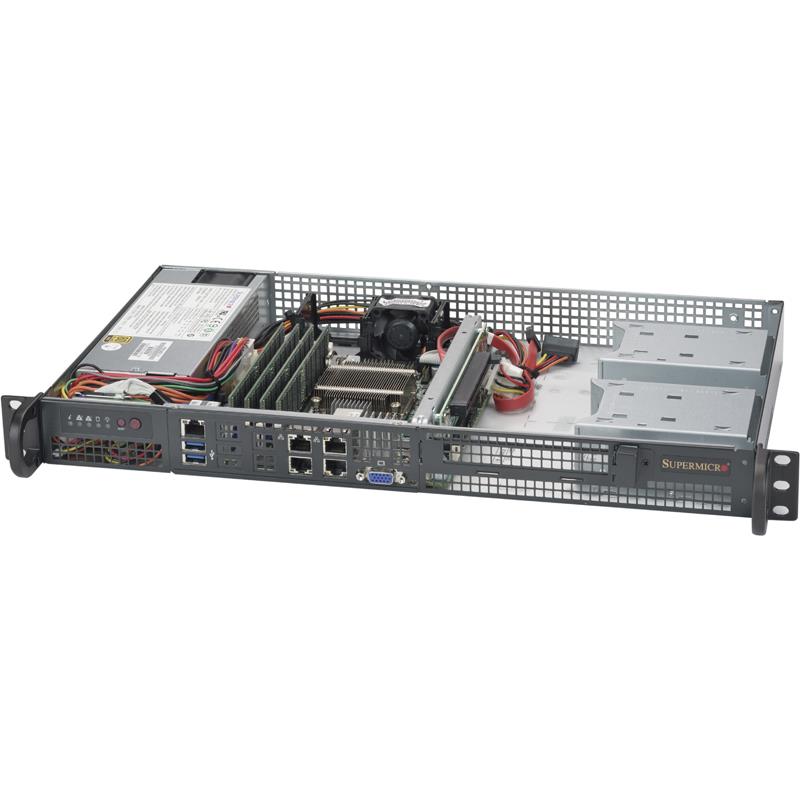

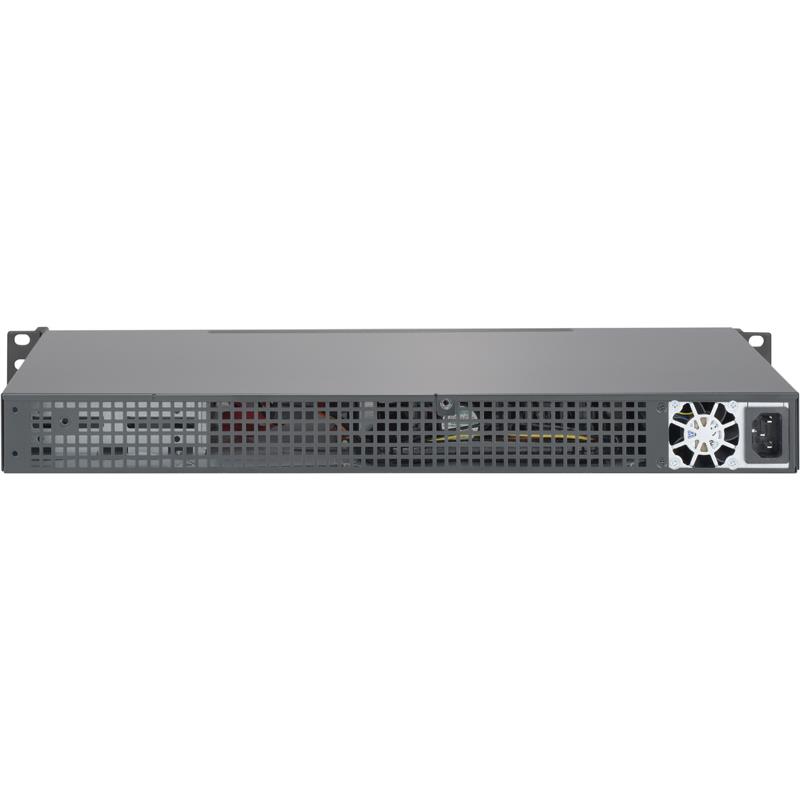

Supermicro SYS-5018D-FN4T 1U Barebone Embedded Intel Processor

• Fast to build and deploy
• Best Performance per Watt
• Intel Xeon CPU D-1541 8-Core; 45W
• Front I/O; Space-efficient; compact design

Barebone 1U Intel Xeon D-1541 FCBGA 1667 8-Core System-on-Chip Processor - Up to 128GB DDR4 ECC RDIMM (4x DDR4 DIMM sockets) - On-Board : SATA3, 2x 10GbE LAN via SoC, 2x Gigabit LAN via Intel i350-AM2, IPMI 2.0, VGA - Includes : 2x 3.5in Drive Bays (or optionally) 4x 2.5in SATA3 HDD Bays, 1x Riser Card (RSC-RR1U-E16), 200W 80 Plus Gold Certified Power Supply, X10SDV-8C-TLN4F Motherboard, CSE-505-203B 1U Chassis - (Black)



    Option not available


    This combination does not exist.

    Add to Cart

    • DOM power connector
    • 200W Low-noise power supply w/ PFC
    • Dual 10GbE LAN and Intel i350-AM2 dual port GbE LAN
    • 1x PCI-E 3.0 x16, 1x M.2 PCI-E 3.0 x4, M Key 2242/2280slot
    • 2x 3.5 or 4x 2.5 SATA3 drive bays; 3.5 peripheral bay, 2.5 optional
    • Intel Xeon processor D-1540/1541 Single socket FCBGA 1667; 8-Core, 45W
    • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets

    Extra Specifications for Supermicro SYS-5018D-FN4T 1U Barebone Embedded Intel Processor

    Main Specifications
    Built-in Devices Super X10SDV-8C-TLN4F
    Device Type SuperServer
    Dimensions (WxDxH) Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 9.8" (249mm)
    Enclosure Color Black
    Form Factor 1U Rackmount - CSE-505-203B
    Weight Net Weight: 8 lbs (3.62 kg) - Gross Weight: 12 lbs (5.44 kg)
    Built-in Processor Intel® Xeon® processor D-1540/1541
      CPU TDP support 45W
      FCBGA 1667 supported
    System Memory
    DIMM Sizes 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 4x DDR4 DIMM sockets - Supports up to 128GB DDR4 ECC RDIMM, Supports up to 64GB DDR4 ECC/non-ECC UDIMM
    Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM
    Memory Voltage 1.2 V
    On-Board Devices
    Graphics BMC integrated ASPEED AST2400
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Network Controllers Dual LAN via Intel® i350-AM2 Gigabit Ethernet
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
      Dual LAN via SoC 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
    SATA SoC controller for SATA3 (6Gbps) ports
    Input / Output
    DOM 1x SATA DOM (Disk on Module) power connector
    LAN 2x RJ45 Gigabit Ethernet LAN ports, 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port
    Others TPM 1.2 header
    SATA 6x SATA3 (6Gbps) ports
    Serial Ports 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
    USB 2x USB 3.0 ports (rear)
    VGA 1x VGA Port
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Information LED (temp., status)
    Expansion / Connectivity
    Expansion Slots Total (Free) 1x PCI-E 3.0 x16 slot
      1x M.2 PCI-E 3.0 x4, M Key 2242/2280
    Drive Bays
    Internal 2x 3.5" or 4x 2.5" internal SATA3 hard drive bays (optional)
    System Cooling
    Fans Passive Heatsink, 40mm chassis fan
    Power Supply
    Certification 80PLUS Gold Certified
    Power Supply 200W Low Noise AC-DC power supply with PFC
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, DMI 2.3, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, Hardware BIOS Virus protection, SMBIOS 2.7.1, UEFI, RTC (Real Time Clock) Wakeup
    BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS
    Operating Environment / Compliance
    RoHS RoHS Compliant
    Environmental Specifications
    Non-operating Relative Humidity 5% to 95% (non-condensing)
    Non-operating Temperature -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity 8% to 90% (non-condensing)
    Operating Temperature 10°C to 35°C (50°F to 95°F)
    Parts List - (Items Included)
    Air Shroud 1x MCP-310-50501-0B
    Cable(s) 1x CBL-0061L
    Fans 1x FAN-0065L4
    Label 1x LBL-0997
    Manual 1x MNL-1775-QRG
    Motherboard / Chassis 1x MBD-X10SDV-8C-TLN4F / 1x CSE-505-203B
    Parts 1x MCP-120-00063-0N, 1x MCP-260-00085-0B
    Power Supply 1x PWS-203-1H
    Riser Card 1x RSC-RR1U-E16
    Other Features Front I/O, Space-efficient, compact design, Less than 10" depth, Best Performance per Watt, Fast to build and deploy
