- Supermicro SYS-5018D-FN4T 1U Barebone Embedded Intel Xeon D-1541 Processor

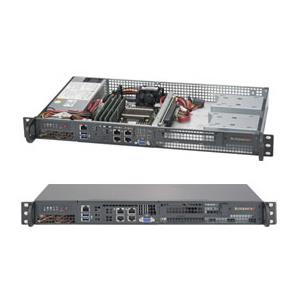

Supermicro SYS-5018D-FN4T 1U Barebone Embedded Intel Xeon D-1541 Processor
• Front I/O
• Space-efficient, compact design
• Less than 10" depth
• Best Performance per Watt
• Fast to build and deploy
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-1541 Processor, 2.10GHz 8-Core/16 Thread. Up to 128GB DDR4 ECC RDIMM (4x DDR4 DIMM sockets) - System-on-Chip, On-Board: SATA3, 2x 10GbE LAN via SoC, 2x Gigabit LAN via Intel i350-AM2, IPMI 2.0, VGA - Includes: 2x 3.5in Drive Bays (or optionally) 4x 2.5in SATA3 HDD Bays, 1x Riser Card (RSC-RR1U-E16), 200W 80 Plus Gold Certified Power Supply, X10SDV-8C-TLN4F Motherboard, CSE-505-203B 1U Chassis - (Black)
This product is no longer available.
1. Intel® Xeon® processor D-1541, Single socket FCBGA 1667; 8-Core, 45W
2. 2x 3.5" or 4x 2.5" SATA3 drive bays; 3.5" peripheral bay, 2.5" optional
3. 1x PCI-E 3.0 x16, 1x M.2 PCI-E 3.0 x4, M Key 2242/2280slot
4. Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
5. Dual 10GbE LAN and Intel® i350-AM2 dual port GbE LAN
6. DOM power connector
7. 200W Low-noise power supply w/ PFC
Extra Specifications for Supermicro SYS-5018D-FN4T 1U Barebone Embedded Intel Xeon D-1541 Processor
| Motherboard | ||
| Motherboard | Super X10SDV-8C-TLN4F | |
| Processor/Cache | ||
| CPU | System-on-Chip | |
| Intel® Xeon® processor D-1541 | ||
| FCBGA 1667 supported | ||
| CPU TDP support 45W | ||
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC RDIMM | ||
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SoC controller for SATA3 (6Gbps) ports | |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Dual LAN via SoC 10GBase-T | ||
| Dual LAN via Intel® i350-AM2 Gigabit Ethernet | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | BMC integrated ASPEED AST2400 | |
| Input / Output | ||
| SATA | 6x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| 2x RJ45 10GBase-T ports | ||
| USB | 2x USB 3.0 ports (rear) | |
| Serial Port | 1x COM port (header) | |
| DOM | 1x SATA DOM (Disk on Module) power connector | |
| VGA | 1x VGA Port | |
| Others | TPM 1.2 header | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-505-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Weight | Net Weight: 8 lbs (3.62 kg) | |
| Gross Weight: 12 lbs (5.44 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-E | 1x PCI-E 3.0 x16 slot slot | |
| 1x M.2 PCI-E 3.0 x4, M Key 2242/2280 | ||
| Drive Bays | ||
| HDD | 2x 3.5" or 4x 2.5" internal SATA3 hard drive bays (optional) * | |
| System Cooling | ||
| Fans | Passive Heatsink, 40mm chassis fan | |
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| Hardware BIOS Virus protection | ||
| PCI 2.3 | ||
| UEFI | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5018D-FN4T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10SDV-8C-TLN4F | 1 | Super X10SDV-8C-TLN4F Motherboard | |
| Motherboard / Chassis | CSE-505-203B | 1 | 1U Chassis | |
| Air Shroud | MCP-310-50501-0B | 1 | mylar air shroud for SC504/505 with X10SDV,HF,RoHS/REACH | |
| Cable 1 | CBL-0061L | 1 | SATA,INT,FLAT,31.5CM,26AWG | |
| Parts | MCP-120-00063-0N | 1 | Riser card bracket for slot-7 in SC504 | |
| Fan | FAN-0065L4 | 1 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Label | LBL-0997 | 1 | Fan Warning Label 30x11mm,RoHS/REACH | |
| Manual | MNL-1775-QRG | 1 | SYS-5018D-FN4T, QRG,HF,RoHS/REACH | |
| Parts | MCP-260-00085-0B | 1 | 1U I/O Shield for A1SRM-LN7F on SC510 with EMI Gasket,RoHS/REACH | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Internal 2.5" HDD Tray | MCP-220-00044-0N | $ 18.00 | 0 | Dual 2.5" fixed HDD bracket | ||
| Internal 2.5" HDD Tray | MCP-220-00051-0N | $ 19.50 | 0 | Single 2.5" fixed HDD bracket | ||
| Cable for internal HDD | CBL-0483L | $ 17.00 | 0 | 29cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBL-0211L | $ 20.00 | 0 | Big 4 pin to 3x SATA power cable | ||
| Cable for internal HDD | CBl-0082L | 0 | Y split, big 4 pin to two RA SATA power extension 15cm | |||
| AOC Cooling Fan | FAN-0154L4 | $ 26.00 | 1 | 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan | ||
| AOC Cooling Fan | MCP-320-81302-0B | $ 20.50 | 1 | Fan tray for one 40x28mm fan | ||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
