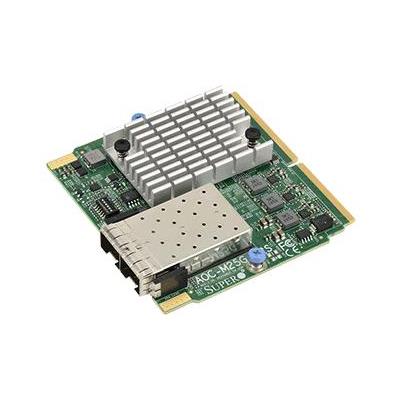

Supermicro AOC-M25G-I2S SIOM 2-Port 25Gb Ethernet Controller Card
SIOM 2-Port 25Gb Ethernet Controller Card with 2 SFP28 ports based on Intel FortVille-25 XXV710. Can be ordered in bundle with Supermicro System ONLY
• Super I/O Module (SIOM) Form Factor
• Intel
®
XXV710 25GbE controller, Dual SFP28 connectors
• Network Virtualization: VXLAN and NVGRE
• Intel
®
Ethernet Flow Director for hardware-based application
traffic steering
• Data Plane Development Kit (DPDK) optimized for efficient
packet processing
• NC-SI for Remote Management
• Asset Management Features
Extra Specifications for Supermicro AOC-M25G-I2S SIOM 2-Port 25Gb Ethernet Controller Card
| Add-on Card | ||
| Add-on Card | The Supermicro AOC-M25G-i2S is one of the most advanced 25GbE controllers in the market. It provides 2-ports of 25GbE SFP28 connectivity in small form factor SIOM and is based on the Intel XXV710 chipset. The 25GbE bandwidth enables rapid networking deployment in an agile data center environment. Supermicro Asset Management and thermal detection give the extra layer of controller health management and peace of mind. For customers who require faster and more reliable networking demands, the AOC-M25G-i2S is an excellent choice to enhance network connectivity in data centers and enterprise environments. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Specifications | ||
| Specifications | • General - Super I/O Module (SIOM) Form Factor - Intel® XXV710 25GbE controller - Dual SFP28 connectors with speed up to 25Gbps per port - Time Sync (IEEE1588) • I/O Features - Intel® Ethernet Flow Director - Intel® XXV710 25GbE controller - MSI-X support - Multiple queues: 1,536 Tx and Rx queues per port - Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities • Virtualization Features - Next-Generation VMDq with up to 256 VMDq VMs supported - SR-IOV - Virtual Machine Load Balancing (VMLB) - VLAN support - VXLAN and NVGRE support • Management Features - Preboot eXecution Environment (PXE) support - iSCSI boot - Asset Management features with thermal sensor - NC-SI for remote management • Advanced Software Features - Teaming support - IEEE 802.3ad (link aggregation control protocol) - IEEE 802.1Q VLANs - IEEE 802.3 2005 flow control support - IEEE 802.1p - Receive Side Scaling • Operation System Support - Windows Server 2008 R2 / 2012 / 20012 R2 / 2016 - Linux Stable Kernel version 2.6/4.x - Linux RHEL 6.9 / 7.3 - Linux SLES 11 SP4 / 12 SP1 - FreeBSD 10.3 / 11 - UEFI 2.1 / 2.3 / 2.4 - VMware vSphere 5.1 / 5.5 - VMware ESXi 6.0 U3 / 6.0 • Power Consumption - Maximum 11.8W • Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Storage humidity: 90% non-condensing relative humidity at 35°C • Physical Dimensions - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-M25G-i2S.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-M25G-i2S.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on the Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Compatibility Matrices | ||
| Servers | Supermicro Servers with SIOM support:https://www.supermicro.com/en/support/resources/aoc/siom | |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm | |
| Supported Platforms | ||
| Servers & Motherboards | Supermicro server systems and motherboards with Super I/O Module slot: MicroLP Compatibility Matrix :https://www.supermicro.com/support/resources/aoc/microLP_compatibility.cfm | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
