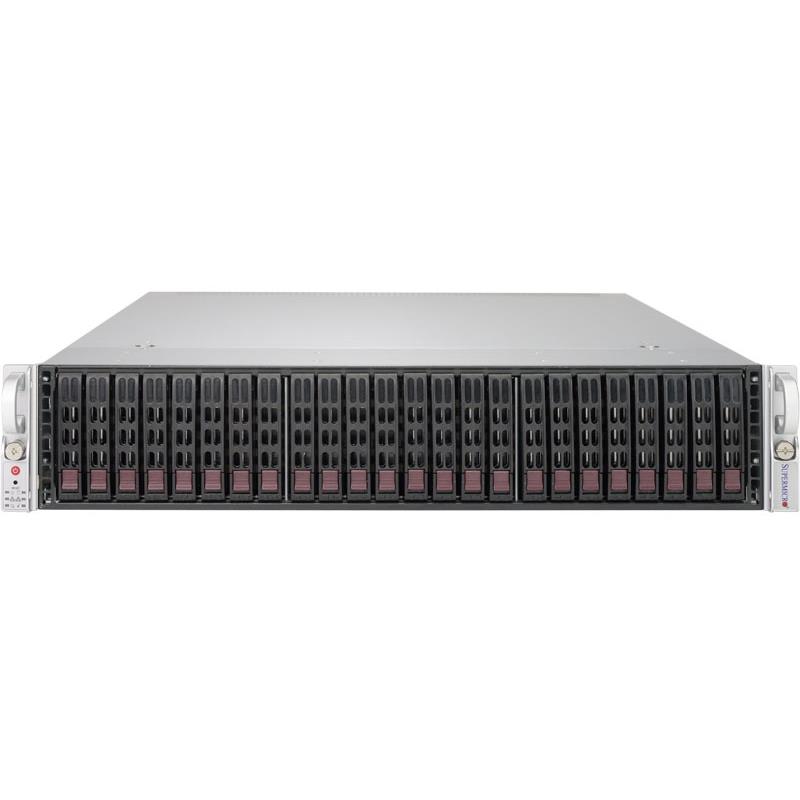

Supermicro SYS-2048U-RTR4 2U Barebone Quad Intel Processor
• 48 DDR4 DIMM Slots, up to 6TB
• Up to 11 PCI-E 3.0 slots
• 4 Hot-Swap NVMe Bays support
• via optional NVMe AOC
• Flexible Connectivity Options

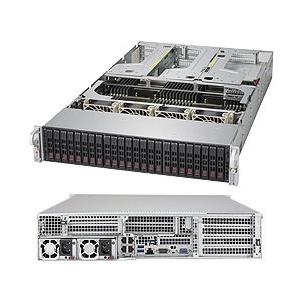

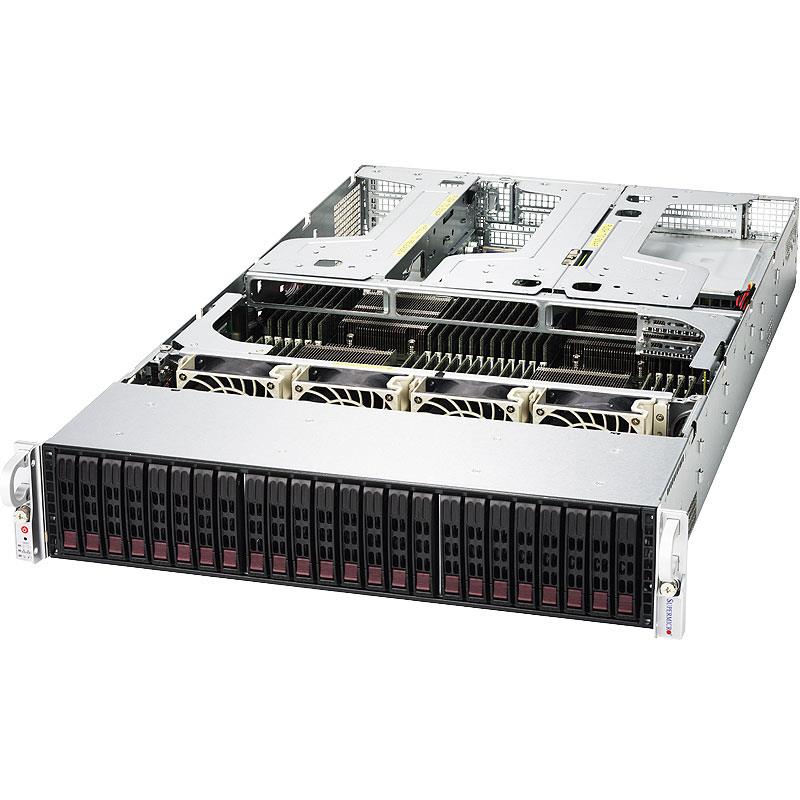

Server 2U Rack up to Quad Intel Xeon E5-4600 v4/v3 Processors, up to 3TB (48x 288-pin DDR4 DIMM slots - On-Board : SATA 6Gbps (RAID), IPMI, VGA - Includes : 10x SATA 6Gbps ports, 24x SAS 12Gb/s ports support via optional Add-on Cards, 4x Hybrid ports with NVMe support via optional AOC, 9x PCI-E 3.0 x8, 2x PCI-E 3.0 x16, 1000W Titanium Level Redundant Power Supply, X10QRH+ Motherboard, CSE-218U-R1K02P 2U Chassis (Black)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 1 HDD installed).

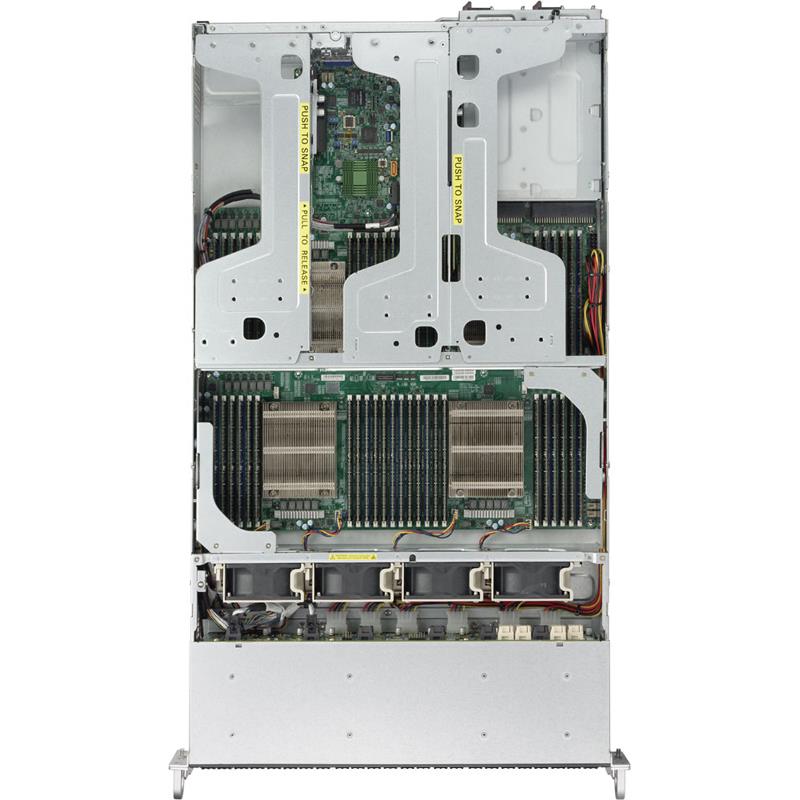

1. Quad Socket R3 (LGA 2011) support Intel® Xeon® processor E5-4600 v4/v3 family (up to 22-Core)
2. Up to 6TB 3DS LRDIMM, up to DDR4-2400MHz; 48 DIMM slots
3. 9 PCI-E 3.0 x8 slots, 2 PCI-E 3.0 x16 slots

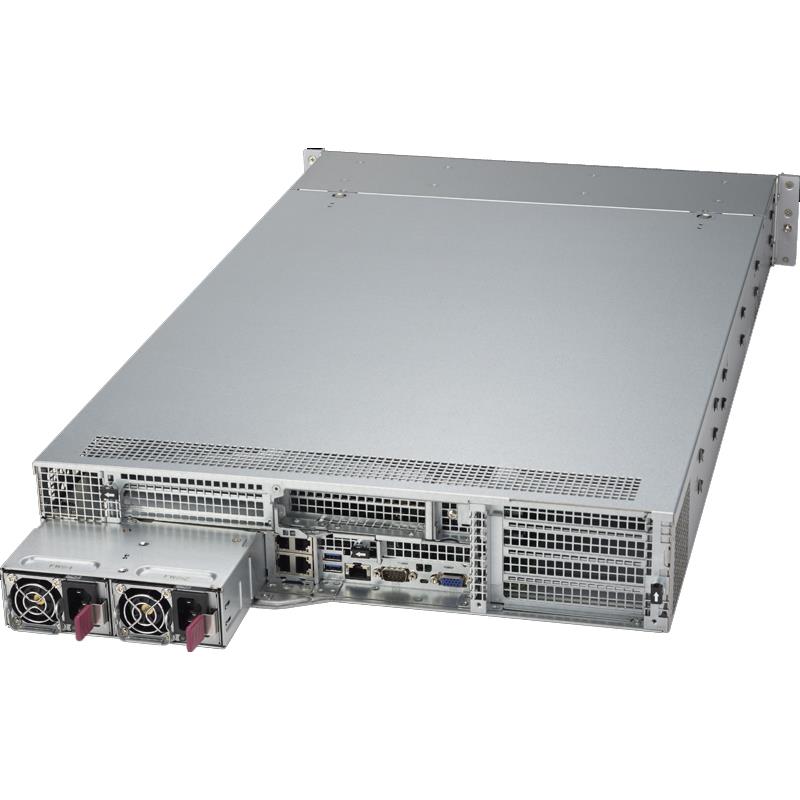

4. 4 GbE + 1 dedicated IPMI LAN ports
5. 24 Hot-swap 2.5" Drive Bays: 4 Hybrid ports with NVMe support via extra AOC
6. 4x 8cm heavy duty fans
7. 1000W High efficiency (96%) Redundant PSU; Titanium Level
Extra Specifications for Supermicro SYS-2048U-RTR4 2U Barebone Quad Intel Processor
| Motherboard | ||

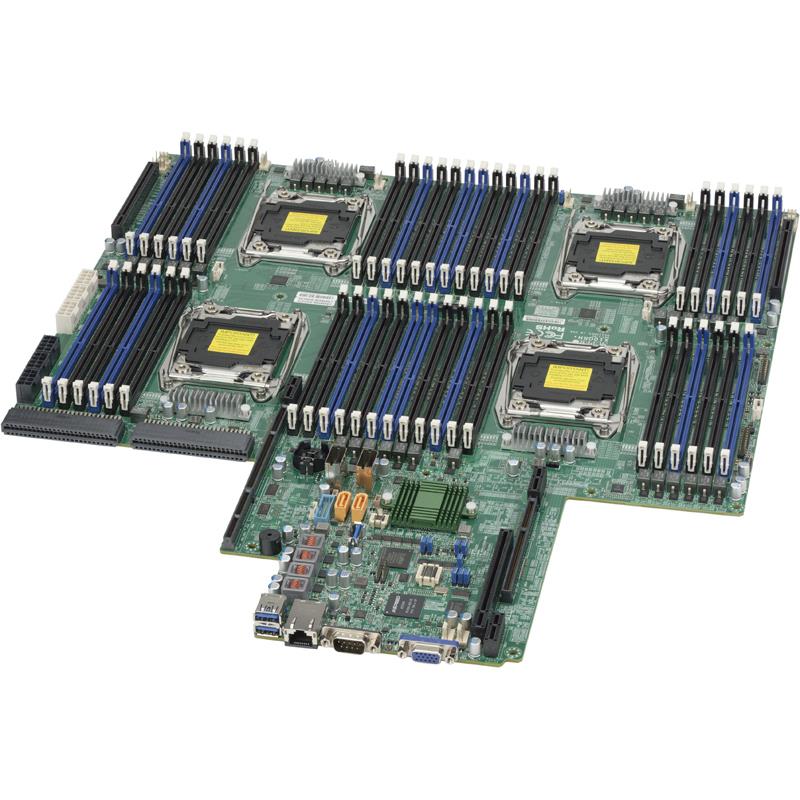

| Motherboard | Super X10QRH+ | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-4600 v4/v3 family (up to 135W TDP) * | |
| Quad Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores / Up to 55MB Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| System Memory | ||
| Memory Capacity | 48x 288-pin DDR4 DIMM slots | |
| Up to 6TB ECC 3DS LRDIMM | ||
| Up to 3TB ECC LRDIMM | ||
| Up to 1.5TB ECC RDIMM | ||
| Memory Type | 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Connectivity | 4x Gigabit Ethernet ports via AOC-2UR66-i4G; Other options | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| SAS | 24 SAS3 ports support via optional Add-on Cards | |
| NVMe | 4 Hybrid ports with NVMe support via AOC | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 4 RJ45 GbE LAN ports | ||
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) | |
| 2 USB 2.0 ports (2 via header) | ||
| Video | 1 VGA Connector | |
| Serial Port / Header | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager 3.0 | ||
| SUM and SSM | ||
| Optional IPMI 1.5 / 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-218U-R1K02P | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 30.7" (780mm) | |
| Weight | Net Weight: 43 lbs (19.4 kg) | |
| Gross Weight: 69 lbs (31.2 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| System information (overheat/UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 9 PCI-E 3.0 x8 slots (include 4 PCI-E 3.0 x8 internal slots) | ||
| Drive Bays | ||
| Hot-swap | 24x 2.5" Hot-swap drive bays | |
| Default 10 SATA3 ports (2 SATA3 ports for SATA DOM or internal HDD) | ||
| Optional 24 SAS3 ports via AOC | ||
| Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC | ||
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. | |
| 5+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 8x 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x Fan Connectors | ||
| Support to monitor Supermicro AOC temperatures from IPMI or SD 5 | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Memory DIMM ECC error LEDs | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| SDDC Support | ||
| RoHS | ||
| 4x 8-pin GPU power connectors | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2048U-RTR4 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10QRH+ | 1 | Super X10QRH+ Motherboard | |
| Motherboard / Chassis | CSE-218UTS-R1K02P | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-2UR66-I4G | 1 | 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350 | |
| Air Shroud | MCP-310-21804-0B | 1 | Black Mylar air shroud for X10QRH+ in SC218U,HF,RoHS/REACH | |
| Backplane | BPN-SAS3-216A-N4 | 1 | 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-SAST-0701 | 2 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro | |
| Cable 2 | CBL-PWEX-0673 | 3 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x4 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-S2-88 | 2 | RSC-S2-88 | |
| Heatsink / Retention | SNK-P0047PS | 4 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2000w power supply kit | MCP-250-21802-0N | $ 62.50 | 0 | Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH | ||
| 2000w power supply kit | PWS-2K03P-1R | $ 480.00 | 0 | 1U 2000W Redundant Power Supply Platinum 73.5mm width | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location | |||
| Network Card(s) | AOC-S40G-i2Q | 0 | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGN-i1S | 0 | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | |||
| Storage Options | See Details | 0 | SAS3 and NVMe Options | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
