System Memory |
Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz |
Memory Type | 128GB Unbufferred Non |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
Memory Voltage | 1.2V |
On-Board Devices |
Chipset | Intel® Z490 |
Network Controllers | Single LAN with Aquantia® AQC107 10G Ethernet Controller |
| Single LAN with Intel® single Ethernet PHY i219V |
SATA | Intel® Z490 Express controller for 4 SATA 3 (6 Gbps) ports; RAID 0,1,5,10 |
Audio | ALC 1220 HD Audio |
Input / Output |
SATA | 4 SATA3 (6Gbps) port(s) |
LAN | 1 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 10GBase-T ports |
Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s) |
TPM | 1 TPM Header |
USB | 1 USB 3.2 Gen2x2 port(s) (1 rear type C) |
| 4 USB 2.0 port(s) (4 via header) |
| 4 USB 3.2 Gen1 port(s) (2 via header; 2 type A) |
| 4 USB 3.2 Gen2 port(s) (1 rear type C; 1 via header; 2 rear type A) |
Serial Port | 1 COM Port(s) (1 header) |
System BIOS |
BIOS Type | 256MB SPI Flash with AMI BIOS |
BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| BIOS rescue hot keys |
| Riser card auto-detection support |
Management |
Software | SuperDoctor® 5, Watchdog |
System Management Software | SuperDoctor 5 |
Power Configurations | ACPI Power Management |
PC Health Monitoring |
Voltage | VBAT, System temperature, PCH temperature, Memory temperature, Memory, CPU temperature, CPU, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH, 5 (4-pin) |
Temperature | CPU thermal trip support |
Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking |
FAN | 5 fans with tachometer status monitoring |
| Fan speed control |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
Product SKUs |

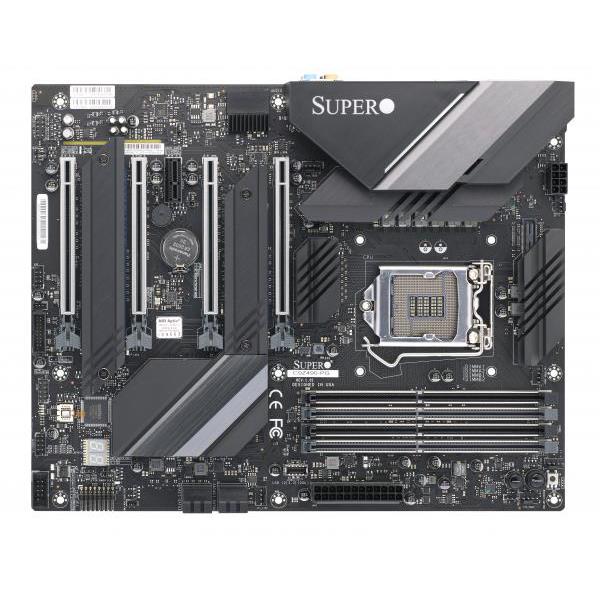

Product SKUs | MBD-C9Z490-PG |
Physical Stats |
Form Factor | ATX |
Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
Processor |
CPU | 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor |
| Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 140W TDP |
Expansion Slots |
PCIe | 1 PCIe 3.0 x1 |
| 4 PCIe 3.0 x16 slots (16/NA/16/NA or 8/8/8/8), |
M.2 | M.2 Interface: 22 PCIe 3.0 x4PCIe 3.0 x4, RAID 0 & 1 |
| Form Factor: 2260/2280/221102260/2280/22110 |
| Key: M-KeyM-Key |
Operating Environment |
Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
