| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 256GB ECC RDIMM, DDR4-2666MHz; Up to 256GB ECC/non-ECC , DDR4-2666MHz |
| Memory Type | 2666/2400 MT/s ECC/non-ECC DDR4 RDIMM |
| DIMM Sizes | RDIMM: 8GB, 16GB, 32GB, 64GB |
| UDIMM: 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Graphics | 1 Aspeed AST2600 BMC port(s) |
| Network Controllers | Dual LAN with 25G SFP28 LAN via SoC |
| Dual LAN with 1GbE with Intel® I210 |
| SATA | SoC controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| 8 SATA ports via SlimSAS (or 2 PCIE3.0 x4 for NVMe) |
| IPMI | ASPEED AST2600 BMC |
| Input / Output |
| SATA | 2 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 2 SFP28 25 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA D-Sub Connector port(s) |
| DOM | 1 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header & Chip both |
| USB | 2 USB 3 port(s) (2 rear type A) |
| 4 USB 2 port(s) (4 via header) |
| Serial Port | 1 COM Port(s) (1 header) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) |
| UEFI 2.7 |
| ACPI 6.3 |
| PCI FW 3.0 |
| SMBIOS 3.3 |
| Management |
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, SSM, NMI, SUM, SPM |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery |
| PC Health Monitoring |
| Voltage | 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages |
| LED | UID/Remote UID |
| BMC/IPMI Heartbeat LED |
| Overheat/Fan Fail/PWR Fail LED |
| Power Indicator LED |
| LAN temperature |
| Temperature | CPU thermal trip support |
| peripheral temperature |
| System temperature |
| Memory temperature |
| NVMe temperature |
| Platform Environment Control Interface (PECI)/TSI |
| FAN | 6 fans with tachometer status monitoring |
| Fan speed control |
| PWM fan speed control |
| System level control |
| 6x 4-pin fan headers (up to 6 fans) |
| Overheat LED indication |
| Other Features | UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| Product SKUs |

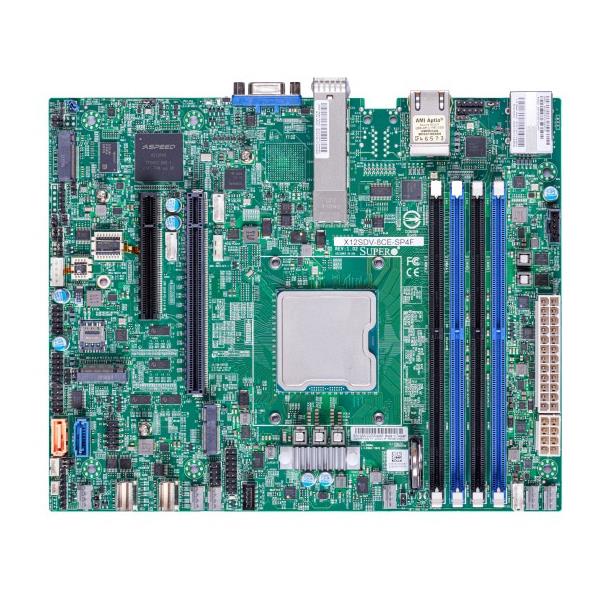

| Product SKUs | MBD-X12SDV-8CE-SP4F |
| Physical Stats |
| Form Factor | FlexATX |
| Dimension | 9" x 7.25" (22.86cm x 18.42cm) |
| Processor |
| CPU | Intel® Xeon® Processor D-1732TE |
| Single Socket FCBGA-2227 supported, CPU TDP supports Up to 52W TDP |
| Core | Up to 8 cores / 15MB Cache |
| Expansion Slots |
| PCIe | 2 PCIe 3.0 x4 (or 4x SATA), via SlimSAS, |
| 1 PCIe 4.0 x16 slots or 1 PCIe 4.0 x8 (N/A or 8/8) |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 USB3.0/SATA3.0/PCIe 3.0 x2; 1 PCIe 3.0 x1 |
| Form Factor: 2280, 2280/3042/3052, 2230 |
| Key: M-Key, B-Key, E-Key |
| Operating Environment |
| Operating Temperature Range | -40°C - 60°C (-40°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
