End-to-End Data Protection
Hardware Encryption AES 256 bit
Temperature Monitoring and Logging
Enhanced Power Loss Data Protection

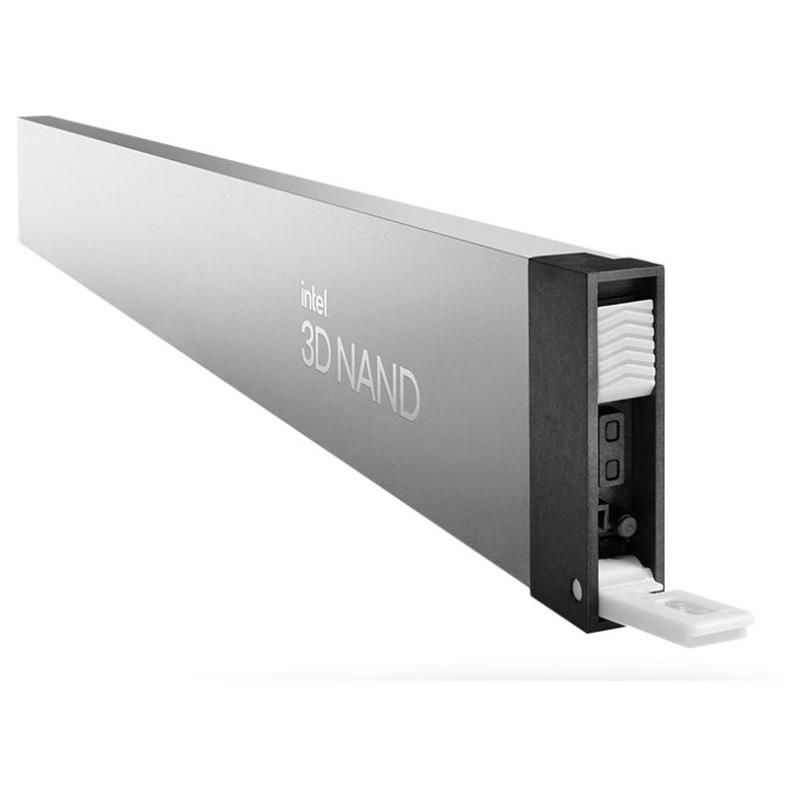

Hard Drive 15.36TB SSD NVMe PCIe 4.0 x4 NVMe (1.3c) E1.L 9.5mm Optimized For Enterprise and Cloud Workloads 3D Quad-Level Cell (QLC) 0.5DWPD Intel D5-P5316 Series - OEM
Combining the industry’s first 144-layer QLC NAND and PCIe 4.0, the read-optimized Intel SSD D5-P5316 enables significant TCO savings while accelerating warm storage.
As data volume increases, storage becomes a growing challenge in terms of cost-effectiveness, physical footprint, and performance. Built with Intel’s most advanced Quad-Level Cell NAND, the Intel SSD D5-P5316 addresses those challenges by delivering industry-leading SSD storage density with the high bandwidth performance of a PCIe 4.0 interface.
The Intel SSD D5-P5316 includes up to 15.36TB of capacity, and as an E1.L, provides up to 1 petabyte of storage in just 1U of rack space. The result is massive storage consolidation for lower TCO.
| Main Specifications | ||
| Device Type | Solid state drive - internal | |
| Capacity | 15.36 TB | |
| Form Factor | E1.L 9.5mm | |
| Interface | PCI Express 4.0 x4 (NVMe) | |
| NAND Flash Memory Type | 3D quad-level cell (QLC) | |
| Product Collection | Intel SSD D5 P5316 Series | |
| Performance | ||
| Internal Data Rate | 7000 MBps (read) / 3200 MBps (write) | |
| 4KB Random Read | 800000 IOPS | |
| Reliability | ||
| Endurance (max PB random write) | 10.78PBW(64K Random), 51.85PBW(64K Sequential) | |
| Power | ||
| Power Consumption | Power - Active 25W, Power - Idle 5W | |
| Environmental | ||
| Operating Environment | Operating Temperature (Minimum): 0 °C | |
| Shock (Operating and Non-Operating) 1000G (0.5ms) | ||
| Vibration - Operating 2.17 GRMS | ||
| Vibration - Non-Operating 3.13 GRMS | ||
| Operating Temperature Range: 0°C to 70°C | ||
| Operating Temperature (Maximum): 70 °C | ||
| Miscellaneous | ||
| MTBF | 2 million hours | |
| Use Conditions | Server/Enterprise | |
| Warranty: | 5 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Intel |
| Type of Support: | FULL |
| Phone No.: | 916-377-7000 |
| URL: | Click here for Manufacturer Website |
