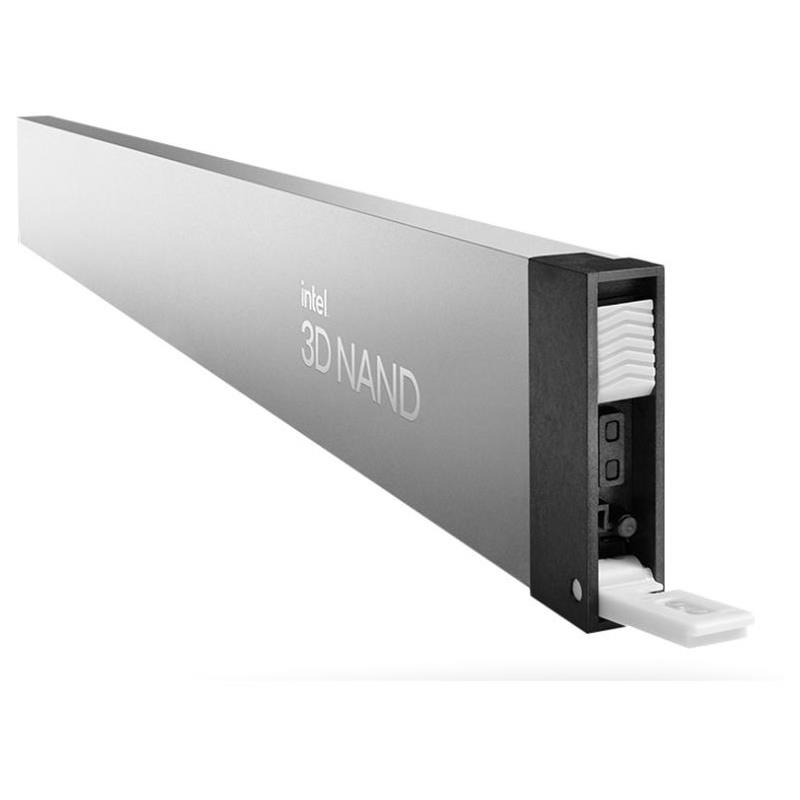

Intel SSDPFWNV307TZ 30.72TB NVMe Solid-State Drive PCIe 4.0 x4 E1.L 9.5mm Quad-Level Cell 0.5DWPD AES-256 Hardware Encryption - D5-P5316 Series

End-to-End Data Protection
Hardware Encryption AES 256 bit
Temperature Monitoring and Logging
Enhanced Power Loss Data Protection

The NVMe Solid-State Drive Features 30.72TB PCIe 4.0 x4 NVMe (1.3c) E1.L 9.5mm Optimized For Enterprise and Cloud Workloads 3D Quad-Level Cell (QLC) 0.5DWPD Intel D5-P5316 Series - OEM

Combining the industry’s first 144-layer QLC NAND and PCIe 4.0, the read-optimized Intel SSD D5-P5316 enables significant TCO savings while accelerating warm storage.

As data volume increases, storage becomes a growing challenge in terms of cost-effectiveness, physical footprint, and performance. Built with Intel’s most advanced Quad-Level Cell NAND, the Intel SSD D5-P5316 addresses those challenges by delivering industry-leading SSD storage density with the high bandwidth performance of a PCIe 4.0 interface.

The Intel SSD D5-P5316 includes up to 30.72TB of capacity, and as an E1.L, provides up to 1 petabyte of storage in just 1U of rack space. The result is massive storage consolidation for lower TCO.

Extra Specifications for Intel SSDPFWNV307TZ 30.72TB NVMe Solid-State Drive PCIe 4.0 x4 E1.L 9.5mm Quad-Level Cell 0.5DWPD AES-256 Hardware Encryption - D5-P5316 Series

Main Specifications
Device Type	Solid state drive - internal
Capacity	30.72 TB
Form Factor	E1.L 9.5mm
Interface	PCI Express 4.0 x4 (NVMe)
NAND Flash Memory Type	3D quad-level cell (QLC)
Product Collection	Intel SSD D5 P5316 Series
Performance
Internal Data Rate	7000 MBps (read) / 3600 MBps (write)
4KB Random Read	800000 IOPS
Reliability
Endurance (max PB random write)	10.78PBW(64K Random), 51.85PBW(64K Sequential)
Power
Power Consumption	Power - Active 25W, Power - Idle 5W
Environmental
Operating Environment	Operating Temperature (Minimum): 0 °C
	Shock (Operating and Non-Operating) 1000G (0.5ms)
	Vibration - Operating 2.17 GRMS
	Vibration - Non-Operating 3.13 GRMS
	Operating Temperature Range: 0°C to 70°C
	Operating Temperature (Maximum): 70 °C
Miscellaneous
MTBF	2 million hours
Use Conditions	Server/Enterprise

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
