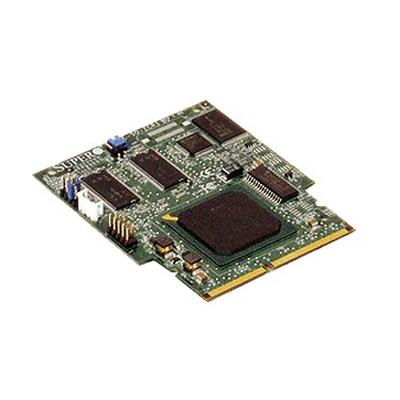

Supermicro AOC-SOZCR1 SAS/SATA/SCSI RAID Controller Slim-size Card 64-bit / 100MHz PCI-X
64 MB onboard ECC DDR MEmory
Intel 400 MHz Verde I/O Processor
Supports SAS, SATA, and SCSI modes
All-in-One Zero-Channel RAID Card (SAS Only)
All-in-One Zero-Channel RAID Card, RAID 0,1,5,10 and JBOD 50 (SAS Only), 64-bit / 100MHz PCI-X, Slim-size Card, Onboard : 64 MB ECC DDR Memory - RoHS Compliant (AOC-SOZCR1)
Supermicro Socket DIMM All-in-One Zero-Channel RAID Card (AOC-SOZCR1).
The AOC-SOZCR1 is a highly efficient, highly compatible, and easy-to-use SAS/SATA/SCSI RAID Controller that allows the user to configure RAID 0, RAID 1, RAID 5, RAID 10, and JBOD by using Marvell's 88SX6041/-6081 (Hercules II), Adaptec's AIC-7901/-7902 Ultra 320 SCSI Controller or Adaptec's AIC-9410 SAS Controller on the motherboard. With the built-in Intel's Verde 400 MHz I/O Processor and 64 MB ECC DDR memory, the AOC-SOZCR1 supports PCIX speeds up to 100MHz and provides the user with a high-speed, space-saving, scalable and intelligent hardware RAID solution.
Advantages
Supports SAS, SATA, and SCSI modes (interchangeable via jumper settings)
Utilizes the motherboard's existing SAS / SATA / SCSI I/O host controllers.
Eliminates the need for a SAS / SATA / SCSI I/O chip on the motherboard. Saves on the cost of a regular RAID card.
Offers high-speed throughput, scalability, and space-saving/cost-effective hardware RAID solution.
Extra Specifications for Supermicro AOC-SOZCR1 SAS/SATA/SCSI RAID Controller Slim-size Card 64-bit / 100MHz PCI-X
| Main Specifications | ||
| Device Type | Add-On-Card | |
| Interface (Bus) Type | 64-bit / 100MHz PCI-X | |
| Dimensions (WxDxH) | Slim Design: 3.2" H x 3.8" W | |
| Processor Number | Intel Verde I/O Processor @ 400MHz built-in | |
| Storage Controller | ||
| Onboard Memory/Cache | 64 MB onboard ECC DDR memory | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 and JBOD 50 (SAS Only) | |
| Software / System Requirements | ||
| OS Supports | Microsoft Windows XP / 2000 / 2003 | |
| Linux SuSE 9.0 / 9.1 / 9.2, RedHat 3.0 / 4.0 | ||
| Management Software | Storage Management (ASM), Flash Utility (AFU), Configuration Utility (ACU) | |
| Miscellaneous | ||
| Compatible With | Adaptec SAS Host Controller (AIC-9410) | |
| Marvell Hercules-2 SATA Host Controller (AIC-8130 or AIC-8140) | ||
| Adaptec Ultra320 SCSI Host Controller (AIC-7901 or AIC-7902) | ||
| Compatible Motherboards | X6DHR-3G2 (SAS), X6DHR-TG (SATA), H8DAR-8 (SCSI), P4DPR-8G2+ (SCSI), X5DPR-8G2+ (SCSI), X5DLR-8G2 (SCSI), X5DLR-8G2+ (SCSI), X6DAR-8G (SCSI), X6DHR-8G (SCSI), X6DHR-8G2 (SCSI), X6DHR-8GS (SCSI), X6DHR-X8G (SCSI), X7DBR-8+ (SCSI) | |
| Compatible Servers | SS6014H-32 (SAS), SS6014H-T (SATA), SS6012P-8 (SCSI), SS6013L-8 (SCSI), SS6013P-8 (SCSI), SS6013P-8+ (SCSI), SS6014A-8 (SCSI), SS6014H-8 (SCSI), SS6014H-82 (SCSI), SS6014H-X8 (SCSI), SS6014L-M4 (SCSI), SS6015B-8+V (SCSI), SS6023L-8R (SCSI), AS1020A-8 (SCSI) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
