- Supermicro AOC-SAT2-MV8 SATA Controller Low-Profile 8 Internal Serial ATA Connectors
Supermicro AOC-SAT2-MV8 SATA Controller Low-Profile 8 Internal Serial ATA Connectors
Software RAID suported
Easy-install, 8 port SATA card
Up to 3.0 Gigabits/sec per port
SATA Controller Based on the Marvell Hercules-2 Rev. C0 SATA Host Controller, 8-channel Serial-ATA Adapter with 300MB/s per channel, Low-Profile, 64-bit PCI-X Interface - RoHS Compliant

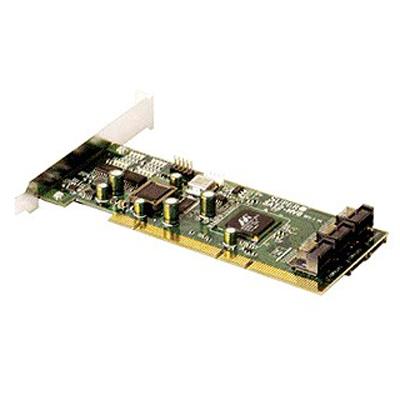

Supermicro's SAT2-MV8 SATA controller (based on the Marvell Hercules-2 Rev. C0 SATA host controller) provides 8-port SATA HDD support via 64-bit PCI-X bus interface with high-performance features. Serving as a 2nd generation SATA storage card, the AOC-SAT2-MV8 offers double the data transfer rate of its 1st generation counterpart and offers functionalities for server, workstation and network storage environments in a low-profile PCI platform.
The SAT2-MV8 is ideal for storage arrays for Network Attached Storage (NAS) and Nearline Backup. Built with superior quality and features, the SATA-MV2 will become an integral part of today's data storage solutions.The SAT2-MV8 Installation CD contains drivers for 32-bit and 64-bit Microsoft Windows and RedHat/SuSE/Fedora Linux operating systems.
Key Features
8-channel Serial-ATA adapter with 300MB/s per channel
64-bit PCI-X interface
Software RAID supported
Up to 8 Serial-ATA disk drives, activity LED indicated for each drive (LED cables not included)
Extra Specifications for Supermicro AOC-SAT2-MV8 SATA Controller Low-Profile 8 Internal Serial ATA Connectors
| Main Specifications | ||
| Device Type | Add-On-Card | |
| Form Factor | Low Profile | |
| Interface (Bus) Type | 64-bit PCI-X133MHz | |
| Supports | Up to 8 Serial-ATA disk drives, activity LED indicated for each drive (LED cables not included) | |
| Connectivity | ||
| Connectors | 8 Serial ATA connectors | |
| Storage Controller | ||
| Data Transfer Rate | Up to 3.0 Gigabits/sec per port | |
| RAID Level | Software RAID suported | |
| Environmental Parameters | ||
| Operating Temperature | 0 to 55° Celsius | |
| Software / System Requirements | ||
| OS Supported | Windows 2000, XP, 2003, Windows XP EM64T, 2003 EM64T, RedHat 9.0, RHEL 3 (Updates 2, 3, and 4), RHEL 3 EM64T/X86_64 (Updates 3, 4), RHEL 4, RHEL 4 EM64T/X86_64, SuSE 9.1, 9.2, SuSE Enterprise 9, Fedora Core 3 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
