| Motherboard |
| Motherboard | Super X10SRA |
| Processor |
| CPU | Single Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3, E5-1600 v4 † / v3 family or Intel® Core™ i7 series (up to 160W TDP **) |
| Core / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| Note | † BIOS version 2.0 or above is required |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 1TB ECC 3DS LRDIMM |
| Up to 512GB ECC LRDIMM |
| Up to 256GB ECC RDIMM |
| Up to 128GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only) |
| Memory Type | 2400 † / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SATA | RAID 0, 1, 5, 10 support |
| SATA3 (6Gbps) via C612 controller |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i210-AT Dual Port Gigabit Ethernet |
| Audio | RealTek ALC1150 High Definition Audio |
| Input / Output |
| SATA | 10x SATA3 (6Gbps) ports via PCH |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 8x USB 3.0 ports (2 front + 6 rear) |
| Audio | 7.1 HD Jacks |
| Keyboard/Mouse | 1x PS/2 Keyboard/Mouse port |
| Serial Port / Header | 1x header |
| TPM | 1x TPM 1.2 20-pin Header |
| Expansion Slots |
| PCI-Express | 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8) |
| 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| Hardware BIOS Virus protection |
| UEFI 2.3.1 |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| SuperDoctor® III |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Keyboard Wakeup from Soft-Off |
| CPU Fan auto-off in sleep mode |
| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-732D3-903B |
| Dimensions and Weight |
| Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Weight | Gross Weight: 35.5 lbs (16.1kg) |
| Net Weight: 29.5 lbs (13.4 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED |
| System Information LED |
| Hard drive activity LED |
| Network activity LED |
| Ports | 2x front USB 3.0 Ports |
| 2x front HD/AC97 Audio Ports |
| Drive Bays |
| Internal | Enterprise SATA HDD only recommended |
| 4x 3.5" fixed drive bays |
| Peripheral | 2x 5.25" peripheral drive bays |
| 1x card reader module |
| System Cooling |
| Fans | 1x 12cm front cooling fan |
| Power Supply |
| Power Supply | 900W AC multi output power supply |
| AC Voltage | 100-240 V, 50-60 Hz, 10-6 Amp |
| +5V Standby | 3 Amp |
| +12V1 | 25 Amp |
| +12V2 | 25 Amp |
| +12V3 | 25 Amp |
| +12V4 | 25 Amp |
| +5V | 25 Amp |
| +3.3V | 25 Amp |
| -12V | 0.5 Amp |
| Certification | Gold Level |
| Note: | • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W. |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Total of 5 fan headers supporting up to 5 fans |
| 5 fan headers with tachometer status monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| I 2 C temperature sensing logic |
| Thermal Monitor 2 (TM2) support |
| PECI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

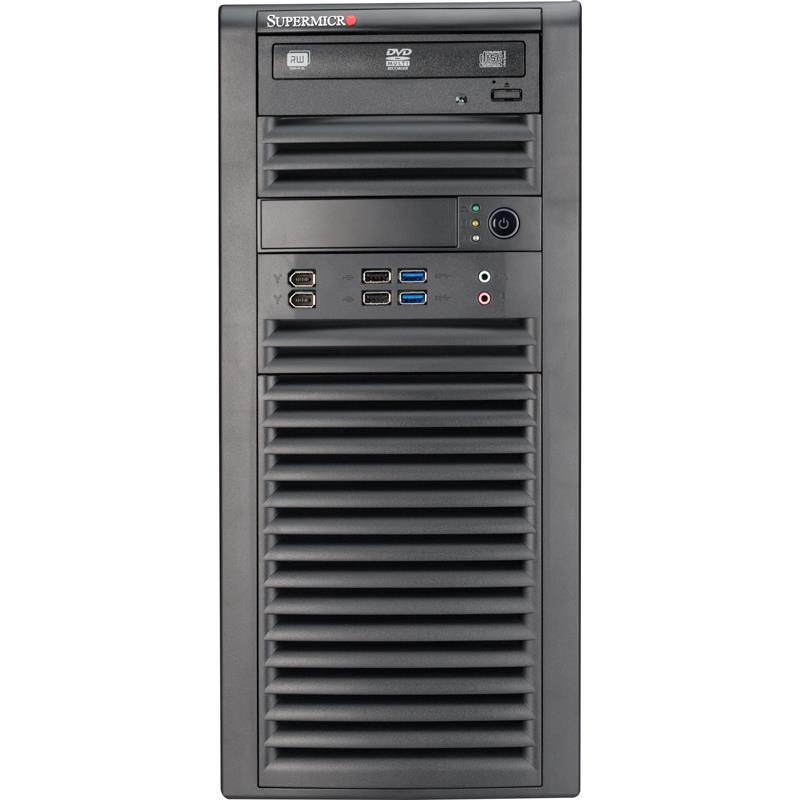

| Product SKUs | SYS-5038A-I (Black) |
