| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Supported Platforms |
| Motherboards | Supermicro® motherboards with Super I/O Module slot |
| Servers | Supermicro® server systems with Super I/O Module slot (See SIOM Compatibility Matrix online ):https://www.supermicro.com/en/support/resources/aoc/siom |
| Specifications |
| Networking Features | IEEE 802.3ad, 802.1AX Link Aggregation |
| IEEE 1588 Time Stamping |
| IEEE 802.1Q VLAN |
| MSI and MSI-X support |
| Intel® Flow Director |
| Jumbo Frames (up to 9.5KB) |
| IEEE 802.3x Flow Control |
| Teaming support |
| Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx) |
| Virtualization Features | Virtual Machine Devices queues (VMDq) |
| Single-Root I/O Virtualization (SR-IOV) |
| VLAN |
| VXLAN and NVGRE |
| GENEVE |
| Management Features | Asset Management support with thermal sensor |
| NC-SI for remote management |
| PXE remote boot |
| iSCSI remote boot |
| Power Savings | ACPI compliant power management |
| PCI Express Active State Power Management (ASPM) |
| Energy Efficient Ethernet (IEEE 802.3az) |
| OS Support | Windows® Server |
| Linux RHEL |
| Linux SLES |
| Linux Ubuntu |
| Linux CentOS |
| FreeBSD |
| VMware |
| Cable Support | SFP+ direct attach twin-axial copper cables up to 7m |
| Fiber-optic cables (with required optional SFP+ transceivers) |
| RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Power Consumption | Maximum: 10W |
| Operating Conditions | Storage humidity: 90% non-condensing relative humidity at 35°C |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Physical Dimensions | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) |
| Super I/O Module (SIOM) Form Factor |
| Add-on Card |

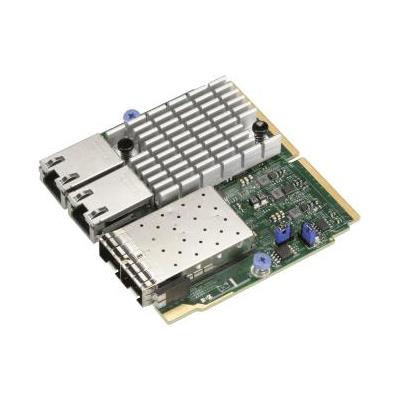

| Add-on Card | The Supermicro® AOC-MTG-i2T2S(M) is one of the most flexible and scalable 4-port 10Gb network solutions in the market. Based on the Intel® X710-TM4 controller, it is designed to support a mixed network interface 2x RJ45 and 2x SFP+ connectors, with performance-enhancing features and power management technologies. With its SIOM form factor, this controller fulfills the needs of flexible networking options in a small footprint and allows the capability to monitor the system remotely through its built-in NC-SI feature. To order, contact your distributor. This product is only available through Supermicro. |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-MTG-i2T2S_i2T2SM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-MTG-i2T2S_i2T2SM.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
