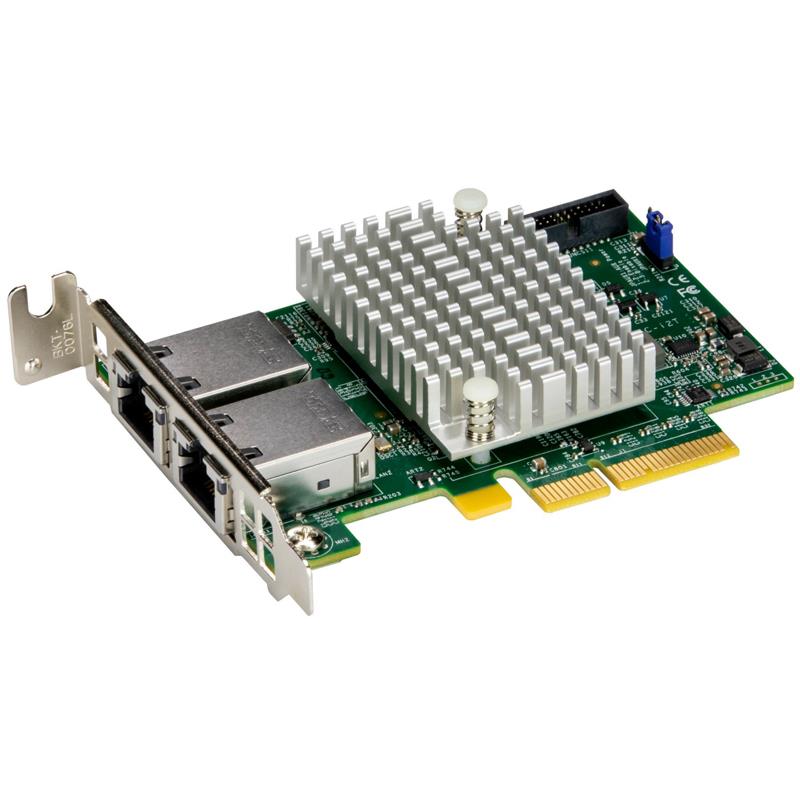

- Supermicro AOC-STGC-I2T Dual-port Adapter Card - PCIe 3.0 x8
Supermicro AOC-STGC-I2T Dual-port Adapter Card - PCIe 3.0 x8
Intel X710-AT2 Ethernet Controller
Compact size low-profile standard form factor
Dual RJ45 connectors, Message Signal Interrupt
Adapter Card, Standard Low Profile, PCIe 3.0 x8 Dual-port 10GBase-T
The Supermicro AOC-STGC-i2T features Intel’s state-of-the-art Intel X710-AT2 Ethernet solution that delivers a 10Gb per second transfer rate in PCIe Gen 3 architecture. Intel X710-AT2 has performance-enhancing and power management technologies that reduce CPU utilization. AOC-STGC-i2T also comes with NC-SI features that enable remote server management at ease.
Key Features
Dual Port RJ45 connector
Low-profile, short length standard form factor
Intel X710-AT2 Ethernet controller
Asset Management Feature with thermal sensor
Data Plan Development Kit (DPDK)
VxLAN, NVGRE, and Geneve
Jumbo Packet (9K Max)
NC-SI for IPMI support
RoHS compliant 6/6
Extra Specifications for Supermicro AOC-STGC-I2T Dual-port Adapter Card - PCIe 3.0 x8
| Main Specifications | ||
| Device Type | Ethernet Controller | |
| Interface | PCI Express 3.0 x8 | |
| Form Factor | Low-Profile, Short Length Standard Form Factor | |
| Dimensions | PCB dimensions: 9.652 cm x 6.891 cm (3.8 in X2.713 in) (LxW) | |
| Connectivity | ||
| Connectors | Dual RJ45 Connectors | |
| Networking | ||
| Virtualization Features | VXLAN, NVGRE, Geneve, SR-IOV, DPDK Support | |
| Manageability | Network Controller Sideband Interface, Asset Management with Thermal Sensors | |
| Remote Boot | iSCSI Boot, Legacy PXE Boot, UEFI PXE Boot | |
| Data Center Bridging | Enhanced transmission – IEEE 802.1Qaz, Edge Virtual Bridging – IEEE 802.Qbg | |
| Power | ||
| Power Savings | ACPI Compliant power management, Pass through Energy Efficient Ethernet (IEEE802.3az-2010) | |
| Environmental Parameters | ||
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Storage Humidity | 90% non-condensing relative humidity at 35°C | |
| Miscellaneous | ||
| Environmental Compliance | RoHS Compliant 6/6 | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
