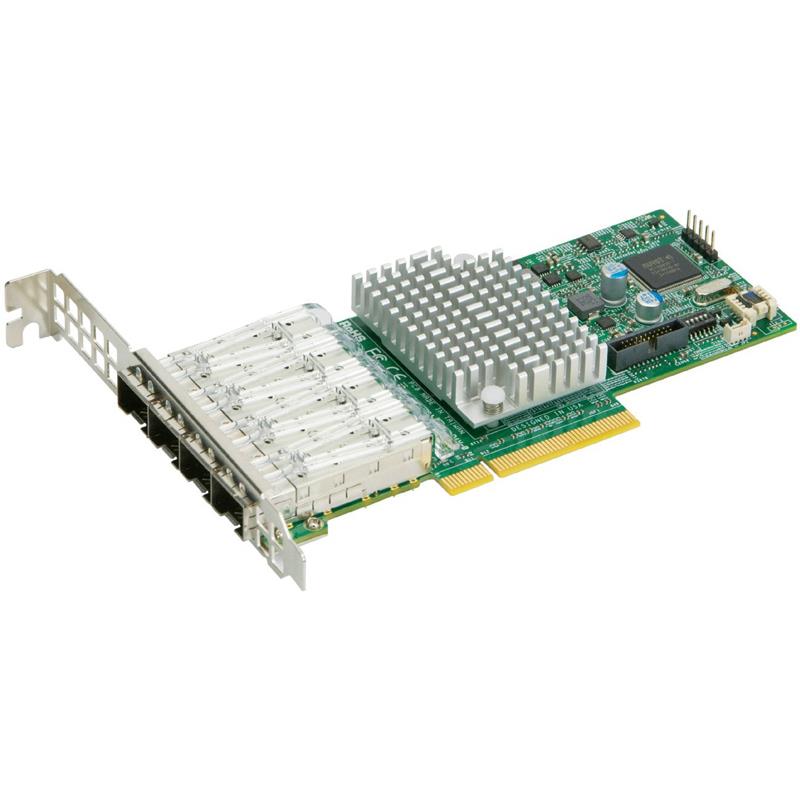

Supermicro AOC-STG-I4S 10GbE Controller Card PCI Express 3.0 (8 GT/s) Low-profile With Quad SFP+ Ports (10Gbps per port)

• Load balancing on multiple CPUs
• Controller speed up to 10Gbps per port
• Intel Flow Director and Intelligent Offloads
• Quad LAN with Intel X710 Family Controller

10GbE Controller Card, PCIe 3.0 x8 (8 GT/s) Interface. Standard Low-Profile Form Factor, Based On The Intel Controller XL710-BM1, Quad SFP+ Connectors With Speed Up To 10GbE Per Port, RoHS Compliant - (AOC-STG-I4S)

• Intel Flow Director
• Quad SFP+ Connectors
• PCI Express 3.0 (8GT/s)
• Low Power Consumption
• Small Packet Performance
• Standard Low Profile Form Factor
• Unified networking providing a single with support
• Supports Both Direct Attach Copper and Fiber Cables
• Data Plane Developer Kit for efficient packet processing
• Network Virtualization Offloads including VXLAN and NVGRE

Extra Specifications for Supermicro AOC-STG-I4S 10GbE Controller Card PCI Express 3.0 (8 GT/s) Low-profile With Quad SFP+ Ports (10Gbps per port)

Main Specifications
Device Type	Ethernet Controller
Dimensions (WxDxH)	Height of end brackets: standard 12cm (4.725in), low-profile 7.94cm (3.13in)
	Card PCB dimensions: 14.99cm (5.9in) x 6.90cm (2.73in) (L x H)
Form Factor	Low Profile Standard form factor
Interface (Bus) Type	PCI-E 3.0 x8 (8GT/s) interface
Storage Controller
Data Transfer Rate	10GbE
Miscellaneous
Features	Intel XL710-AM1 controller
Cables Required	Fiber-optic cables (with required optional SFP+ transceivers)
	SFP+ direct attach twinaxial copper cables up to 7m
RoHS	RoHS Compliant 6/6, Pb Free
Designed For	Supermicro motherboards with minimum one PCI-E x8 slot
	Supermicro server systems with minimum one low-profile or full-height PCI-E x8 expansion slot
Networking
Port Quantity	Quad SFP+ connectors with speed up to 10Gbps per port
Power
Comsumtion Operational	Typical power consumption: 4W
	Maximum power consumption: 8W
Environmental Parameters
Operating Temperature	Operating temperature: 0C to 55C (32F to 131F)
	Storage temperature: -40C to 70C (-40F to 158F)
	Storage humidity: 90% non-condensing relative humidity at 35C
Software / System Requirements
OS Supports	Windows Server 2012 R2, 2012, 2008 R2 X86-64
	Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
	Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
	FreeBSD 9 and 10 IA-32, X86-64, and IA-64
	UEFI 2.1 and 2.3 X86-64 and I-64
	VMware ESXi 5.1 and ESXi 5.5 X86-64

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
