| Motherboard (Four per System) |
| Motherboard (Four per System) | Super X10DRT-HIBF |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 1TB † ECC 3DS LRDIMM, 256GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices (per Node) |
| Chipset | Intel® C612 chipset |
| Infiniband | Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Intel® i350 Dual Port Gigabit Ethernet |
| Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Video | ASPEED AST2400 BMC |
| Input / Output (per Node) |
| Infiniband | 1x external QSFP Infiniband connector |
| Serial ATA | 8x SATA3 (6Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports (rear) |
| Video | 1x VGA port |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-217HQ-R1K68B |
| Dimensions and Weight |
| Width | 17.25" (438mm) |
| Height | 3.47" (88mm) |
| Depth | 28.5" (724mm) |
| Package | 26.4" (H) x 11.2" (W) x 39.8" (D) |
| Weight | Gross Weight: 85 lbs (38.6kg) |
| Net Weight: 54.5 lbs (24.7 kg) |
| Available Colors | Black |

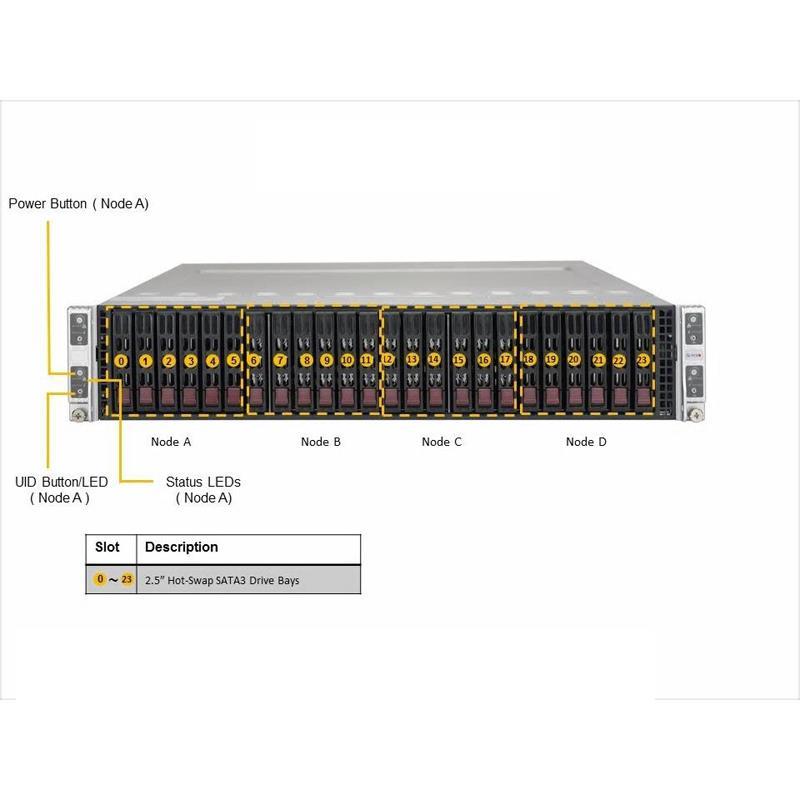

| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| UID button |
| LEDs | Power status LED |
| HDD activity LED |
| Universal Information (UID) LED |
| 2x Network activity LEDs |
| Expansion Slots (per Node) |
| PCI-Express | 1x PCI-E 3.0 (x16) Low-profile slot |
| Drive Bays (per Node) |
| Hot-swap | 6x 2.5" Hot-swap SATA3 drive bays Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. |
| System Cooling |
| Fans | 4x 8cm heavy duty fans with PWM fan speed control |
| Power Supply (76mm Width) |
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus |
| Total Output Power | 800W: 100 – 140Vac |
| 1600W: 180 – 240Vac |
| Dimension (W x H x L) | 76 x 40.4 x 336 mm |
| Input | 100-140Vac / 10-7A / 50-60Hz |
| 180-240Vac / 11-8A / 50-60Hz |
| +12V | Max: 67A / Min: 0A (100-140Vac) |
| Max: 133A / Min: 0A (180-240Vac) |
| +5Vsb | Max: 1A / Min: 0A |
| Output Type | 27 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| SMBIOS 2.3 |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |
| Product SKUs | SuperServer 2028TR-HTFR (Black) |
