| Motherboard |
| Motherboard | Super X10QBL |
| Processor/Cache |
| CPU | Quad Socket R1 (LGA 2011) |
| Intel® Xeon® processor E7-8800 v4/v3*, E7-4800 v4/v3* family (up to 24 Cores and 165W TDP) |
| Cache | Up to 60 MB |
| System Bus | QPI up to 9.6 GT/s |
| Note: | E7-48XX/88XX v4/v3 family or above requires Rev. 2.0x or above motherboard w/ Jordan Creek II |
| System Memory |
| Memory Capacity | 32x 240-pin DDR3 DIMM slots |
| Supports up to 2TB DDR3 ECC LRDIMM in 32 DIMM slots |
| Memory Type | 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C602J chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1 |
| SATA2 (3Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| 1x Realtek RTL8201F PHY (dedicated IPMI) |
| Intel® i350 Dual port GbE LAN |
| Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | ASPEED AST2400 BMC |
| Input / Output |
| SATA | 2x SATA3 (6Gbps) ports |
| 4x SATA2 (3Gbps) ports |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| 1x dedicated LAN port for IPMI |
| USB | 3x USB 2.0 rear ports |
| Video | 1x VGA Port |
| Serial Port / Header | 1 Fast UART 16550 serial port |
| System BIOS |
| BIOS Type | 16MB SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| ACPI up to 3.0 |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-828TQ-R1K43LPB |
| Dimensions |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 27.9" (709mm) |
| Weight | Net Weight: 40 lbs (18.1 kg) |
| Gross Weight: 66.5 lbs (30.2 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Hard drive activity LED |
| 2x Network activity LEDs |
| System Overheat LED |
| Expansion Slots |
| PCI-Express | 2x PCI-E 3.0 x16 Low-profile slot |
| 2x PCI-E 3.0 x8 Low-profile slot |
| Drive Bays |
| Hot-swap | 6x 3.5" Hot-swap Drive Bays |
| Backplane |
| Backplane | SAS/SATA HDD Backplane |
| Peripheral Drives |
| DVD-ROM | 1x Slim DVD-ROM (Optional) |
| System Cooling |
| Fans | 3x 8cm Hot-swap Cooling fans |
| Shroud | 1x Air Shroud |
| Power Supply |
| Power Supply | Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
| AC Voltage | 100-240 V, 50-60 Hz, 15 Amp max |
| +12V | 100 Amp/115 Vac |
| 117 Amp/230 Vac |
| With Power Distributor | +5V: 30 Amp |
| +3.3V: 25 Amp |
| -12V: 0.6 Amp |
| Certification | Platinum Certified |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. |
| 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V |
| FAN | 4-pin fan headers with tachometer status monitoring |
| Low noise fan speed control mode |
| Temperature | Monitoring for CPU and system environment |
| Thermal Control for 10x fan connectors |
| Other Features | Chassis intrusion detection |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

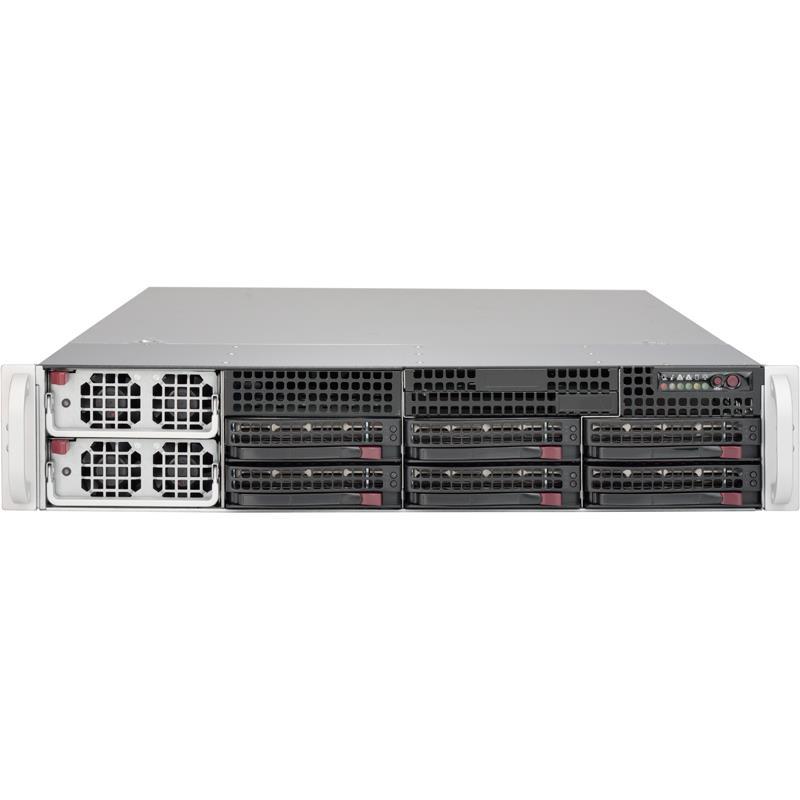

| Product SKUs | SuperServer 8028B-TR3F (Black) |
