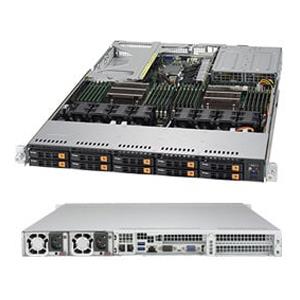

Supermicro SYS-1028U-TN10RT+ 1U Barebone Dual Intel Processor
Server Barebone 1U for Dual Intel Xeon processor E5-2600 v4/v3 families, Supports up to 3TB DDR4 ECC LRDIMM, up to 2400MHz (24x 288-pin sockets) - On-Board : SATA3 6Gbps (RAID), IPMI 2.0, 2x 10GBase-T LAN, VGA - Includes : 10x 2.5in Hot-swap drive bays, 6x NVMe ports (NVMe from CPU 1), 4x NVMe/SAS3 Hybrid ports (NVMe from CPU2), 2x Riser Cards, 2x Heatsinks, 1000W Redundant 80 Plus Titanium Power Supply,MBD-X10DRU-i+ Motherboard, SC119UAC2-R750 1U Chassis (Black)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 4 U.2 NVMe).
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24x DIMM slots
3. 3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
4. 2x 10GBase-T ports
5. 10 2.5" Hot-swap Drive Bays: 6 NVMe ports (NVMe from CPU 1); 4 NVMe/SAS3 hybrid ports for optional SAS3/SATA3** (NVMe from CPU 2)
6. 8 heavy duty fans w/ optimal fan speed control
7. 1000W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-1028U-TN10RT+ 1U Barebone Dual Intel Processor
| Product SKUs | ||
| Product SKUs | SuperServer 1028U-TN10RT+ (Black) | |
| Motherboard | ||
| Motherboard | Super X10DRU-i+ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 160W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 768GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| 2666/2400 ECC DDR4 NVDIMM | ||
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB | |
| NVDIMM: 16GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Connectivity | 2 10GBase-T ports via AOC-URN6-i2XT | |
| Intel® X540 10GBase-T | ||
| 1 Realtek RTL8211E PHY (dedicated IPMI) | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| NVMe/SAS | 6 NVMe ports (NVMe from CPU 1) | |
| 4 NVMe/SAS3** Hybrid ports (NVMe from CPU 2) | ||
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) | |
| Video | 1 VGA Connector | |
| Serial Port | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager 3.0 | ||
| SUM and SSM | ||
| Optional IPMI 1.5 / 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UAC2-R1K02 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.5" (724mm) | |
| Gross Weight | 48 lbs (21.8 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System UID button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| UID LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 3 PCI-E 3.0 x8 slots (2 Full-height 10.5" L; 1 Low-profile) | |
| Drive Bays | ||
| Hot-swap | 10x 2.5" Hot-swap drive bays | |
| 6 NVMe ports (NVMe from CPU 1) | ||
| 4 NVMe/SAS3 hybrid ports for optional SAS3/SATA3** (NVMe from CPU 2) ** Note: SAS3/SATA3 support requires additional parts in optional parts list | ||
| System Cooling | ||
| Fans | 8 heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. | |
| 5+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 8x 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x Fan Connectors | ||
| Support to monitor Supermicro AOC temperatures from IPMI or SD 5 | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Memory DIMM ECC error LEDs | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| SDDC Support | ||
| RoHS | ||
| 4x 8-pin GPU power connectors | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRU-i+ | 1 | Super X10DRU-i+ Motherboard | |
| Motherboard / Chassis | CSE-119UAC2-R750 | 1 | CSE-119UAC2-R750 Chassis | |
| Air Shroud | MCP-310-81903-0B | 1 | Mylar air shroud set for SC819U,119U (X10DRU+),HF | |
| Add-on Card / Module | AOC-URN6-I2XT-P | 1 | AOC-URN6-I2XT | |
| Backplane | BPN-SAS3-116A-N10 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible. | |
| Cable 1 | CBL-PWEX-0780 | 1 | PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),40/40CM,18AWG,RoHS | |
| Cable 2 | CBL-PWEX-0781 | 1 | PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS | |
| Cable 3 | CBL-SAST-0818 | 5 | OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG | |
| Cable 4 | CBL-SAST-0819 | 3 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
| Cable 5 | CBL-SAST-0820 | 2 | OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH | |
| Parts | MCP-130-81901-0N | 1 | Oculink cable connection plastic holder for AOC-URN6-i2XT | |
| Parts | MCP-150-00009-0B | 1 | Internal AOC rubber support for SC819U, 119U | |
| Manual | MNL-1812-QRG | 1 | QRG for SYS-1028U-TN10RT+ | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-UN4-88 | 1 | RSC-UN4-88 | |
| Heatsink / Retention | SNK-P0057PSU | 2 | 1U Passive CPU Heat Sink for X10 1U 24-DIMM Ultra and Super Blade Series Servers,RoHS/REACH | |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
