| Main Specifications |
| Dimensions (WxDxH) | H 1.2" (30.48mm) x W 4.94" (125.48mm) x D 23.2" (489.28mm) |
| Enclosure Color | Silver Grey |

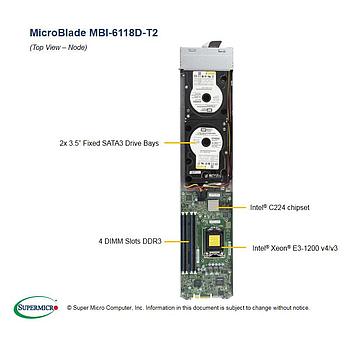

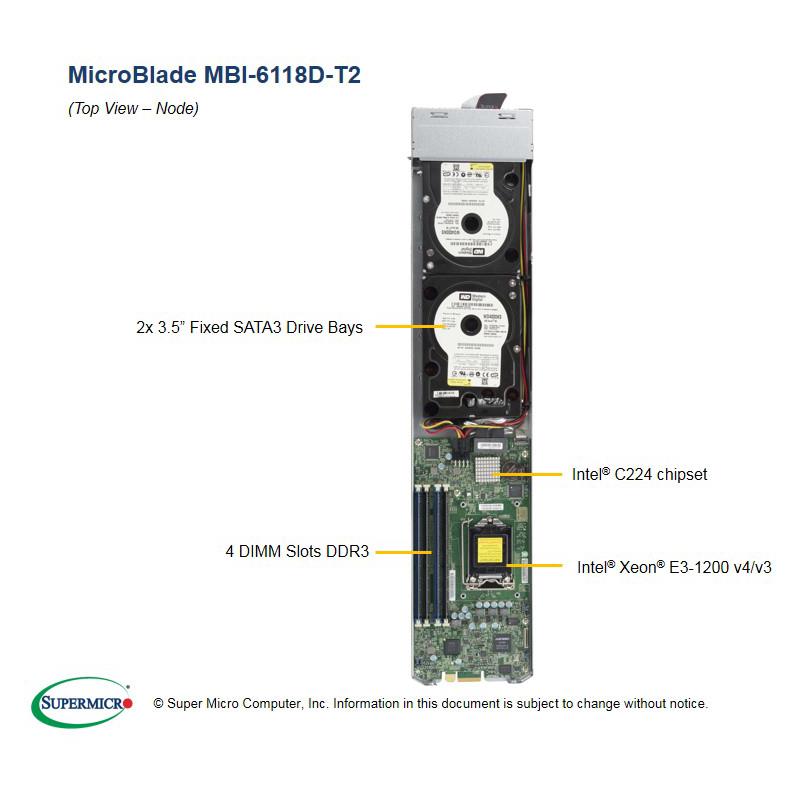

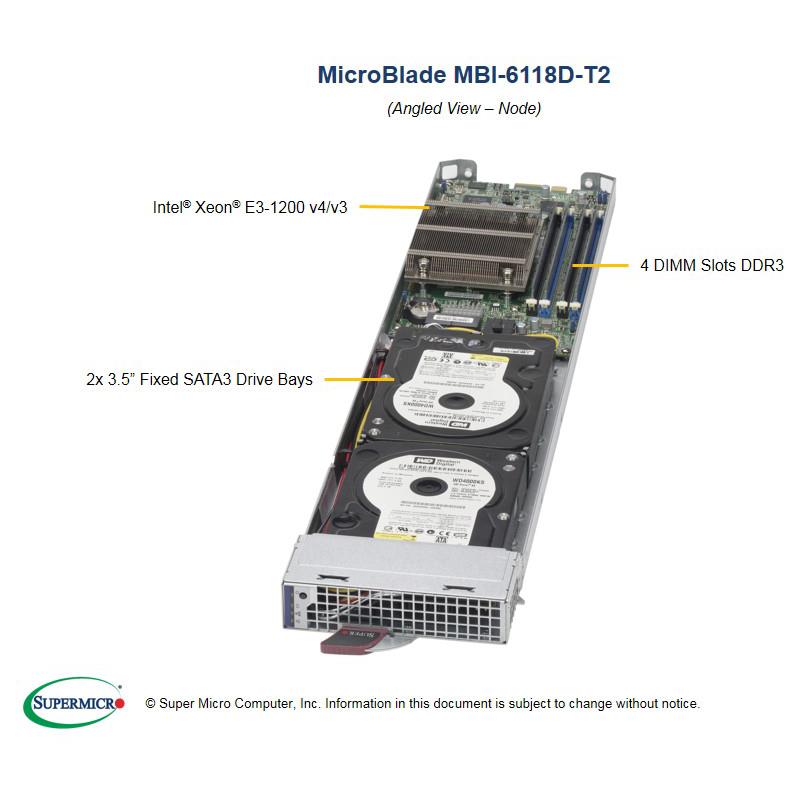

| Type | MicroBlade |
| Weight | Gross Weight: 5.67 lbs (2.57 kg) - Net Weight: 2.35 lbs (1.07 kg) |
| Parts List |
| Motherboard | Super B1SL1-F |
| Processor |
| Compatible processor | Intel Xeon processor E3-1200 v3 family, 4th Gen Core i3 processors, Up to 82W TDP |
| Compatible Socket | Socket H3 (LGA 1150) |
| System Memory |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4x 240-pin DDR3 DIMM sockets - Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Voltage | 1.5 V, 1.35V |
| Cache Memory |
| Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | Intel C224 chipset |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Network Controllers | Intel I350 Dual port Gigabit Ethernet |
| Intel I/OAT 3 support for fast, scaleable, and reliable networking |
| VMDq support for better performance of virtualization |
| Input / Output |
| SATA | SATA3 (6Gbps) via chipset |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, ACPI 1.0/2.0, SMBIOS 2.3, RTC (real time clock) wake up |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Drive Bays |
| Internal | 2x 3.5" 6Gb/s SATA3 HDD/SSD |
| Environmental Parameters |
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10to 35C (50to 95F) |
| Non-operating Temperature: -40to 70C (-40to 158F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| United States / Canada | FCC- Emissions (US) Verification |
| UL60950-1 - CSA/CUL 60950-1 |
| Safety Compliance |
| Germany | TUV |
| Parts List - (Items Included) |
| Cable | CBL-SAST-0639, CBL-SAST-0641 |
| MicroBlade Sled | MCP-680-31403-0N |
| Motherboard / Chassis | MBD-B1SL1-F |
