| Main Specifications |
| Dimensions (WxDxH) | H 1.2" (30.48mm) x W 4.94" (125.48mm) x D 23.2" (489.28mm) |
| Enclosure Color | Silver Grey |

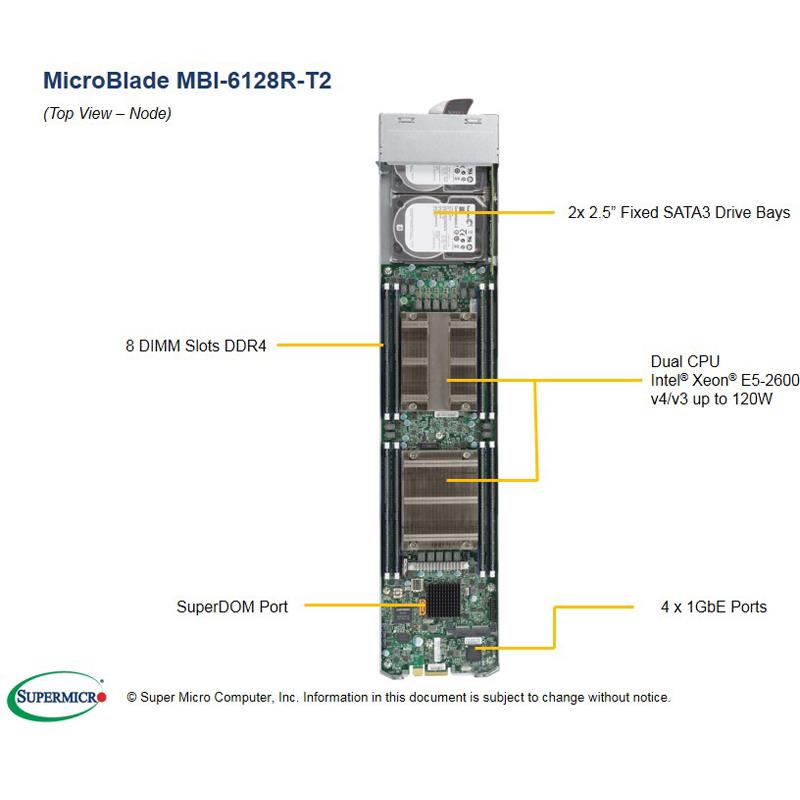

| Type | MicroBlade |
| Weight | Gross Weight: 5.7 lbs (2.59 kg) - Net Weight: 3.4 lbs (1.54 kg) |
| QPI | QPI up to 9.6 GT/s |
| Parts List |
| Motherboard | Super B1DRI |
| Processor |
| Cache | Up to 14 Cores / Up to 35MB Cache |
| Compatible processor | Intel Xeon processor E5-2600 v3 family (up to 120W TDP **) |
| Compatible Socket | Dual Socket R3 (LGA 2011) |
| Miscellaneous |
| Note | Please contact your Supermicro sales representative for additional details. |
| System Memory |
| DIMM Sizes | VLP RDIMM: 16GB, 8GB, 4GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 8x 288-pin DDR4 DIMM sockets - Up to 128GB VLP ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel C612 Express chipset |
| Input / Output |
| SATA | SATA3 (6Gbps), RAID 0, 1 |
| System BIOS |
| BIOS Features | Plug and Play (PnP), DMI 2.3, ACPI 5.0, USB Keyboard support, SMBIOS 2.7.1, UEFI |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Drive Bays |
| Internal | 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM per node |
| Environmental Parameters |
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10to 35C (50to 95F) |
| Non-operating Temperature: -40to 70C (-40to 158F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| United States / Canada | FCC- Emissions (US) Verification |
| UL60950-1 - CSA/CUL 60950-1 |
| Safety Compliance |
| Germany | TUV |
| Parts List - (Items Included) |
| Add-On Card | AOC-GEH-I4M-O-P |
| Add-on Module | AOM-BPN-MS28D-O-P |
| MicroBlade Sled | MCP-680-31402-0N |
| Motherboard / Chassis | MBD-B1DRI |
