| Main Specifications |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (489.28mm) |
| Enclosure Color | Silver Grey |

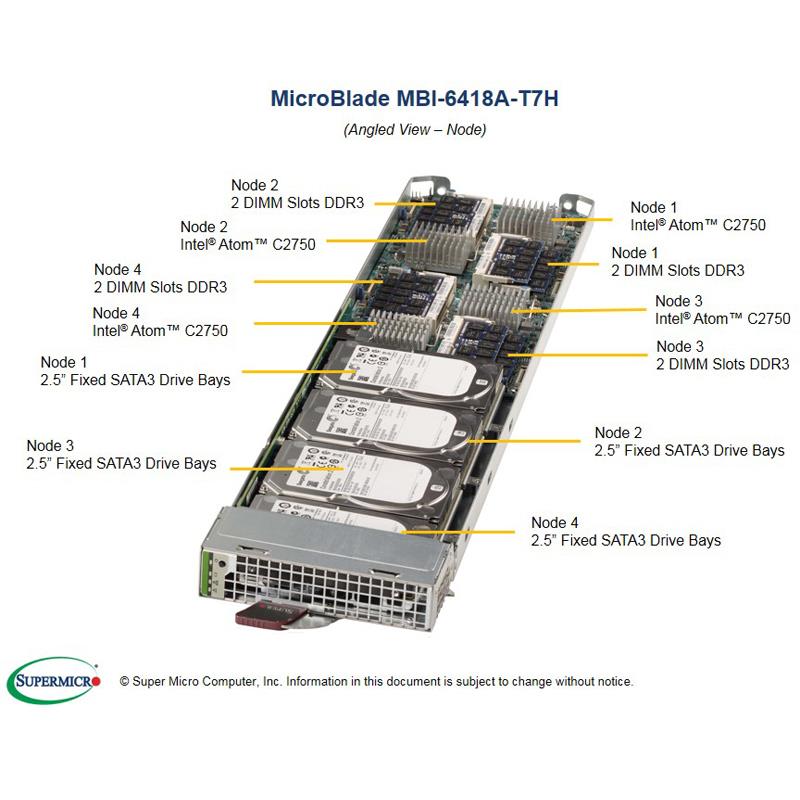

| Type | MicroBlade |
| Weight | Gross Weight: 4.76 lbs (2.15 kg) - Net Weight: 2.51 lbs (1.13 kg) |
| Parts List |
| Motherboard | Super B1SA4-2750F |
| Processor |
| Embedded Processor | Intel Atom Processor C2750 (8-Core, 2.4GHz) with 2x 2.5Gb/s network connectivity, FCBGA 1283 |
| System Memory |
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB, 1GB |
| Error Detection | Supports Intel x4 and x8 Single Device Data Correction (SDDC) |
| Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| Memory Capacity | Supports up to 32GB SO-DIMM ECC memory |
| 2x 204-pin DDR3 SO-DIMM sockets per Node |
| Memory Voltage | 1.5 V and 1.35 V |
| Cache Memory |
| Memory Type | 1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs |
| On-Board Devices |
| Chipset | System-On-Chip (SoC) |
| Input / Output |
| SATA | C2000 SoC SATA3 (6Gbps), no RAID |
| DOM | 1x SuperDOM (Disk on Module) port |
| System BIOS |
| BIOS Features | Plug and Play (PnP), DMI 2.3, ACPI 5.0, USB Keyboard support, SMBIOS 2.7.1, UEFI |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Drive Bays |
| Internal | 1x 2.5" 6Gb/s SATA3 HDD/SSD |
| 1x SATA3 DOM per node (Total of 4x 2.5" HDD/SSD in one MicroBlade Sled) |
| Environmental Parameters |
| Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10to 35C (50to 95F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Non-operating Temperature: -40to 70C (-40to 158F) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| CE - EMC Directive 89/336/EEC |
| EN55022 - Emissions |
| EN55024 - Immunity |
| EN61000-3-2 - Harmonics |
| EN61000-3-3 - Voltage Flicker |
| United States / Canada | FCC- Emissions (US) Verification |
| UL60950-1 - CSA/CUL 60950-1 |
| Safety Compliance |
| Germany | TUV |
| Miscellaneous |
| Note | SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30C ambient temperature. |
| Parts List - (Items Included) |
| Add-On Card | AOM-BPN-MS28 |
| Motherboard / Chassis | 1x MBD-B1SA4-2750F / 1x MCP-680-31401-0N |
