Main Specifications |
Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (489.28mm) |
Enclosure Color | Silver Grey |
Type | MicroBlade |
Weight | Gross Weight: 5.67 lbs (2.57 kg)- Net Weight: 2.35 lbs (1.07 kg) |
Parts List |

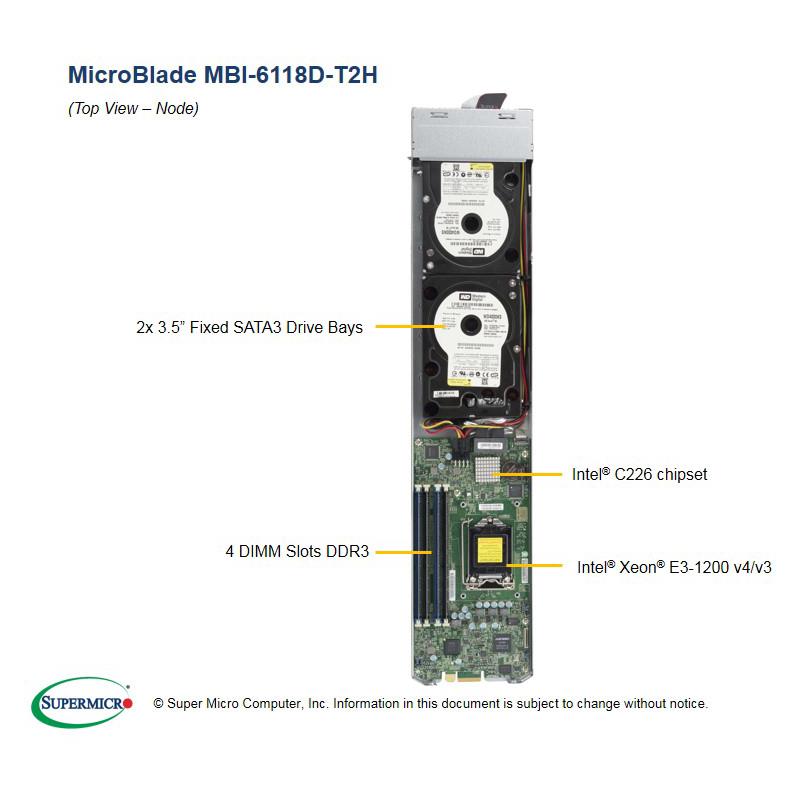

Motherboard | Super B1SL1-HF |
Processor |
Compatible processor | Intel Xeon processor E3-1200 v3/v4 family, 4th Gen Core i3 processors - Up to 84W TDP |
Compatible Socket | Socket H3 (LGA 1150) |
System Memory |
DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
Memory Capacity | 4x 240-pin DDR3 DIMM sockets, Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
Memory Voltage | 1.5 V, 1.35V |
Cache Memory |
Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
On-Board Devices |
Chipset | Intel C226 chipset |
IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
Network Controllers | VMDq support for better performance of virtualization |
| Intel I350 Dual port Gigabit Ethernet |
| Intel I/OAT 3 support for fast, scaleable, and reliable networking |
Input / Output |
SATA | SATA3 (6Gbps) via chipset |
System BIOS |
BIOS Features | Plug and Play (PnP), APM 1.2, ACPI 5.0, SMBIOS 2.7, RTC (real time clock) wake up |
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
Front Panel |
LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
Drive Bays |
Internal | 2x 3.5" 6Gb/s SATA3 HDD/SSD |
Environmental Parameters |
Operating Temperature | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10to 35C (50to 95F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Non-operating Temperature: -40to 70C (-40to 158F) |
Electromagnetic Compatibility (EMC) |
Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| EN55022 - Emissions |
| EN55024 - Immunity |
| EN61000-3-2 - Harmonics |
| EN61000-3-3 - Voltage Flicker |
| CE - EMC Directive 89/336/EEC |
United States / Canada | FCC- Emissions (US) Verification |
| UL60950-1 - CSA/CUL 60950-1 |
Safety Compliance |
Germany | TUV |
Parts List - (Items Included) |
Cable | CBL-SAST-0639, CBL-SAST-0641 |
MicroBlade Sled | MCP-680-31403-0N |
Motherboard / Chassis | MBD-B1SL1-HF |
