| Motherboard |
| Motherboard | Super X10SLV-Q |
| Processor/Cache |
| CPU | Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i7/i5/i3, Pentium, Celeron processors |
| Single Socket H3 (LGA 1150) |
| Performance-Optimized with 84W TDP Processor |
| System Memory |
| Memory Capacity | 2x 204-pin DDR3 SODIMM slots |
| Supports up to 16 GB DDR3 non-ECC SODIMM |
| Memory Type | 1600MHz non-ECC DDR3 SDRAM 64-bit, 204-pin gold-plated SODIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5V, 1.35V |
| On-Board Devices |
| Chipset | Intel® Q87 Express Chipset |
| SATA | Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10 |
| Network Controllers | Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i217 + Intel® i210AT Controllers |
| Graphics | Intel HD 4600 Graphics, Processor Graphic |
| Input / Output |
| Serial ATA | Raid 0, 1, 5, 10 |
| 4x SATA 3.0 ports (6Gbps) including 1x mSATA |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports |
| USB | 2x USB 3.0 ports (rear) |
| 5x USB 2.0 ports (2 rear, 2 via headers, 1 type A) |
| Audio | HD Audio Front Panel Headers |
| Display | 1x DisplayPort, 1x HDMI, 1x DVI-I, 3 Independent Displays |
| DOM | SATA DOM (Disk on Module) power connector support |
| Security | 1 TPM 1.2 20-pin Header |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® III |
| Chassis |
| Form Factor | Mini Tower |
| Model | CSE-721TQ-250B |
| Dimensions and Weight |
| Height | 9.45" (240mm) |
| Width | 8.27" (210mm) |
| Depth | 11" (279mm) |
| Weight | Gross Weight: 15 lbs (6.8 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Network activity LEDs |
| Hard drive activity LED |
| System Overheat LED |
| Expansion Slots |
| PCI-E | 1x PCI-E 3.0 x16 slot |
| 1x Mini-PCIe with mSATA support |
| Drive Bays |
| HDD | 4x 3.5" Hot-swap drive bays |
| 2x 2.5" internal drive bays |
| Peripheral | 1x slim DVD-ROM drive bay (shared with 1x 2.5" internal drive bay) |
| Power Supply |
| Power Supply | 250W Flex ATX Multi-output Bronze Power Supply |
| AC Voltage | 100 - 240V, 50 - 60Hz |
| +5V | Max:14 Amp; Min:0.5 Amp |
| +12V | Max:18 Amp; Min:1 Amp @100V-240V |
| -12V | Max: 0.3 Amp |
| +3.3V | Max: 12 Amp Min: 0.3Amp |
| 5VSB | Max: 2.5 Amp |
| Certification | Bronze Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| Hardware BIOS Virus protection |
| PCI 2.3 |
| UEFI |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| APM 1.2 |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Operating Relative Humidity: 10% to 85% (non-condensing) |
| Non-operating Relative Humidity: 10% to 95% (non-condensing) |
| Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) |
| Product SKUs |

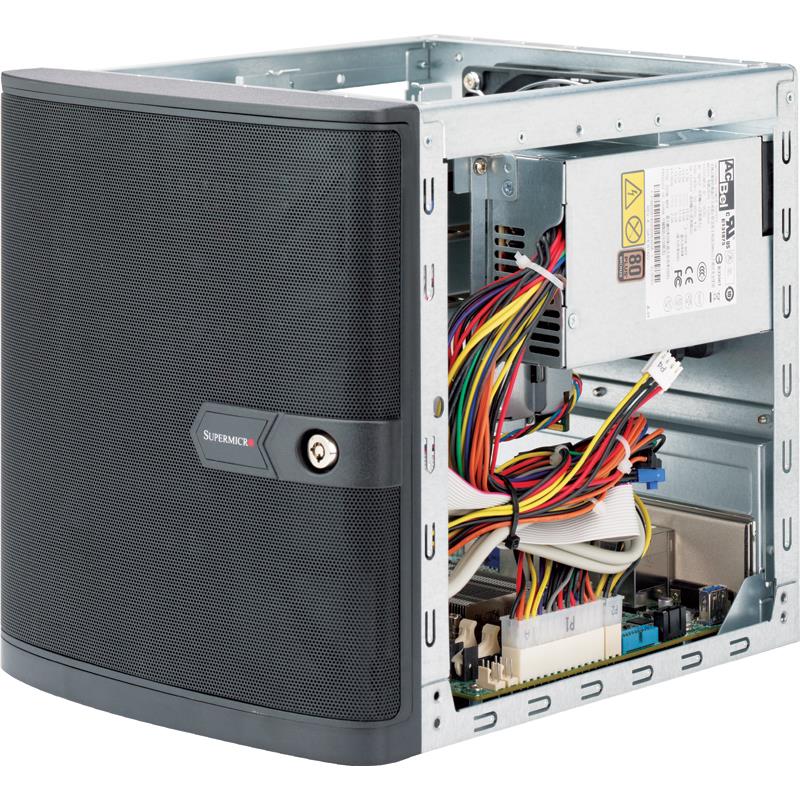

| Product SKUs | SuperServer 5028L-TN2 (Black) |
